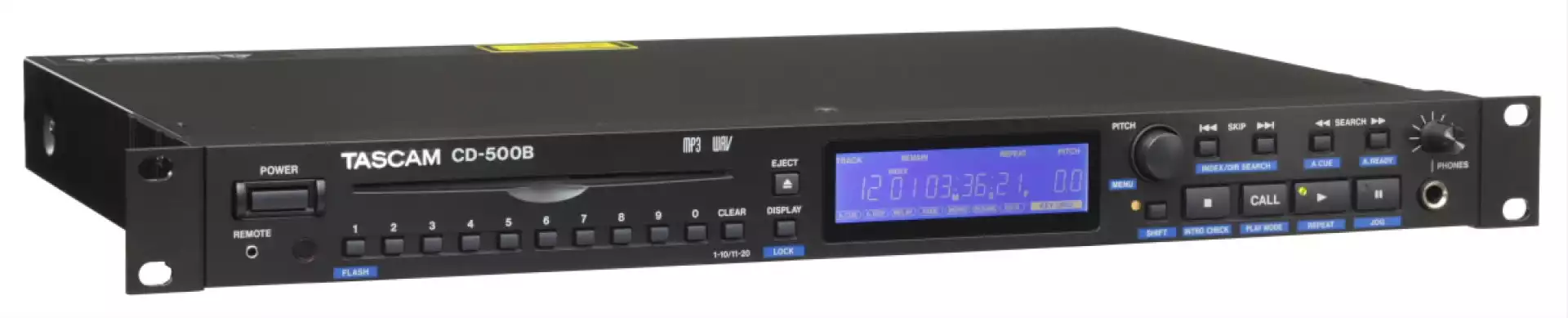

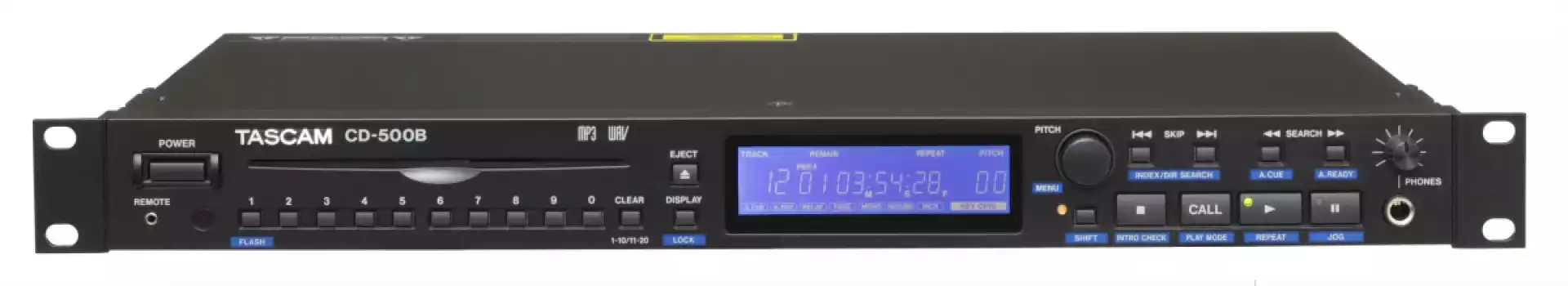

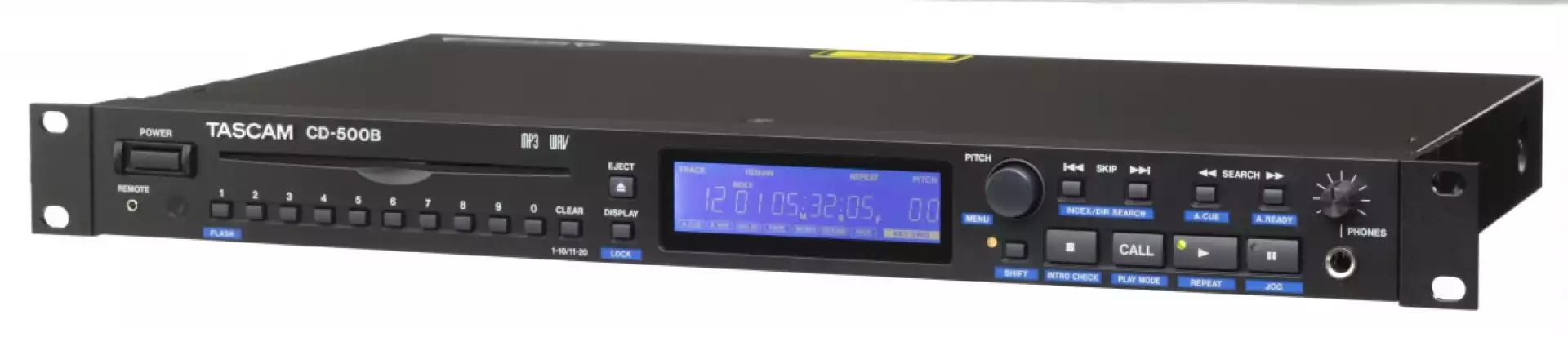

Single-rackspace CD Player with Balanced Out
CD-500B
A perfect solution for installation, touring, house of worship and anywhere else rackspace is limited
TASCAM’s best-selling line of single-rackspace CD players has been updated with the CD-500B. The CD-500B is a slot-loading CD player with a new transport, featuring brushless motors and an edge-grabbing mechanism to prevent disc damage. A front-panel 10-key pad is available for instant access to CD tracks, and flash start is available for instant playback.
An edge-grabbing loading drive prevents disc from damage
An edge-grabbing slot-in loading mechanism is employed as part of the disk loading method. This mechanism inserts CDs by holding the circumferential area of the disc, protecting the disc surface from damage.
A front-panel 10-key pad enables you to select a track while the flash start playback feature will instantly play the selected track the moment you push the button.

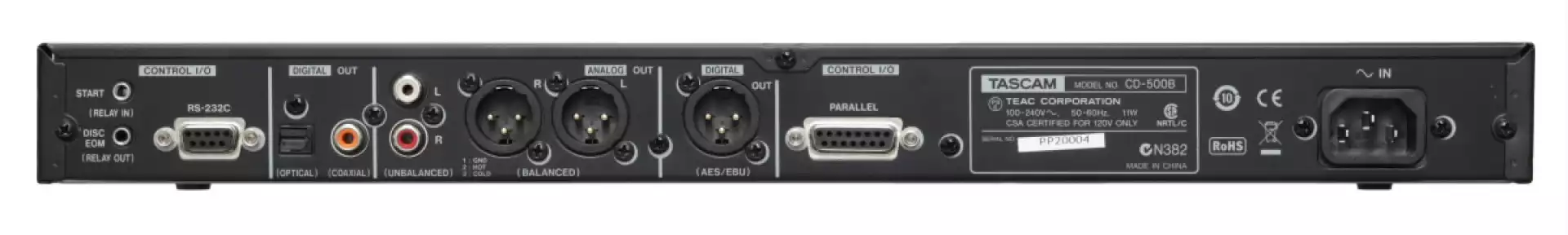

A professional-grade player with a rich variety of audio control I/O
For audio input and output, analogue unbalanced RCA input and COAXIAL and OPTICAL digital outputs are available.
The external control method includes a Parallel I/O, an RS-232C serial control and a separately-sold RC-3F foot switch.
Other additional features include an anti-shock memory that realizes stable playback, a panel lock function, and an eject-block function during playback.
These thorough features play a key role in crafting a highly reliable facility and transmission systems.
Relay playback on two or more units
By connecting two or more CD-500 units with 3.5mm remote cables, automatic continuous playback one after another and alternating playback between two units are supported.
Versatile CD player for all kinds of situations
The CD-500 that simultaneously establishes a high level of reliability and rich variety of functions is a standardized CD player model that can be used in a wide variety of purposes, including wedding ceremonies, event halls, fitness clubs, minute taking in meetings, PA/SR sites, and recording studios.
CD-500B
Features at a glance
Slot-loading mechanism
RCA unbalanced output
XLR balanced output
Optical and Coaxial S/PDIF digital outputs
XLR AES/EBU output
All, single, random, A/B and 99-track program play
Incremental play
Track elapsed, track remain, disc remain time display
Call function: return to last play start point
Intro check
Fade in/out (0 to 10 sec., in 0.5 sec. steps)
Power on play
Frame-accurate search
Skip back play
Activate or deactivate the wireless remote
Relay play with multiple units through 1/8" relay in/out jack
Index search (CD-DA discs) and directory search (MP3 discs)
Mono output
Resume
Fader start / Event start
EOM (End of Message)
WAV file (up to 48kHz/16-bit) and MP3 file (up to 320kbps VBR) playback
Headphone output
RS-232C and Parallel control
Wireless remote controller included
Foot switch input (for optional RC-3F foot switch)
Spec description
| Supported media | |
| CD | CD, CD-R, CD-RW (12cm CD only) |
| Playback file formats | |
| CD-DA | 44.1kHz, 16-bit |
| MP3 | 32k / 44.1k / 48k Hz, 32k to 320k bps and VBR (MPEG1/2 Audio Layer-3) |
| WAV | 32k / 44.1k / 48k Hz, 16-bit |
| Analog audio outputs | |
| UNBALANCED | |
| Connector | RCA Pin jack × 1 pair |
| Rated output level | –10dBV (0.32Vrms) |
| Maximum output level | +6dBV (2.0Vrms) |
| Output impedance | 1kΩ or less |
| BALANCED | |
| Connector | XLR 3-32 (1: GND, 2: HOT, 3: COLD) × 1 pair |
| Rated output level | +4dBu (1.23Vrms) |
| Maximum output level | +20dBu (7.75Vrms |
| Output impedance | 150Ω |
| Phones | |
| Connector | 1/4" (6.3mm) Stereo phone jack × 1 |
| Maximum output | 45mW + 45mW (THD+N 0.1% or less, into 32Ω load) |
| Digital audio outputs | |
| AES/EBUL | |
| Connector | XLR 3-32 (1: GND, 2: HOT, 3: COLD) × 1 |
| Format | IEC-60958-4 (AES/EBU) |
| Output Impedance | 110Ω |
| COAXIAL | |
| Connector | RCA Pin jack × 1 |
| Format | IEC-60958-3 (S/PDIF) |
| Output level | 0.5Vp-p |
| Output Impedance | 75Ω |
| OPTICAL | |
| Connector | TOS × 1 |
| Format | IEC-60958-3 (S/PDIF) |
| Control input/output | |
| RS-232C | |
| Connector | D-sub 9-pin × 1 |
| PARALLEL | |
| Connector | D-sub 15-pin × 1 |
| RELAY IN | |
| Connector | 1/8" (3.5mm) TS jack × 1 |
| RELAY OUT | |
| Connector | 1/8" (3.5mm) TS jack × 1 |
| REMOTE | |
| Connector | 2.5mm TRS jack × 1 |
| Power | AC 100 - 240V, 50/60Hz |
| Power consumption | 12W |
| Dimensions (W×H×D) | 19.0" × 1.8" × 11.8" / 482.6 × 44.9 × 300.5 mm |
| Weight | 8.2 lbs. / 3.7 kg |
| Operating temperature range | 41˚F to 104˚F / 5˚C to 40˚C |
| Permitted installation tilt | 30˚ or less |
| Backup memory | Playback mode, Playback time display mode, Auto-ready function on/off, Auto-cue function on/off, Repeat function on/off, Various menu settings (original key, eject block, auto-cue level, program, fade/in/out, relay playback, power on play, mono output, EOM time, incremental playback, pitch step, RS232C baud rate, skip back, remote control receipt, interval time, frame display, foot switch, user data, parallel mode) |
| Included items | AC power cord, Wireless remote control (RC-500), AA batteries × 2, a rack-mounting screw kit, Owner’s manual/warranty |
Audio performance
| Frequency response | 20Hz to 20kHz, ±0.5dB (JEITA) |
| Distortion | 0.005% or less (JEITA) |
| S/N ratio | 95dB or more (JEITA) |
| Dynamic range | 95dB or more (JEITA) |
| Crosstalk between channels | 95dB or more (1kHz JEITA) |
