NEUTRIK NAC3FCA powerCON
Šifra: 8160
960,00 rsd
800,00 rsd (Bez PDV-a)
Iznos rate:
Prikazana cena je za komad.
Garantujemo najnižu cenu!

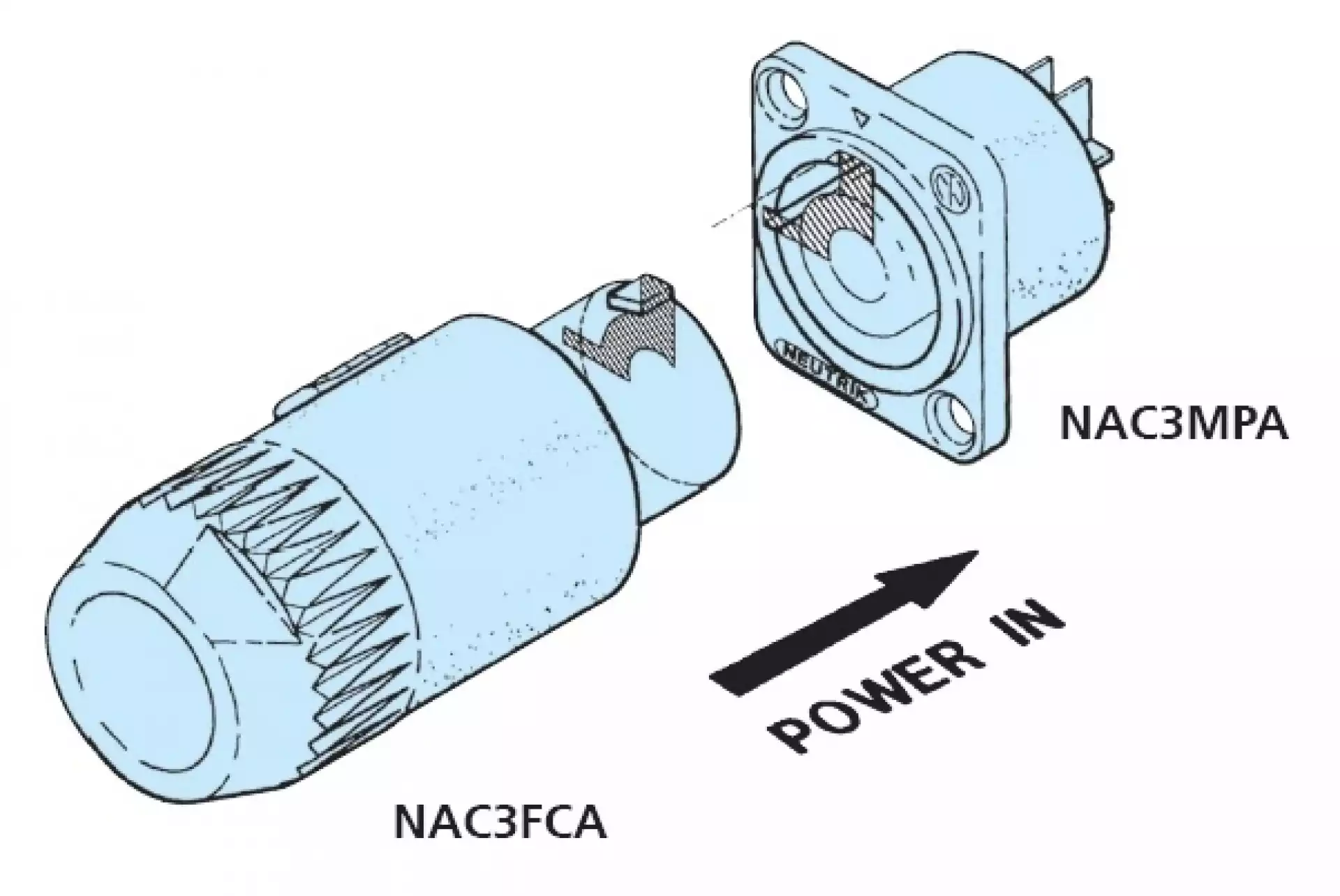

Lockable cable connector, power-in, screw terminals, blue
Lockable cable connector, power-in, screw terminals, blue
The powerCON is a locking 3 conductor equipment AC connector with contacts for line, neutral and pre-mating ground contact. It replaces appliance couplers wherever a very rugged solution in combination with a locking device is needed in order to guarantee a safe power connection.
Attention: The powerCON is a connector without breaking capacity, i.e. the powerCON should not be connected or disconnected under load or live!
Features & Benefits
- Locking 20 A / 250 V ac appliance coupler
- 3 contacts for line, neutral and premating safety ground

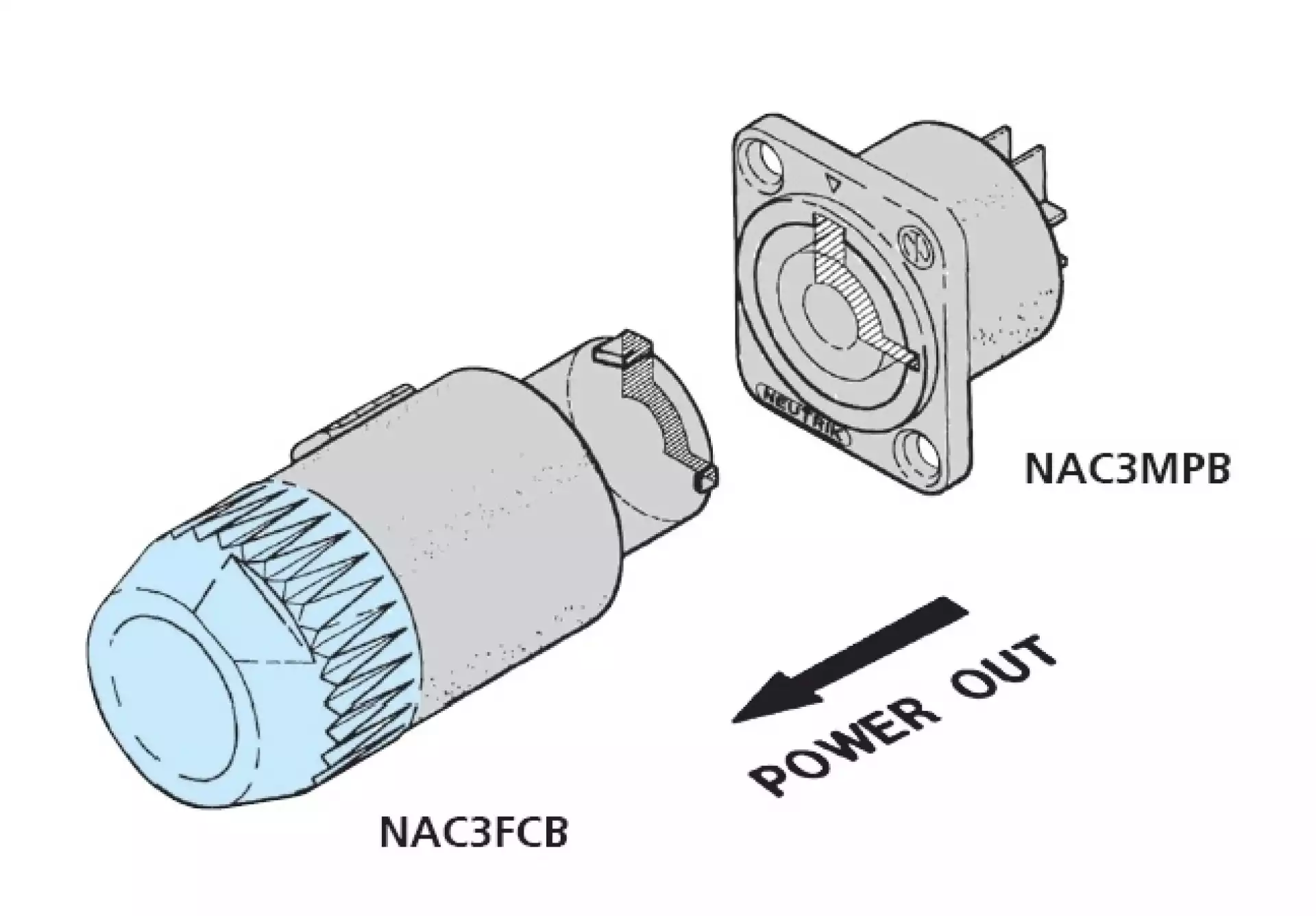

- Power-in (blue) and power-out (grey) versions with different keying to avoid the possibility of intermating
- Fast and easy twist lock latching system
- Extremely robust and reliable
- Ergonomic design
- User friendly latch design for easy handling
- Unique Neutrik chuck type strain relief
- UL, cUL recognized components
VDE certified
SEV approved - Branded with unique hologram - guarantees genuine and authentic Neutrik product
Product
Title
NAC3FCA
Gender
female
Electrical
Contact resistance
≤ 3 mΩ (inner)
Dielectric strength
4 kVdc
Insulation resistance
> 0.1 GΩ (after damp heat test IEC 68-2-30)
Number of electronical contacts
2 + PE
Rated current per contact
20 A rms
Rated voltage
250 V ac
Mechanical
Cable O.D.
6 - 15 mm
Lifetime
> 1000 mating cycles
Wiresize
2,5 mm²
Wiresize
14 AWG
Locking device
Quick Lock
Material
Contact plating
4 µm Ag
Contacts
Bronze (CuSn6)
Insert
Polyamide (PA 6 30 % GR)
Locking element
Zinc diecast (ZnAl4Cu1)
Shell
Polyamide (PA 6 30 % GR)
Strain relief
Polyacetal (POM)
Environmental
Temperature range
-30 °C to +80 °C
Product specific
Coding
A-type for power inlet (color coding blue)
