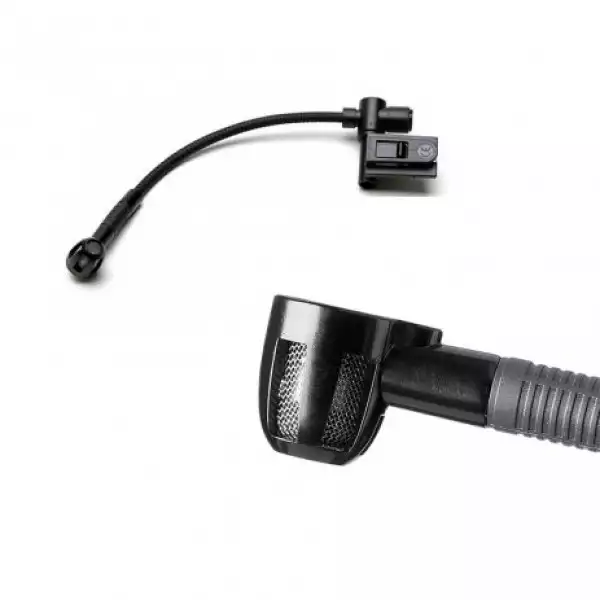

Cardioid instrument microphone with miniature mounting bracket
High mechanical-noise attenuation
Including wireless direct adapter for easy use with AKG pocket transmitters
Detachable microphone cable
Ideal for miking up accordions and guitar, piano, keyboard, or organ amplifiers


Lightweight cardioid miniature microphone for use on accordions, guitar speakers, piano and keyboard/organ cabinets. The included screws and double-sided, solvent-free adhesive pads make it easy to install the microphone on your instrument or amp exactly where you need it.
Using two C 516 MLs (one on the bass and one on the treble side) and an optional B 29 L battery power supply is an ideal way to mic up an accordion.
The C 516 ML is the only version available and can be used with the B 29 L battery power supply, AKG WMS Series bodypack transmitters, or the MPA V L adapter for external phantom powering. The unique adapter plate A 400 allows easy attachment of the AKG pocket transmitters.



Polar pattern
cardiod


Frequency range
60 Hz to 20 kHz


Sensitivity
5 mV/Pa (-46 dBV)


Max. SPL
130/132 dB SPL (bei k = 1 %/3 %)


Equivalent noise level
31 dB(A)


Signal/noise ratio (A-weighted)
63 dB


Impedance
<= 200 ohms


Recommended load impedance
>= 2000 ohms


Powering
<= 2 mA


Power requirement
B 29 L battery power supply, MPA V L phantom adapter, AKG WMS bodypack transmitters


Connector
3-pin mini XLR


Cable
1.5 m (5 ft.)


Finish
matte black


Dimensions
length: 235 mm (9.3 in.) (microphone only); max. width: 47 mm (1.9 in.)


Net weight
46 g (1.6 oz.) (microphone and cable)


Shipping weight
320 g (11.3 oz.)
