EN-CM6T6
EN54-24 certified 6" ceiling speaker

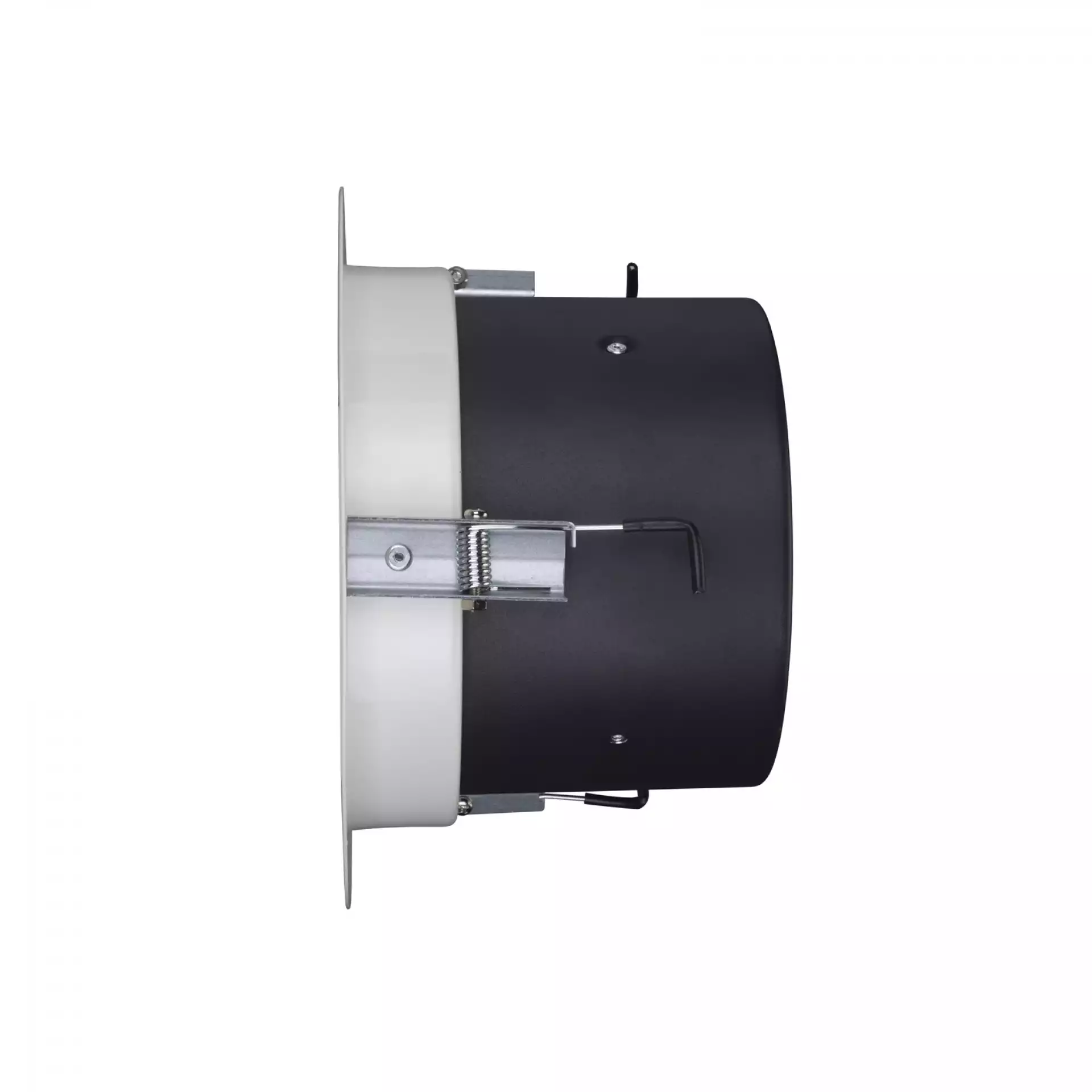

The EN-CM6T6 is a 6.5” built-in ceiling speaker made of powder coated steel (RAL 9010 equivalent), equipped with a high efficiency full range speaker and a multi tap 100 volt transformer, all certified according EN 54-24. The unit is equipped with a ceramic speaker line connector block, thermal fuse and a metal fire dome.
The installation of this speaker is easy thanks to the spring loaded clamps and the included PG16 cable gland. The speaker with its excellent intelligibility is a perfect budget oriented solution for background music, paging and evacuation systems messages.
This 100 volt loudspeaker is equipped with a high quality 1.5 – 3 – 6 watts 100 volt transformer.
| cutout | 199 mm | outside diam. | 220 mm |
| depth | 137 mm | innerdimension | 196 mm |
| ceiling thickness range | 1 - 60 mm | loudspeaker system | full range |
| woofer size | 6.5 inch | woofer cone material | coated paper |
| mounting system | 3 clamps | 100V transformer power taps | 6 - 3 - 1.5 watts |
| low impedance dynamic power | 6 watts | SPL 1W/1m | 93,9 dB |
| max SPL 1m | 101,7 dB | frequency response | 140 - 24 k Hz |
| main construction material | steel | IP rating | 50 |
| operating temperatures | -20°C to +80°C | applicable low impedance | no |
| applicable in 100V | yes | certificate ref | 1438/CPR/0351 |
| Vertical dispersion angle 1000 Hz | 180° | closest RAL colour (subject to deviations) | RAL9010 |
| Net weight product (kg) | 1.42 |
