REVAMP4240T is a professional 4-channel digital power amplifier with 4 x 240 watt output power @ 100 volt, but the unit is also bridgeable to 2 x 480 watts @ 100 volt. The unit incorporates a high efficient SMPS power supply and outputs with efficient Class D output topology.
REVAMP4240T is the ideal amplifier for applications with 4 zones in mono, 2 zones in stereo or even bridged dual mono or bridged stereo systems. This amplifier contains an intelligent variable speed cooling fan that only will be activated in case of emergency.

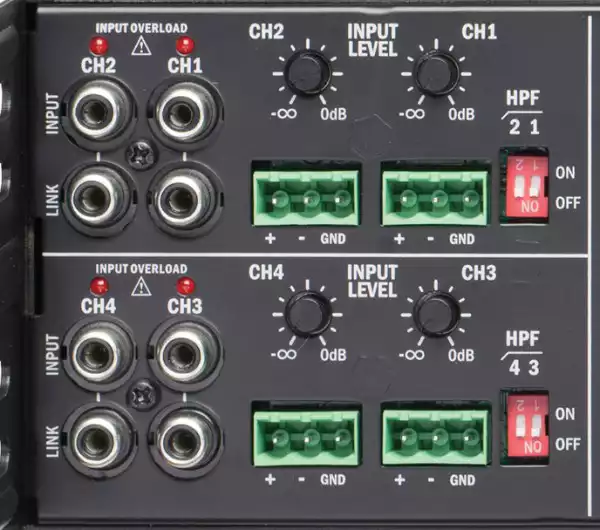

In order to match each input to its respective source the input sensitivity can be adapted to your needs. The input stage also features a build-in 250 Hz HP-filter to optimise the system for use on horn speakers whenever you would need this. Each pair of outputs can be bridged to give you 2 x 480 watts of output power!
The very intuitive front display shows what is going on with one blink of an eye. The output power is constantly under control thanks to our own made limiter that prevents annoying pumping limiter sound but yet keeps the system fully under control and you still have that dynamic sound.
Ease of use, high-tech, reliability and a wide versatility has never been as cleverly combined as in this REVAMP4240T amplifier.
dynamic output power 4 ohms 4 x 240 watts RMS output power 4 ohms 4 x 240 watts
dynamic output power 8 ohms 4 x 120 watts RMS output power 8 ohms 4 x 120 watts
dynamic output power bridged 8 ohms 2 x 480 watts output power RMS bridged 8 ohms 2 x 480 watts
output power RMS 100 volts 4 x 240 watts output power RMS bridged 100 volts 2 x 480 watts
minimum impedance load per channel 4 ohms minimum impedance load bridged per channel 8 ohms
power consumption (max) 1050 watts 19" (483 mm wide) rack mounting Yes
height- rack units (1U=44 mm) 2 U depth (build in) 330 mm
depth (incl front) 338 mm power supply 115 - 230 VAC volts
Power supply technology 2 x switching mode power supply output voltage tappings 100 - 70 - 50 - 35 - 4 Ohm watts
output channels 4 line input balanced 4
line input unbalanced 4 Channel separation > 68 dB @ 1 kHz
Power amp topology Class-D frequency response (in Hz) 50 - 20K
cooling system fan applicable in 100V Yes
applicable low impedance Yes Net weight product (kg)
