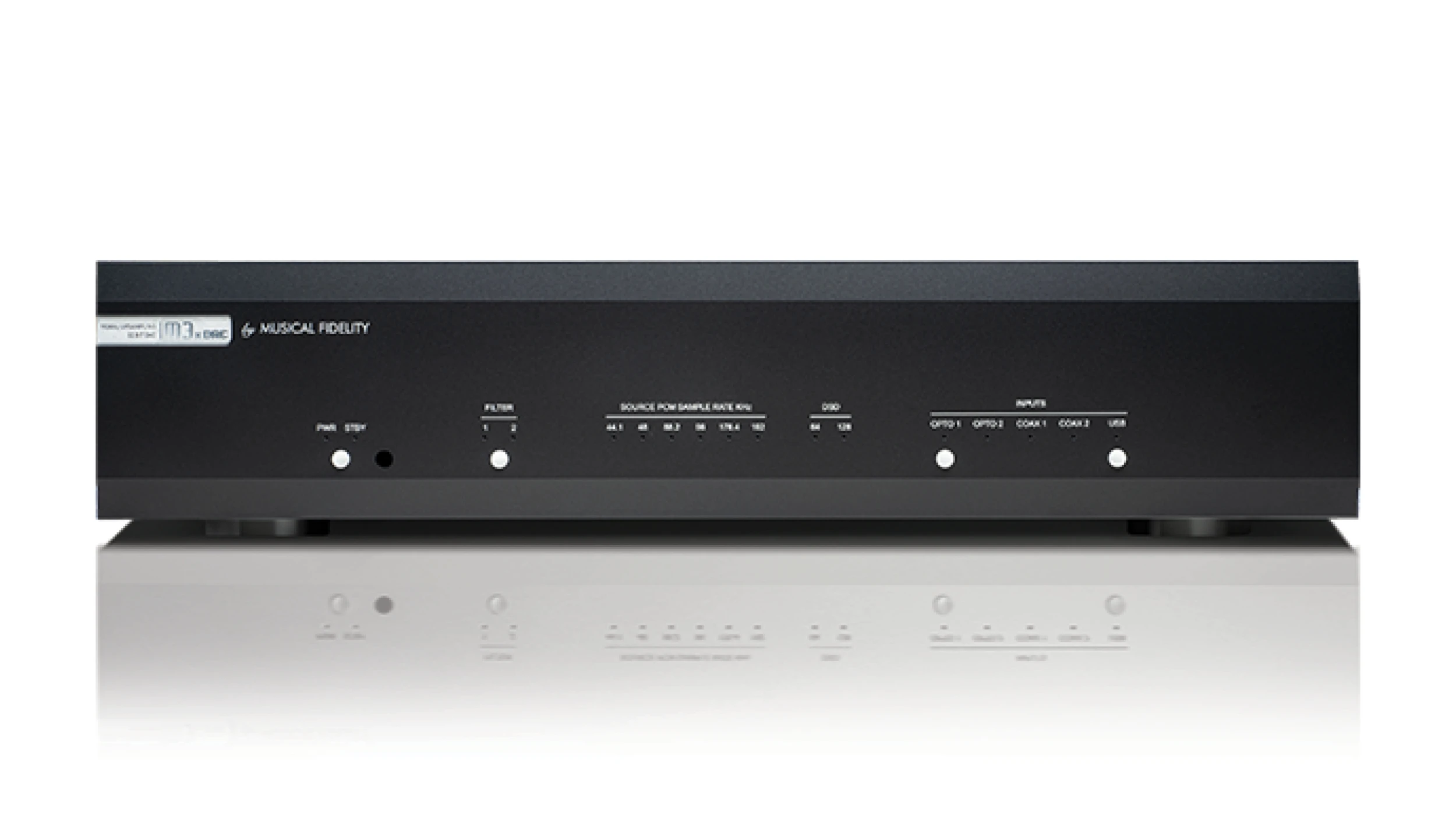

Musical Fidelity M3X DAC Black
The M3x DAC is a 32bit/192kHz Upsampling DAC - High-End made affordable.
Our M3x DAC is our new entry in affordable high-end DACs. With its technical prowess, superb technical performance, careful PCB design in Musical Fidelity tradition, meticulous power supply layout, and excellent build quality, the new M3x DAC offers a truly outstanding modern high-end DAC design.a
DAC
• DAC Chip: PCM1795
• Sample rate converter: SRC4392
• Total correlated jitter: < 48 picoseconds peak to peak
• Linearity: < 0,2dB down to -100dB
• Frequency response: -0,2dB at 20Hz, 0,1dB at 20kHz; 1,5dB at 70kHz
• Channel separation: < -115dB 10kHz @ 0dBFS
• Signal to noise: >107dB “A”- wtd 1kHz @ 0dBFS
• Total harmonic distortion: < 0,005% at 1kHz @ 0dBFS
Digital Inputs
• 2x Coax, up to 24bit 192kHz (stereo PCM)
• 2x Optical, up to 24bit 192kHz (stereo PCM)
• 1x USB Audio Class 2.0, ‘USB B’; up to 32 bit 192kHz (stereo PCM), DSD 256 (stereo DoP and native)

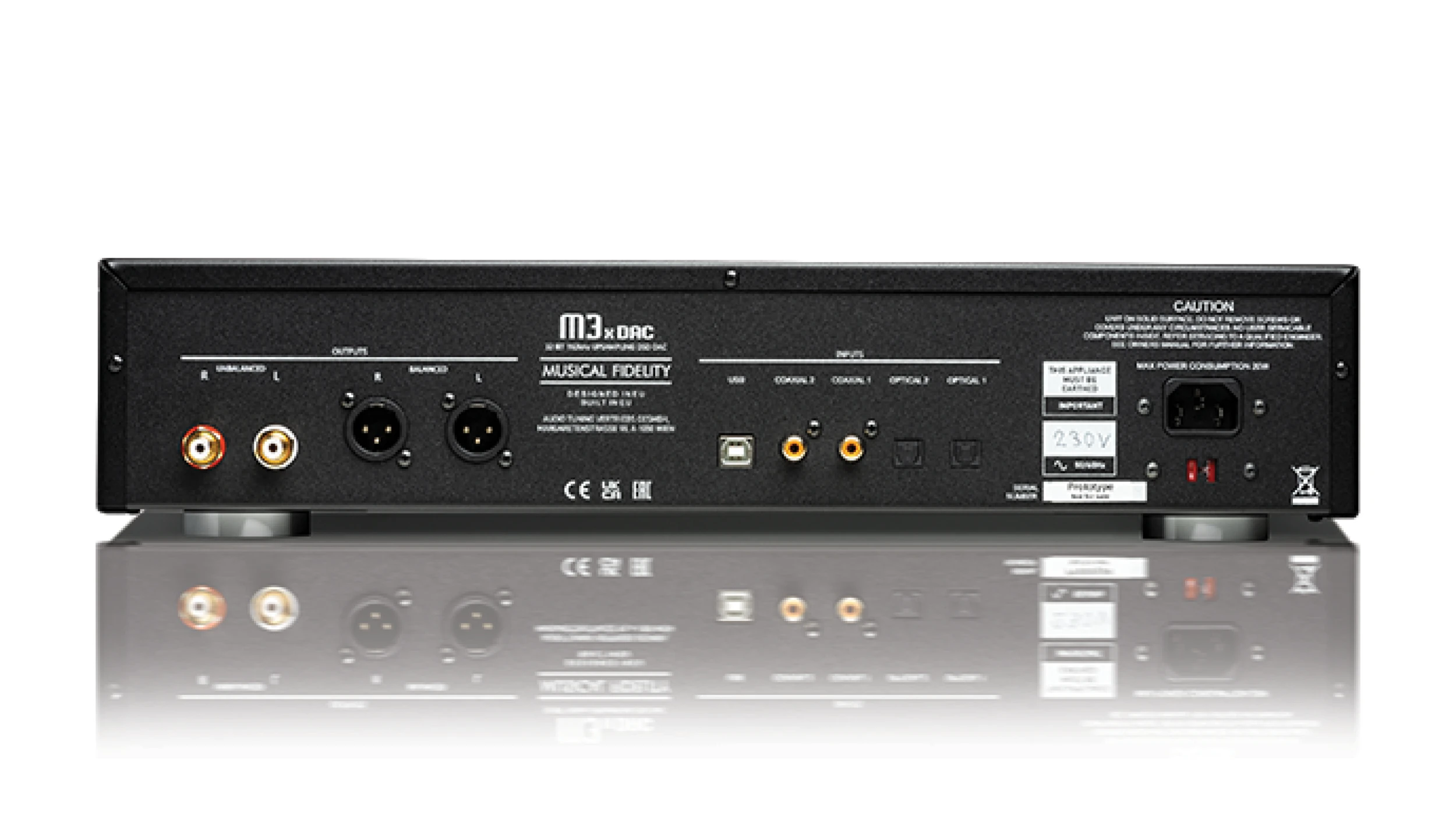

Analogue Outputs
• 1 pair line level RCA fix/var @ 2V RMS at 0dBFS
• 1 pair line level XLR fix/var @ 4V RMS at 0dBFS
• Output impedance: < 50 ohms
General Information
• Dimensions (WxHxD): 440 x 100 x 363mm
• Main voltages: 230V/115V Internally set or 100V optional
• Max. Consumption: 15W, <0.5W in standby
• Weight: 6.8kg
