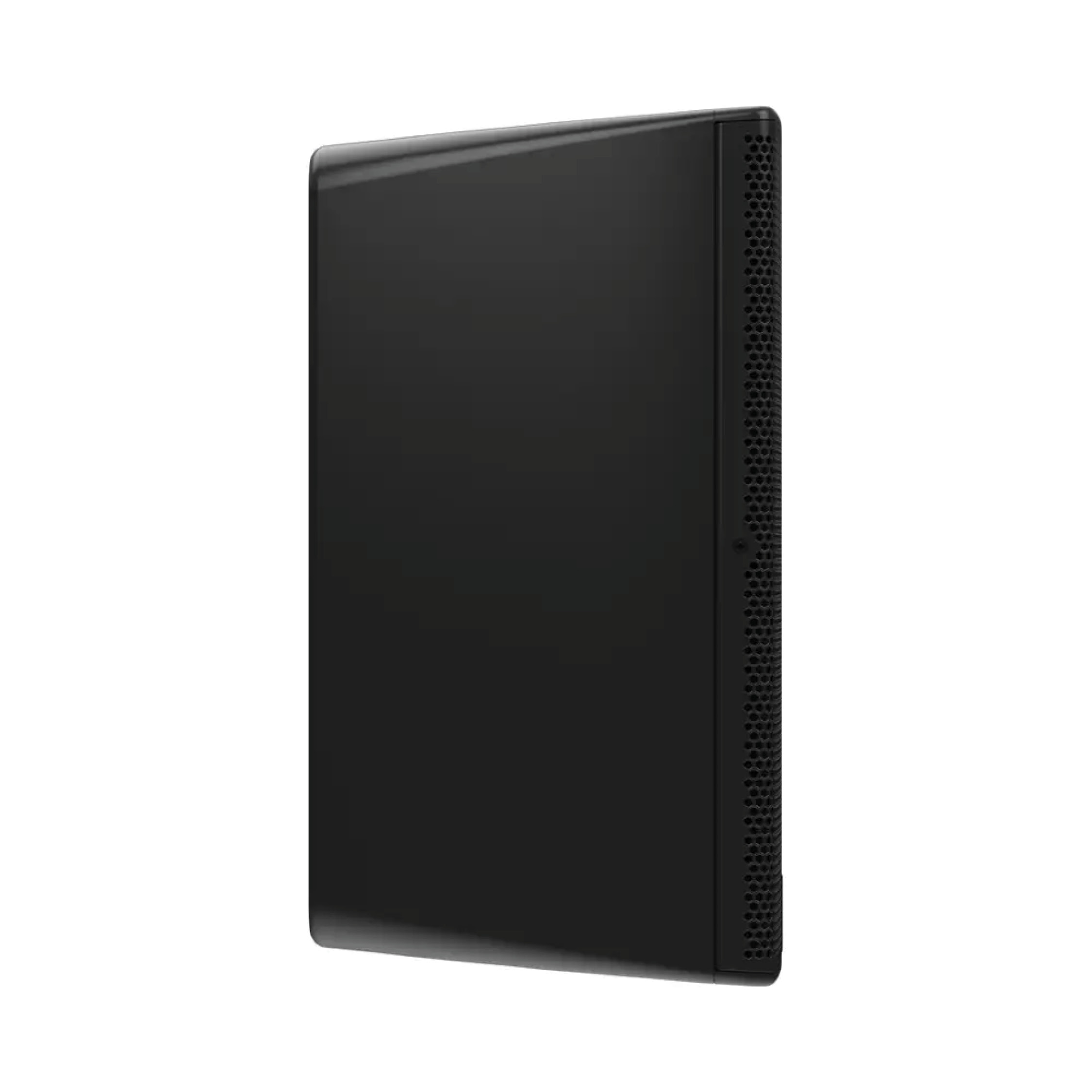

MARTIN AUDIO A80T Black - Pasivna Zvučnik
8" Passive Two-way On-wall Loudspeaker with 70/100V Transformer
The ADORN A80T is a two-way passive speaker with an elegant design that is perfect for architectural environments that require high fidelity sound from an unobtrusive, compact enclosure. It brings class-leading performance, reliability and value to a wide range of commercial sound applications — from retail outlets, bars and restaurants to corporate offices and convention centres.
Features
• Contemporary, unobtrusive design
• High output capability
• High fidelity sound
• 70V/100V line transformer
• Low and high-frequency overload protection
• Vertical or horizontal orientation
• 90° x 50° coverage
• IP54 with optional waterproof connector cover
• 5-year warranty
Applications
• Retail outlets
• Cafes, bars and restaurant chains
• Hotels and convention centres
• Educational facilities
• Corporate offices
Specification
TYPE: Compact passive two-way system, front ported bass reflex
FREQUENCY RESPONSE (1): 63Hz-17kHz ± 3dB -10dB @ 50Hz
DRIVERS:
• LF: 8” with 2” high-temp voice coil, ferrite motor system
• HF: 1” with 1” exit polymer dome compression driver
RATED POWER (2): 200W AES, 800W peak
RECOMMENDED AMPLIFIER: VIA2502 or VIA5004 (or VIA5002 for70V/100V line)
SENSITIVITY(4): 91dB/1W/1m
MAXIMUM SPL (9): 120dB peak, 126dB peak with crest factor 4
NOMINAL IMPEDANCE: 8Ω
DISPERSION (-6dB): 90° H x 50° V
CROSSOVER: 2.3kHz passive (LF and HF auto-resetting fuses)
TRANSFORMER TAPS:
• 70V: 60/30/15/7.5W
• 100V: 60/30/15W
RECOMMENDED HIGH-PASS FILTER: 40Hz 24dB/oct (8 ohm), 60Hz 24dB/oct (Transformer)
ENCLOSURE: ABS, UL 94V-0 rated
FINISH: Black or white
GRILLE: Perforated steel

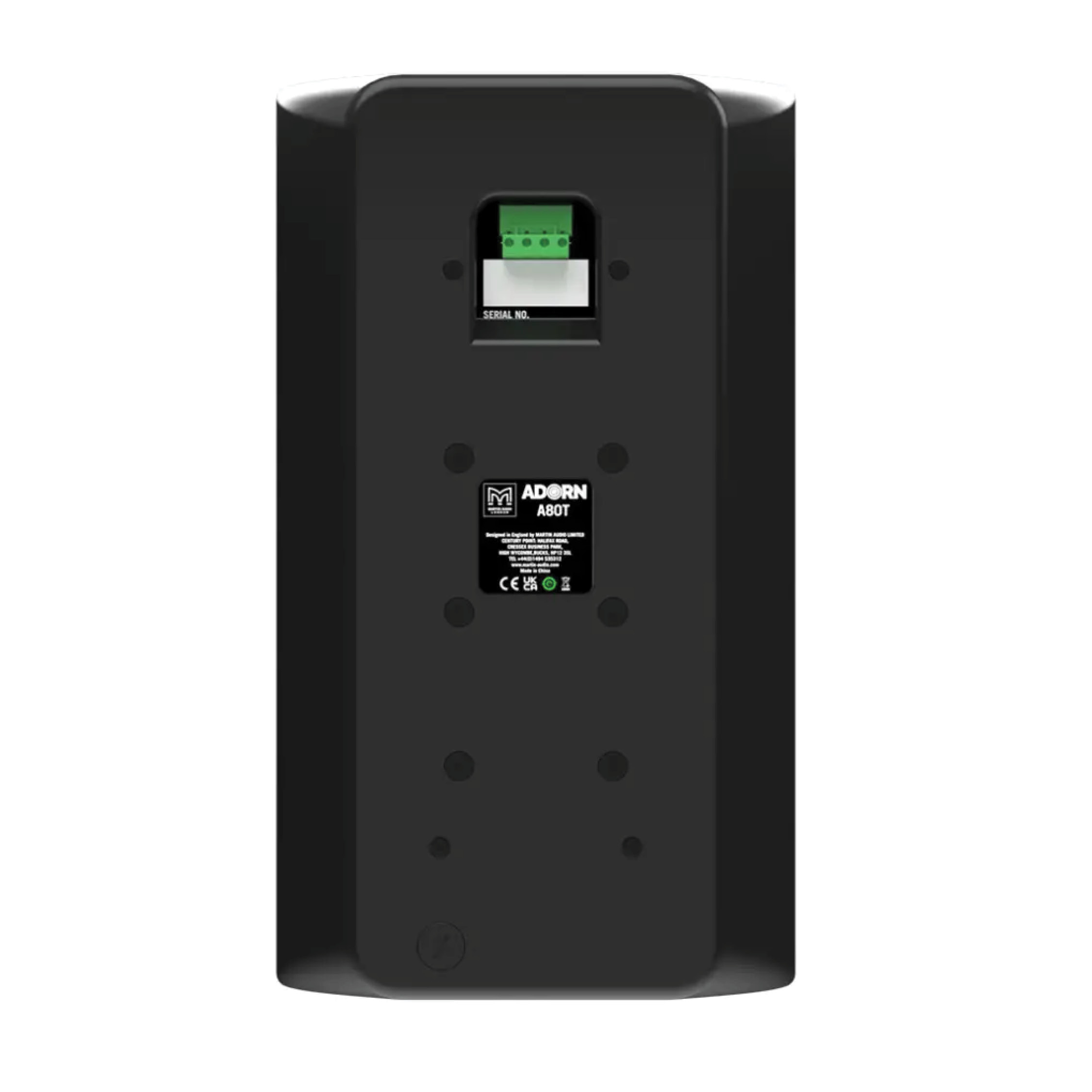

CONNECTORS: Low profile 13A push-lock
FITTINGS: 6 x M6 inserts for wall bracket WB6/8 supplied with speaker or optional ceiling bracket CDDCB6/8 (landscape only, impacts dispersion)
DIMENSIONS EXCL. BRACKET:
• (W) 246mm x (H) 421mm x (D) 233mm
• (W) 9.69in x (H) 16.56in x (D) 9.18in
WEIGHT: 9.08kg (20.02lbs)
IP RATING: IP54 compliant when used with optional weatherised connector cover ASF09007
