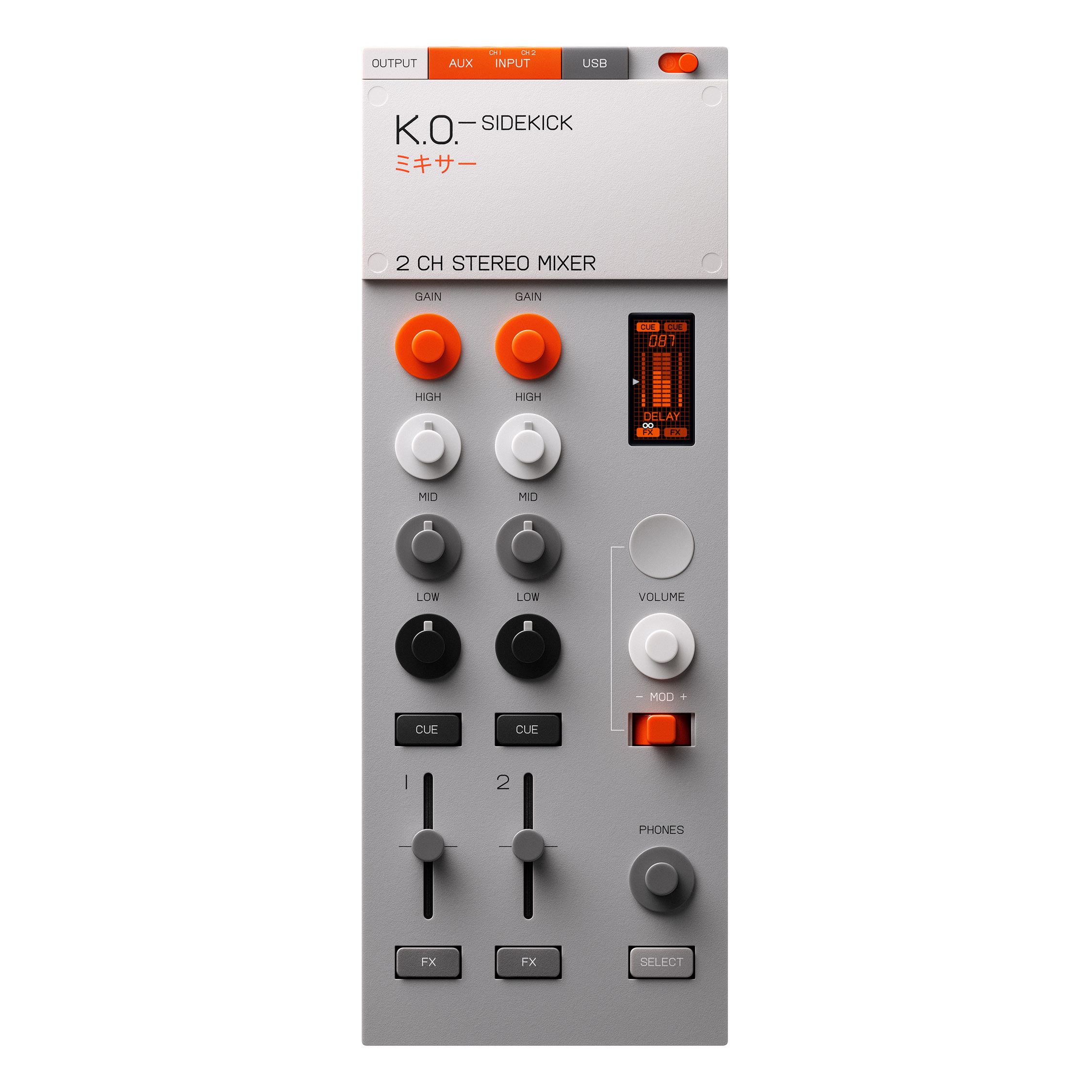

Teenage Engineering EP-136 K.O. sidekick
Â
The power companion
The plan was to build a mixer for the K.O.ii. but it became more of an effect-box with a built-in sequencer. Quite cool actually. see it as a dj mixer with a 2-bar looping effects-automator, or whatever you wanna call it. The perfect companion for live-remixing your beats. Making them even more you. so... a mixer, an effect box, a sequencer. We call it the K.O.–SIDEKICK.
Highlights
• 2 stereo channel strips
• 1 stereo aux, for a third “session” input
• usb audio interface / sound card
• dedicated controls for all params
• configurable EQ style (dj vs. studio)
• cue output for previews and sends
• dual fx with expressive controls
• dual channel beat-match
• tap-fx sequencer™Â
• ep series form factor
• powered by 2xAAA batteries, or USB-C
• high resolution custom LCD color screen
• pressure sensitive force pad
• high resolution mod stick
• 48khz / 24-bit audio processing
Dimensions and weight
• 240 mm x 88 mm x 16 mm
• 9.45" x 3.46" x 0.63" inches
• 300g / 10.6 oz
Audio input (ch1, ch2)
• impedance: 10k
• max level: 8dBu 2Vrms
• SNR: 105dBA (typical)
Audio input (aux)
• impedance: 7k
• max level: 8dBu 2Vrms
Audio output (main, cue)
• max level: 1.4Vrms
• SNR: 108dBA (typical)
Usb audio 2.0 (high-speed)
• 8ch in
• 4ch out
USB MIDI (INCL. CONTROLLER MODE)
