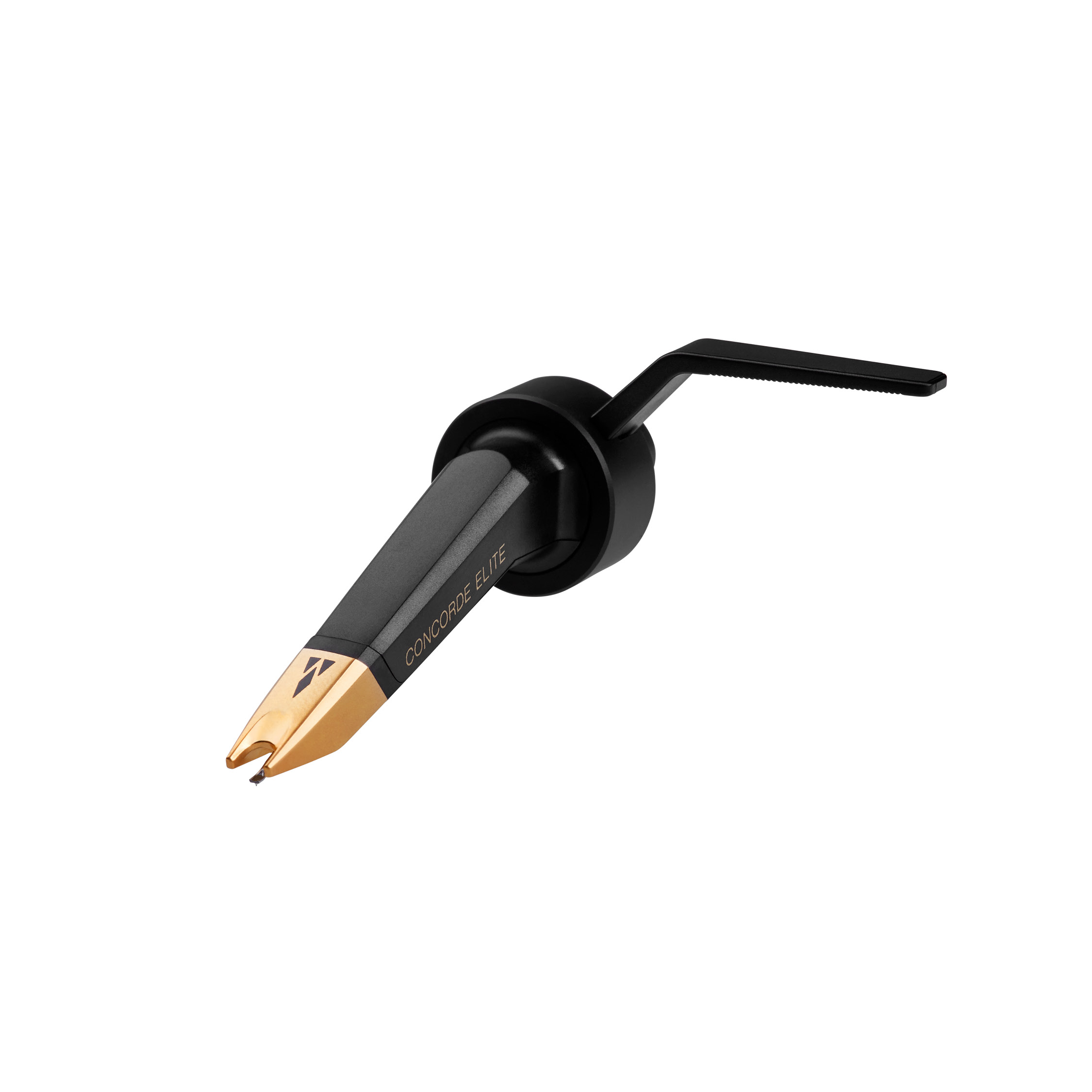

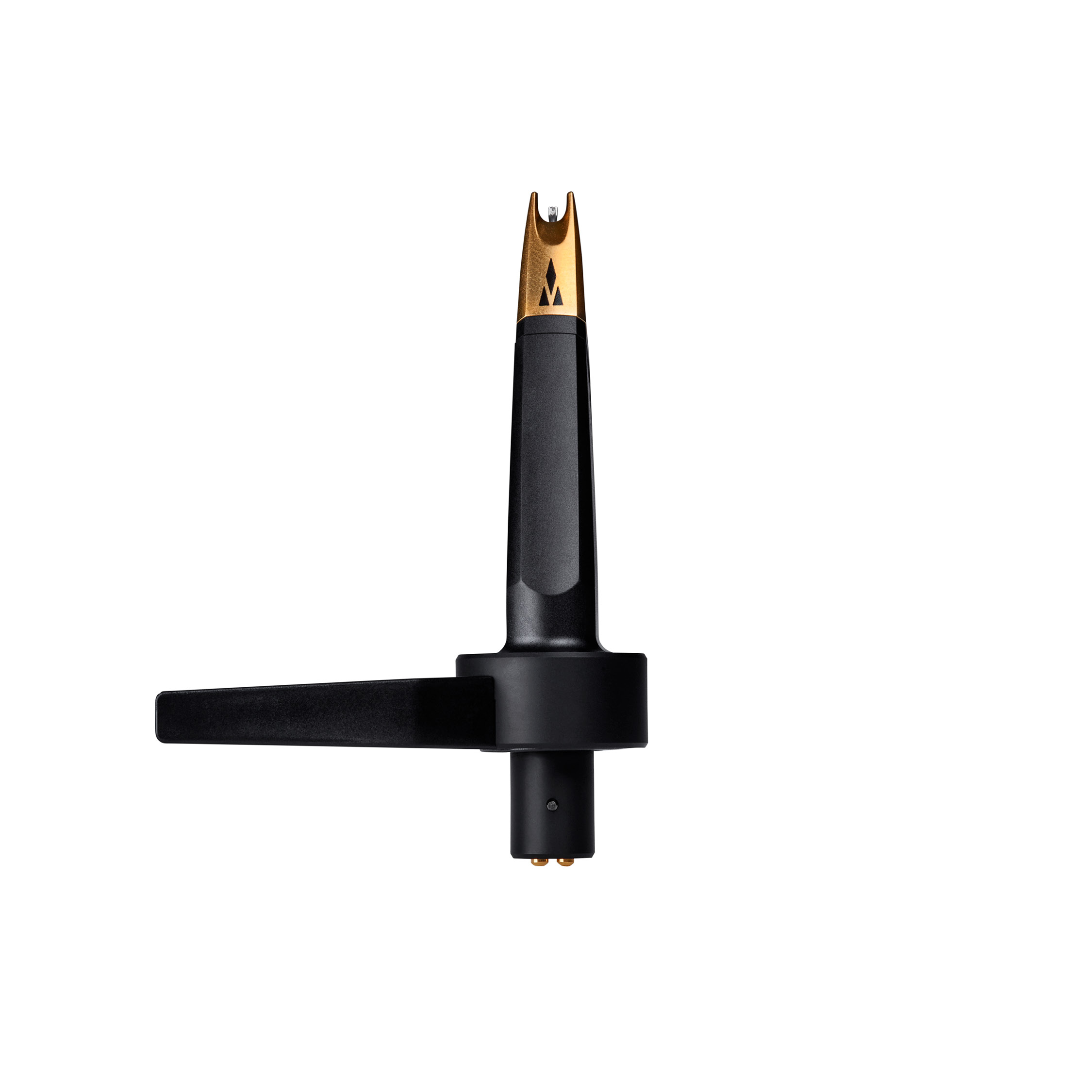

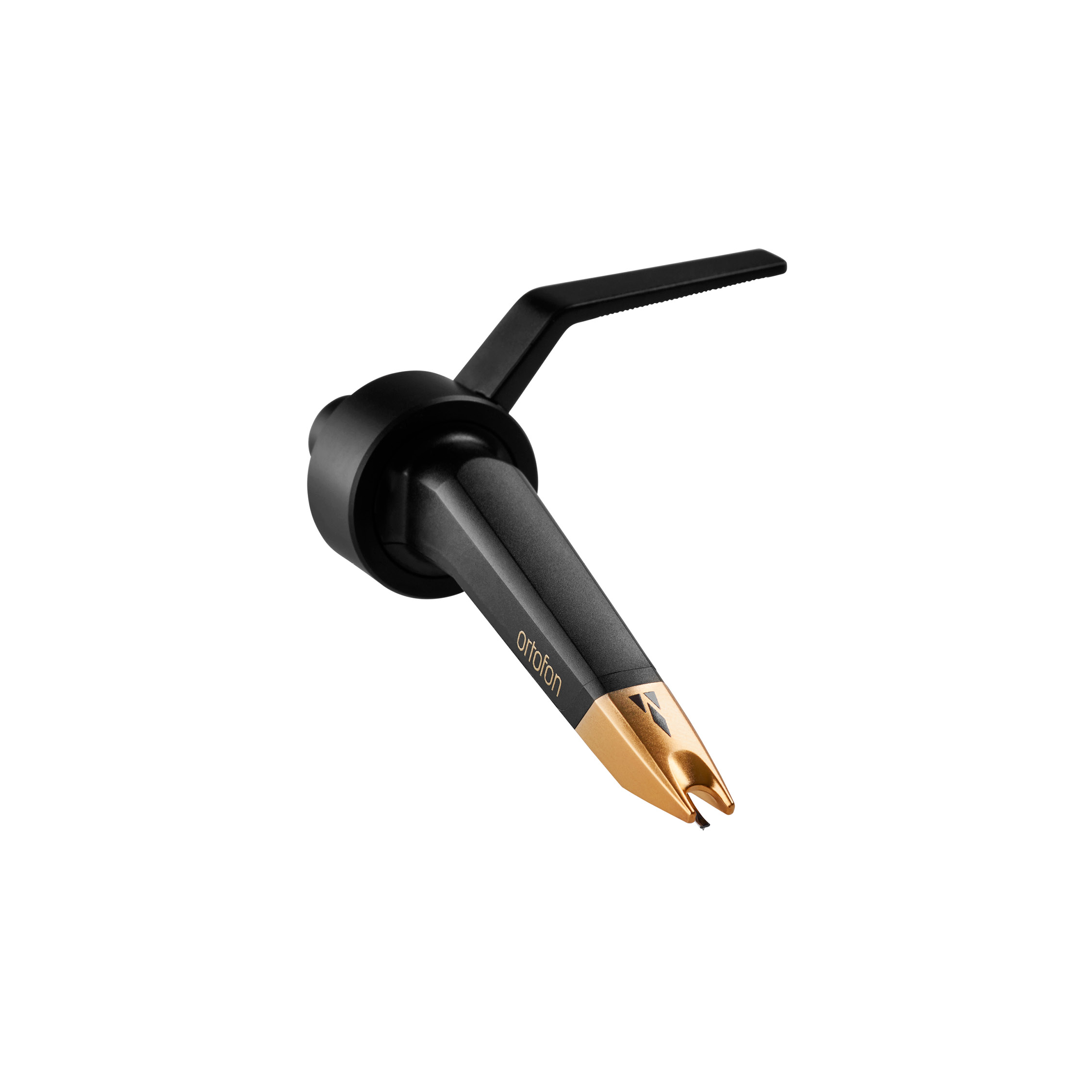

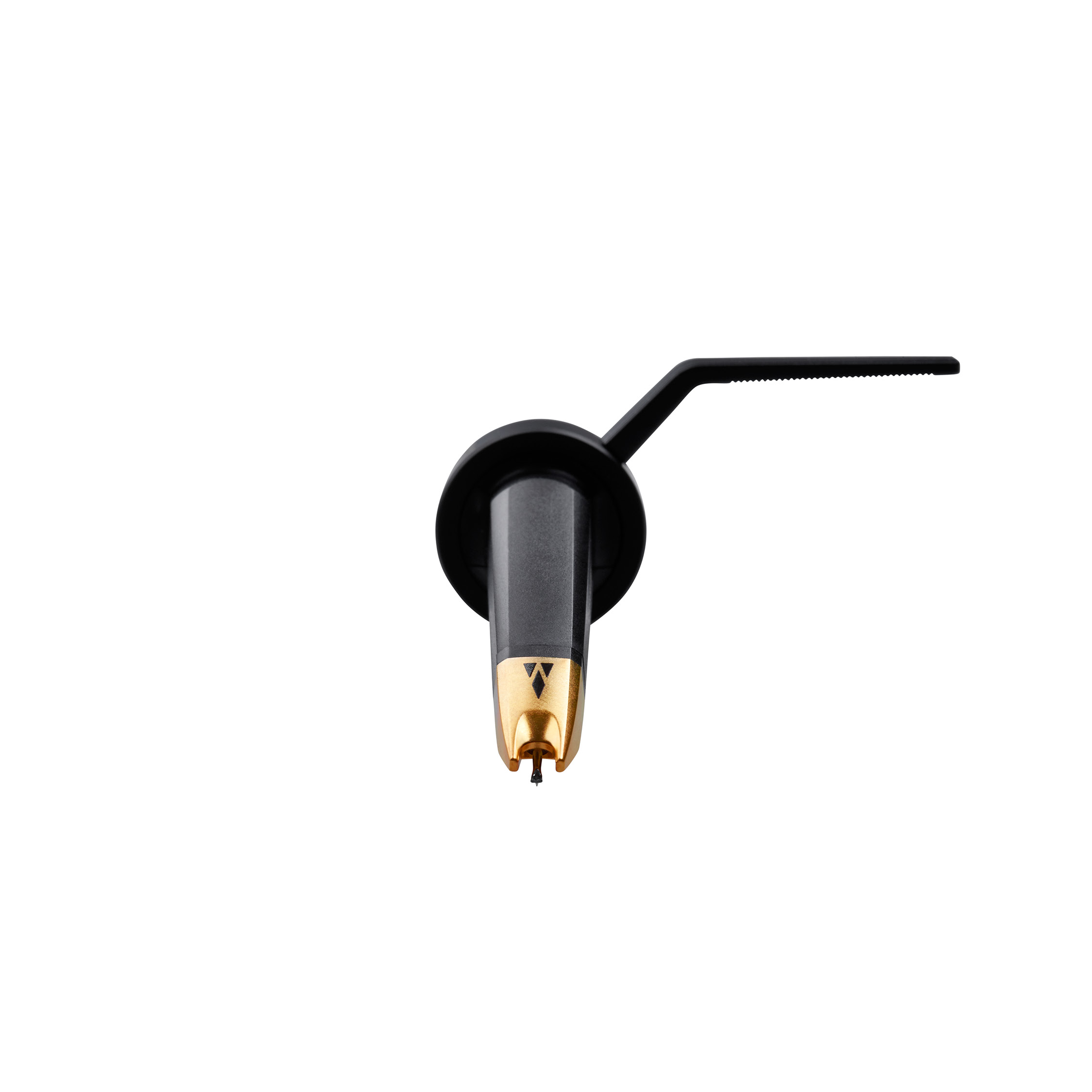

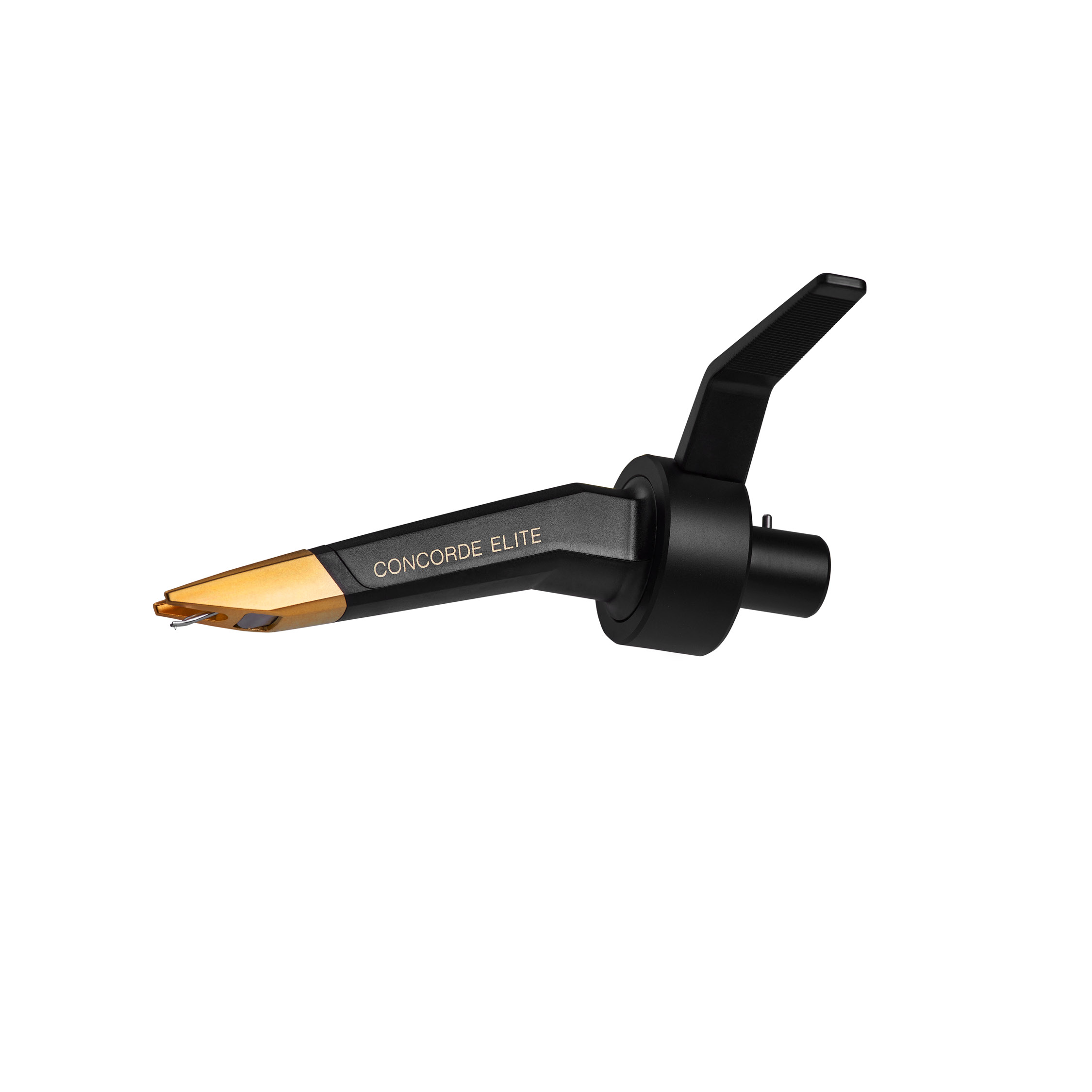

Ortofon Concorde MKII Elite
A limitless Experience
The Concorde ELITE is a premium Moving Magnet cartridge, based on the legacy of the Ortofon Concorde MkII Series. Owing to the number of component upgrades, the ELITE achieves a new level of sound quality, not previously found in DJ-categorized cartridges.
Channel balance at 1 kHz: 1 dB
Output voltage at 1 kHz, 5cm/sec: 8,5 mV
Channel separation at 1 kHz: 25 dB
Tracking ability at 315 Hz: 100 μm
Compliance, dynamic, lateral: 13 μm/mN
Cantilever material: Aluminium
Stylus type: Nude Elliptical diamond
Stylus tip radius: r/R 8/18 μm
Tracking force range: 2.0-4.0 g
Tracking force, recommended: 3.0 g
Tracking angle: 20°
Internal impedance, DC resistance: 1.2 kOhm
Recommended load impedance: 150-400 pF
Cartridge colour: Black/Gold
Cartridge weight: 18.5 g
Recommended load resistance: 47 kOhm
Internal inductance: 800 mH
