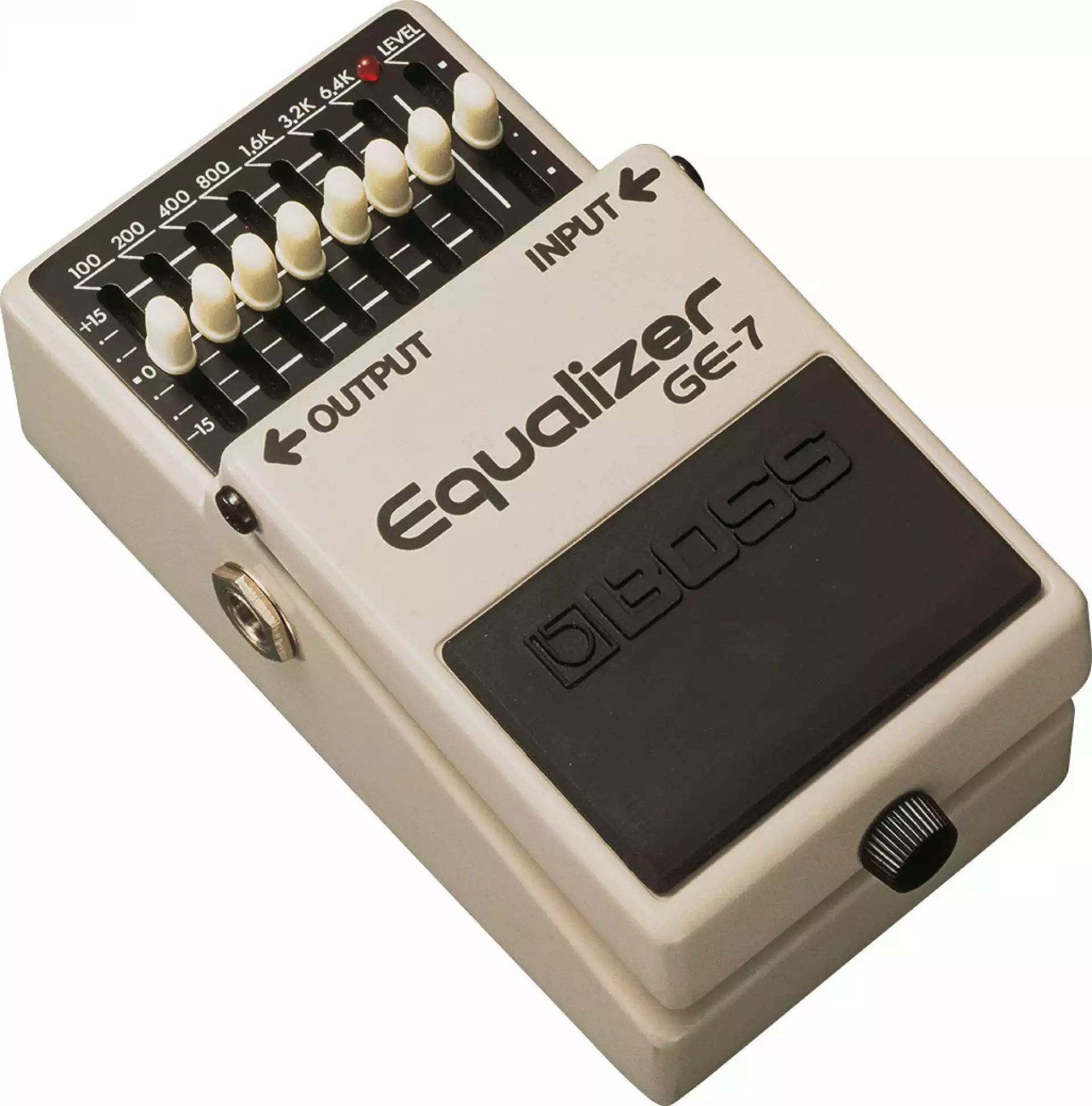

Boss GE-7 Ekvilajzer
The classic GE-7 Equalizer is a pedalboard staple for precise tone sculpting. With seven frequency bands optimized for guitar, this essential utility tool allows you to instantly refine your sound and overcome tonal obstacles while performing. The independent level control boosts or cuts the overall signal, offering extended versatility. From enhancing the character of guitars, amps, and pedals to tackling feedback and problem frequencies, the GE-7 does it all.
Specifications
Nominal Input Level -20 dBu
Input Impedance 1 M ohm
Nominal Output Level -20 dBu
Output Impedance 1 k ohm
Recommended Load Impedance 10 k ohm or greater
Bypass Buffered bypass
Controls
Level Control knob
Equalizer Control knob
100, 200, 400, 800, 1.6 k, 3.2 k, 6.4 kHz
Pedal switch
Indicator CHECK indicator (Serves also as battery check indicator)
Connectors
INPUT jack: 1/4-inch phone type
OUTPUT jack: 1/4-inch phone type
DC IN jack
Power Supply
Carbon-zinc battery (9 V, 6F22)
Alkaline battery (9 V, 6LR61)
AC adaptor (PSA series: sold separately)
Current Draw
30 mA
Expected battery life under continuous use
Carbon: Approx. 9 hours
Alkaline: Approx. 19.5 hours
*These figures will vary depending on the actual conditions of use.
Accessories
Leaflet ("USING THE UNIT SAFELY," "IMPORTANT NOTES," and "Information")
Carbon-zinc battery (9 V, 6F22)
Options (sold separately)
AC adaptor: PSA series
Size and Weight
Width 73 mm
Depth 129 mm
Height 59 mm
Weight (including battery) 400 g
