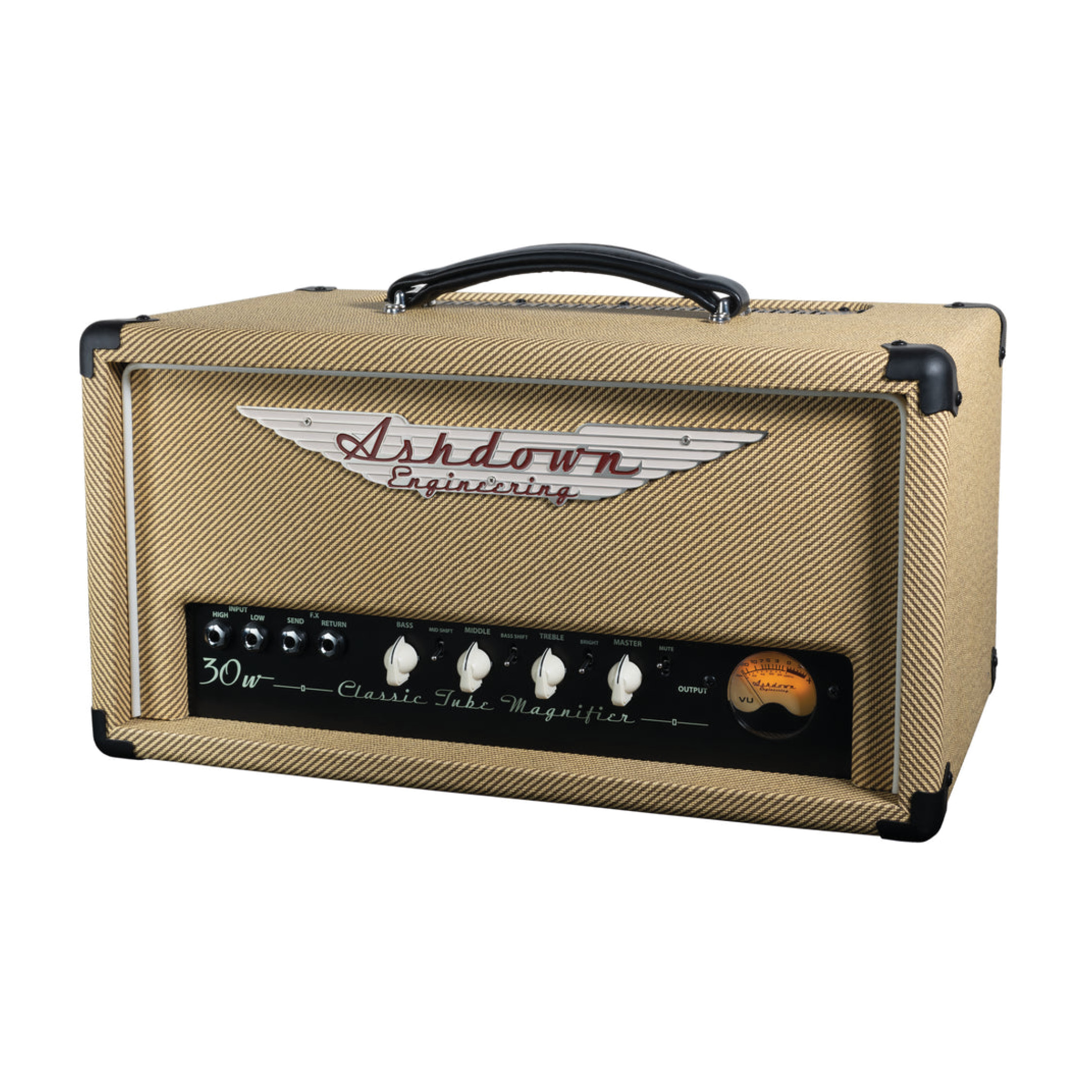

Ashdown CTM-30-TWEED 20th Anni
The CTM-30 Tweed delivers 30 watts of rich all-valve tone in a stylish tweed finish, perfect for recording sessions and smaller gigs. With a balanced DI output, front-mounted FX loop, and versatile EQ control.
Offering a classic warmth and flexibility, including Bass Shift, Mid Shift, and Bright Switching, the CTM-30 Tweed proves that valve power never goes out of style.
POWER
• Power Output: 30 Watts (all-valve)
• Frequency Response: 30Hz – 16kHz
• Power Tubes: 4 × EL84
• Preamp Tubes: 1 × ECC83, 1 × ECC82
• Impedance: Minimum load 4Ω
CONNECTIVITY & I/O
• Speaker Outputs: Jack sockets (4Ω and 8Ω)
• High Instrument Input: 450mV
• Low Instrument Input: 150mV
• DI Output: Line level, –1k
• Effects Send: Valve-driven instrument level
• Effects Return: Valve recovered
PERFORMANCE
• EQ: Passive Bass, Middle, Treble rotary controls
• Additional Tone Shaping: Bass Shift, Mid Shift, Bright switch
• Circuit: Passive EQ section (interactive, no sound when all controls at zero)
• Tonal Range:
Classic fat bass warmth
Contemporary valve punch with harmonic richness
• Designed for: Studio recording, intimate gigs, and DI integration
