Output Power
• 2000 W
Drivers
• Low-Frequency: 8.0” (203 mm) driver, 2.0” (50 mm) high-temperature voice coil.
• High-Frequency: 1.0” (25 mm) exit ceramic driver with 1.4” (35 mm) coil.
Crossover Frequency
• 2 kHz
Maximum SPL
• 130 dB (peak) dB-SPL @ 1 m
Frequency Response
• 62 Hz – 20 kHz (+/-3 dB)
Frequency Range
• 52 Hz – 20 kHz (-10 dB)
Horn Coverage
• 90° horizontal x 60° vertical (nominal)

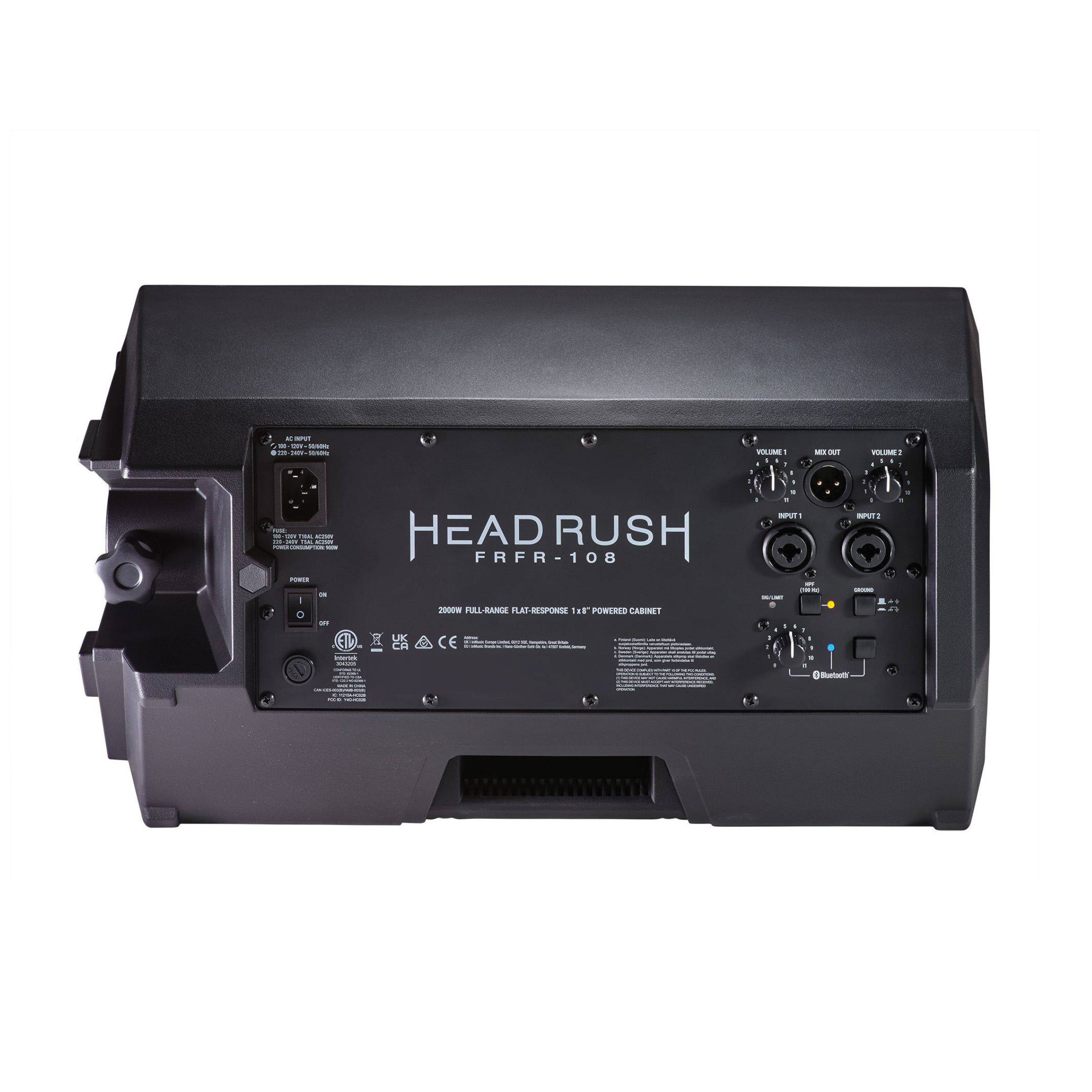

Connectors
• (2) XLR+1/4” (6.35 mm) TRS combo inputs (Balanced)
• (1) XLR output (Link)
• (1) IEC power cable input
Input Impedance
• Line: 10 KΩ balanced, 20 KΩ unbalanced
Gain/Volume Control Range
• -∞ to 0 dB, +4 dBu nominal, +10 dBu for max output
HPF Switch
• 100 Hz
Bluetooth
• Version: 5.0
• Profile: A2DP, AVRCP
• Codec: SBC
• Range: up to 100 feet (30.5m)
Power
• Connection: IEC
• Input Voltage: 100-120V, 50/60 Hz; 220-240V, 50/60 Hz
• Consumption: 1100W
• Fuse: T15AL AC250V; 220-240V T6.3AL AC250V
Protection
• Electronic clip, thermal, and transducer overdrive protection
Mounting/Installation
• Standard 36 mm pole socket
Operating Temperature
• 14°F to 113°F / -10°C to 45°C
Dimensions
• 10.1” x 9.6” x 17.2”
• 256 mm x 245 mm x 436 mm
Weight
• 21.05 lbs.
• 9.5 kg
