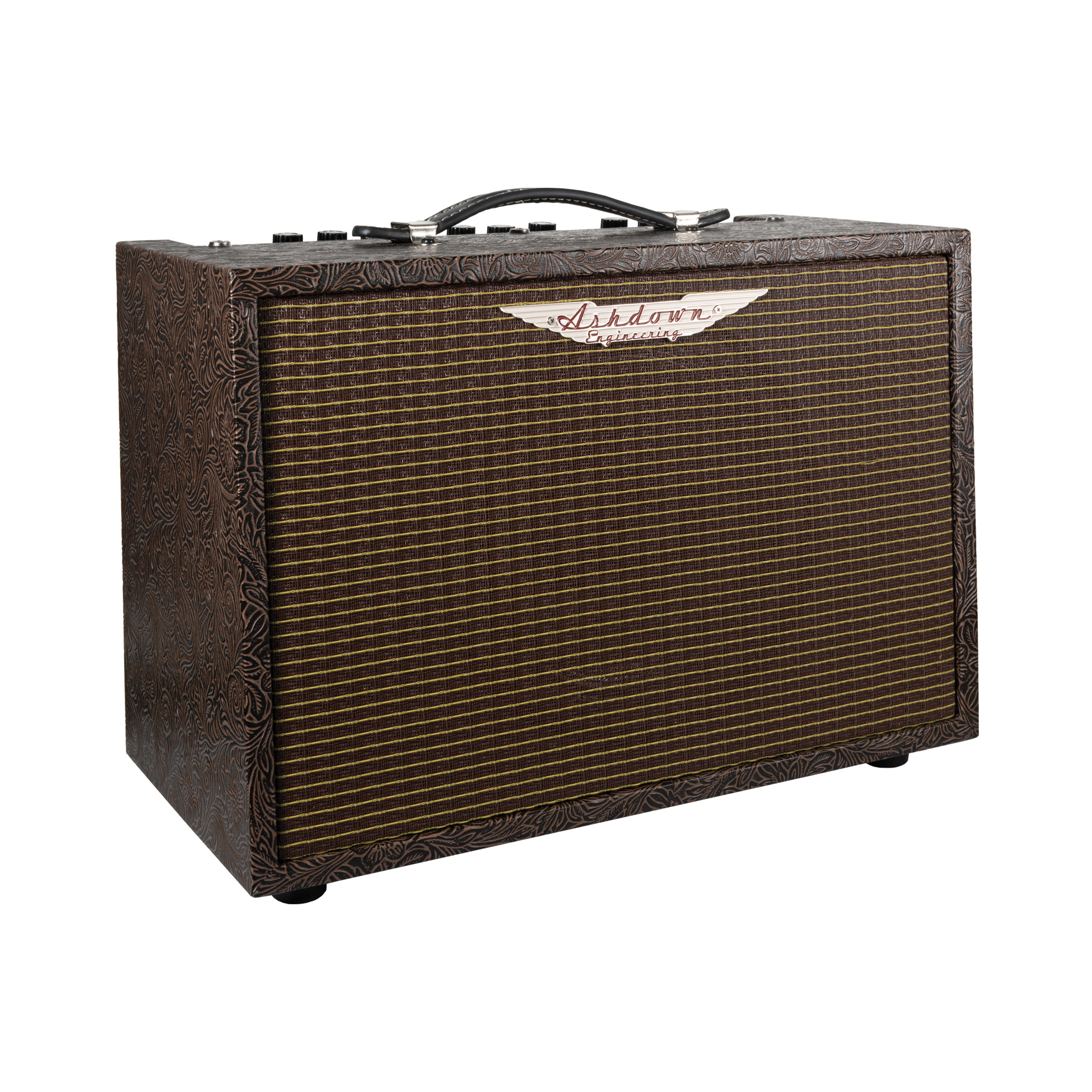

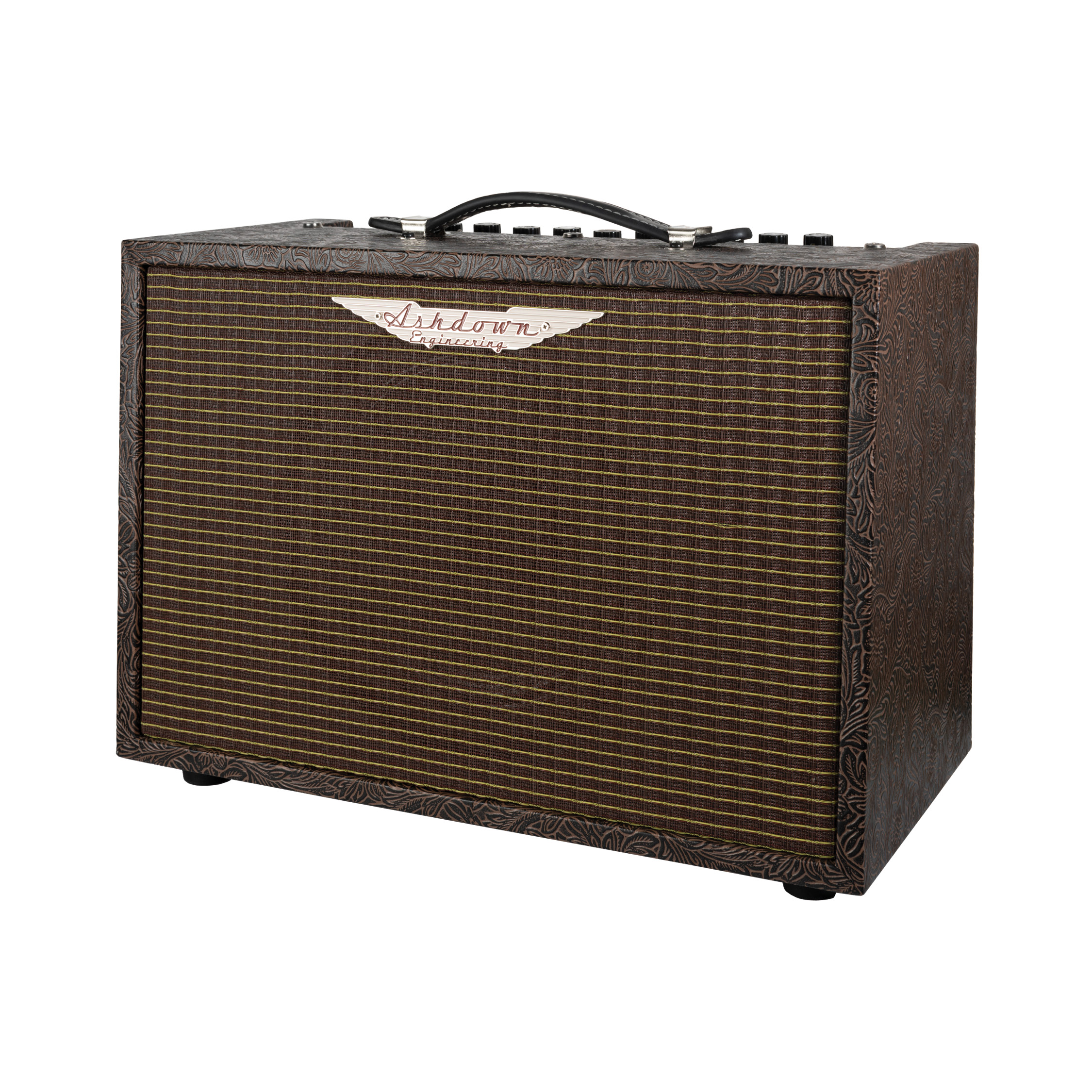

Ashdown WOODSMAN - 36 - CLASSIC
Combining timeless wooden cabinet design with modern features, the Woodsman Classic delivers 40 watts of warm, natural acoustic tone, perfect for soloists and duos. Alongside dedicated mic and guitar inputs, it adds a mic tone control, active/passive guitar inputs, phase reversal, notch filter for feedback control, and an XLR DI out for seamless recording or PA use.
Stylish, portable, and stage-ready, it's built to bring clarity and character to every performance.
POWER
• Power Output: 40 Watts
• Frequency Response: –3dB @ 28Hz and 28kHz
• Distortion: <0.8% THD
CONNECTIVITY & I/O
• Speaker Configuration: 1 × 8”
Inputs:
• Mic Channel (with independent volume + tone control)
• High Instrument Input – 10kΩ, 300mV–20V p-p
• Low Instrument Input – 3.9MΩ, 150mV–10V p-p
• Active/Passive guitar input options
• Line In – 10kΩ, 0dBu nominal
Outputs:
• Line Out – 4.7kΩ, 0dBu nominal
• XLR DI Output – for recording or PA use
• Effects Send – 10kΩ, 0dBu nominal
PERFORMANCE
• EQ: ±15dB @ 100Hz and 10kHz
• Guitar Channel: Volume, Bass, Mid, Treble
• Mic Channel: Volume + Tone control
Extra Features:
• Phase Reversal switch
• Notch Filter (feedback control)
• Effects: Studio-quality digital reverb
• Signal to Noise: >80dB (EQ flat)
• Cabinet: Wooden cabinet with classic styling
DIMENSIONS & WEIGHT
• Height: 326 mm
• Width: 350 mm
• Depth: 225 mm
• Net Weight: 8.54 kg
