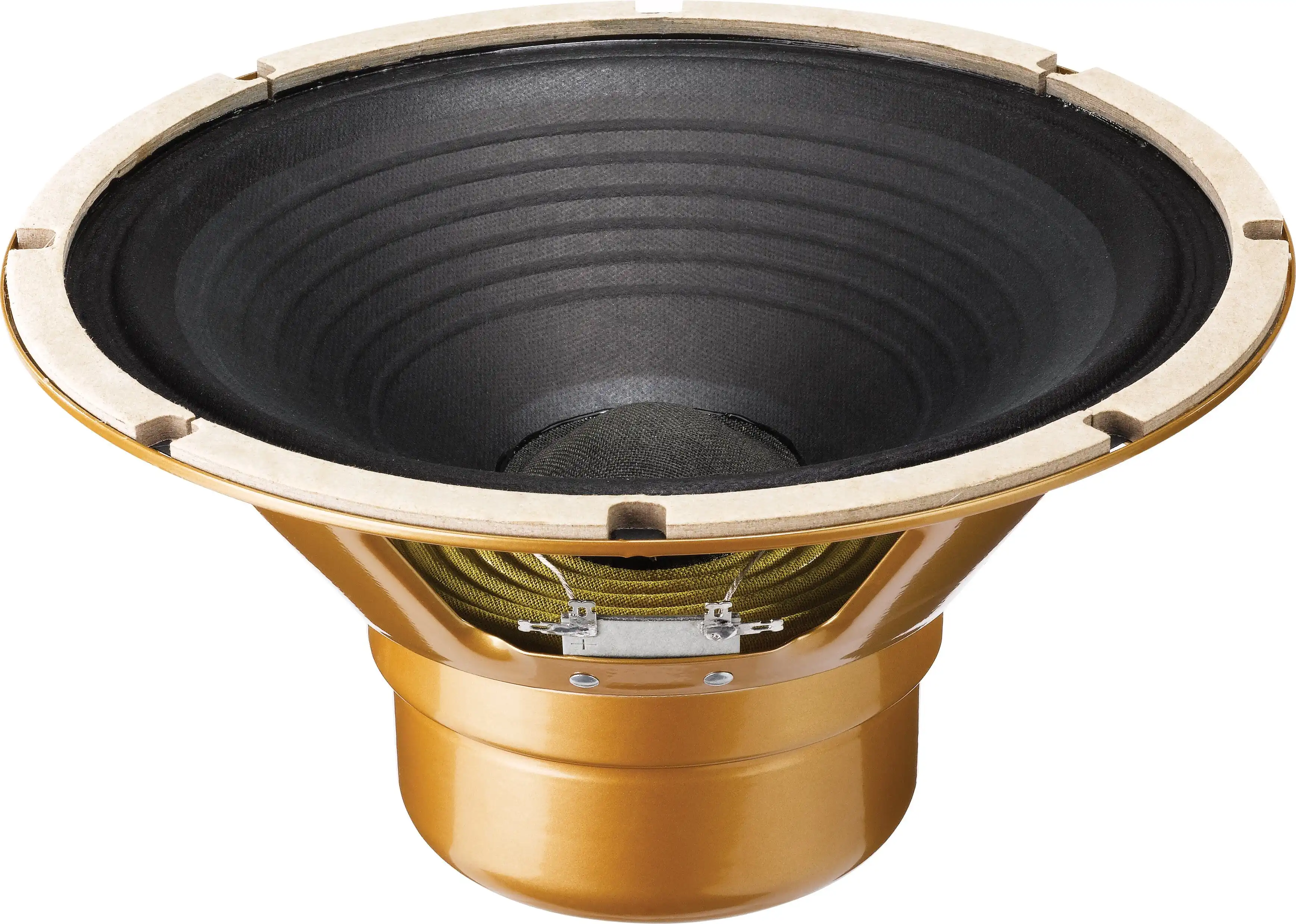

Following the great reviews we received for the Gold 12″, we realised there was also a need for a speaker that conveyed the Alnico mellowness of the original Blue, with the speed and response of a 10″ driver.The G10 Gold is the ultimate 10″ guitar speaker, blending unmistakable Alnico class with a rich low-end, creamy mid-range and vintage chiming top-end.

Springy, warm, revealing and highly expressive, it can be used singly or in pairs to add a classy sheen to any amp, or in a 4×10 configuration for higher volume depth, warmth and shimmer, with less of the boom associated with 4×12 cabinets.

Nominal diameter              254mm / 10in

Power rating                      40W

Rated impedance               16Ω

Sensitivity                          98dB

Chassis type                       Pressed steel

Magnet type                      Alnico

Voice coil diameter           1.75in / 44.5mm

Voice coil material            Round copper

Frequency range                80-6000Hz

Resonance frequency, Fs   80Hz

DC resistance, Re              6.66Ω and 13.56Ω

Mounting Information

Cut-out diameter                  229mm / 9in

Diameter                              256mm / 10.1in

Magnet structure diameter   119mm / 4.7in

Mounting hole dimensions  6.5mm / 0.25in Ø

Mounting hole PCD             244mm / 9.6in

Number of mounting holes  8

Chassis depth (inc gasket)   73mm / 2.87in

Magnet depth                       62mm / 2.43in

Overall depth                       135mm / 5.3in

Unit weight                          2.7kg / 6.0lb
