Model: D9
General Description: DAC
Design Philosophy and Core Technology:
• ES9038Pro 32-bit DAC
• MQA Full decoder (PC USB, Coax / Optical)
• 2.8" 480x640 large size full view IPS LCD
• Bluetooth 5.1 (aptX / aptX HD / LDAC) streaming
• Dedicated Current-Feedback Headphone Amp
• VU Digital / VU Analogue Meter
• USB HDD Playback with MP3/WMA/AAC/WAV/FLAC/APE compatibility
• USB Firmware Upgrade

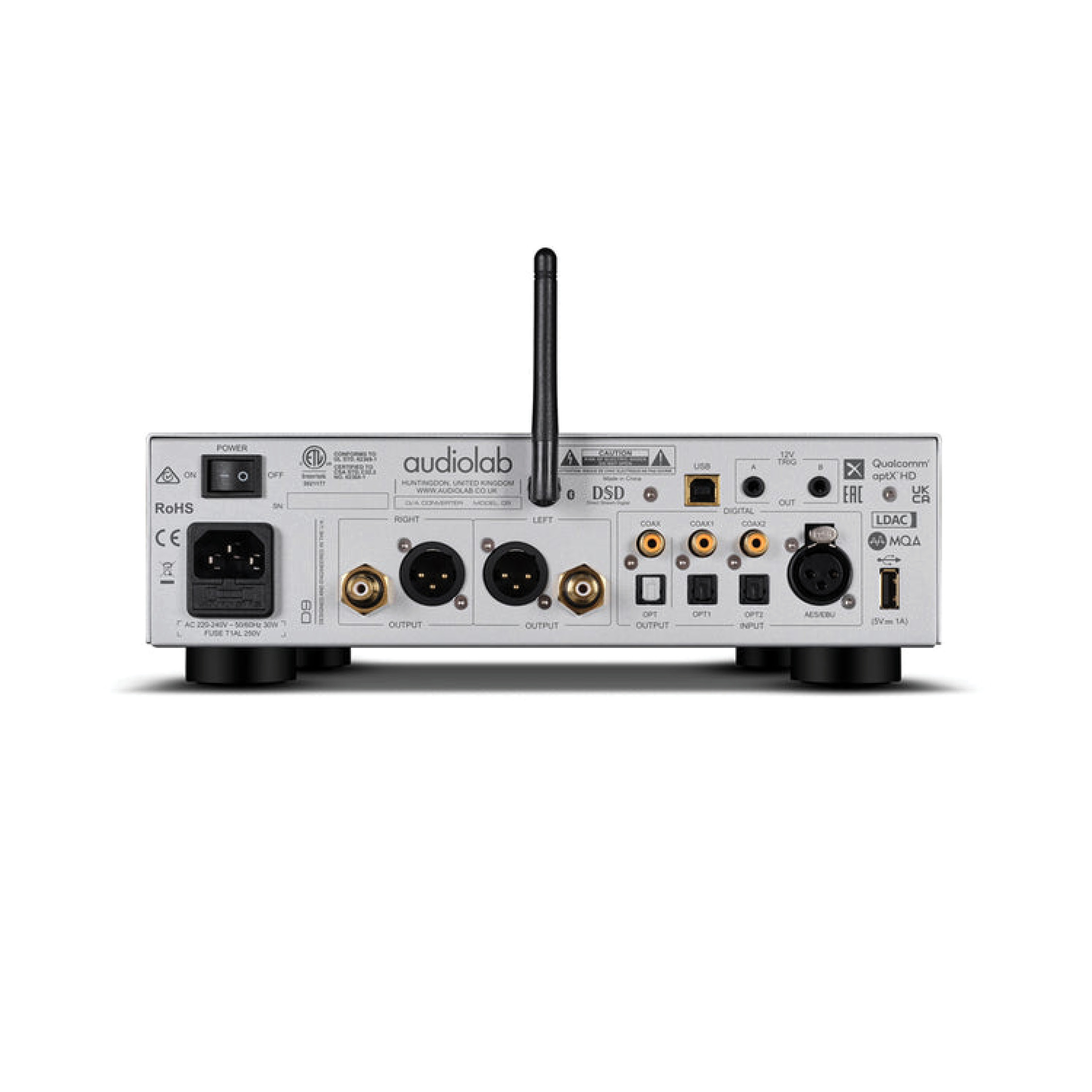

Inputs:
• 2 x SPDIF (Coax), 2 x SPDIF (Optical), 1 x PC USB (USB B),
• 1 x USB HDD (USB A), 1 x Bluetooth (aptX / aptX HD), 1 x AES3/EBU
Outputs: 1 x RCA, 1 x XLR, 1 x Headphone, 2 x 12V Trigger, 1 x Optical, 1 x COAX outputs
Sampling Frequency:
• Optical/Coaxial: 44.1kHz → 192kHz
• USB HDD: 44.1kHz → 96kHz
• PC USB: 44.1kHz → 768kHz (PCM) / DSD64, DSD128, DSD256, DSD512

DAC
D to A Converter: ES9038Pro
Output Level (0dBFS, 1kHz): 2.05Vrms (RCA), 4.1Vrms (XLR)
Total Harmonic Distortion (THD): < 0.001% (1kHz @ 0dBFS)
Frequency Response: 20Hz–20kHz (+/-0.1dB)
Output Impedance: Not specified
Max. Sampling Frequency:
• USB HDD: 96kHz
• Optical, Coaxial: 192kHz
• PC USB: PCM768kHz, DSD512
Signal-to-Noise Ratio (S/N)
• > 118dB (A-weighted, RCA)
• > 123dB (A-weighted, XLR)

Headphone Amplifier
Total Harmonic Distortion(THD): < 0.01% (1kHz, 50mW )
Output Impedance: 2.35 ohm
Load Impedance: 20-600 ohm

General
Standby Power Consumption: <0.5W
Net Weight: 4.2 kg
Gross Weight: 5.8 kg
Dimensions (mm) (W x H x D): W: 315 x H: 88.3 x D: 277mm
Carton Size (mm) (W x H x D): W: 409 x H: 220 x D: 451mm

Finish
Power Requirements (depending on region):
• 220-240V ~ 50/60Hz
• 100-120V ~ 50/60Hz
Standard Accessories: Power Cord, Remote Control, User Manual, etc.
