DAC Box S2 + comes fully equipped for the highest demands of the modern audiophile. It supports playback for PCM files up to 32 bit / 768 kHz and DSD decoding up to quad DSD (DSD256). DAC Box S2 + also comes with five digital filters for soundshaping to the listener's preferences. Three digital inputs ensure to connect to any source available, be it a personal computer via the USB B input or a TV set via the optical input. The co-axial S/PDIF input takes all data from a digital transport such as the CD Box DS2 T.

All inputs offer support for high-resolution data up to 24 bit /192 kHz. The USB input offers full high-resolution support for all files up to PCM 32/768 and DSD256. The USB input is double filtered to remove all noise.

Features

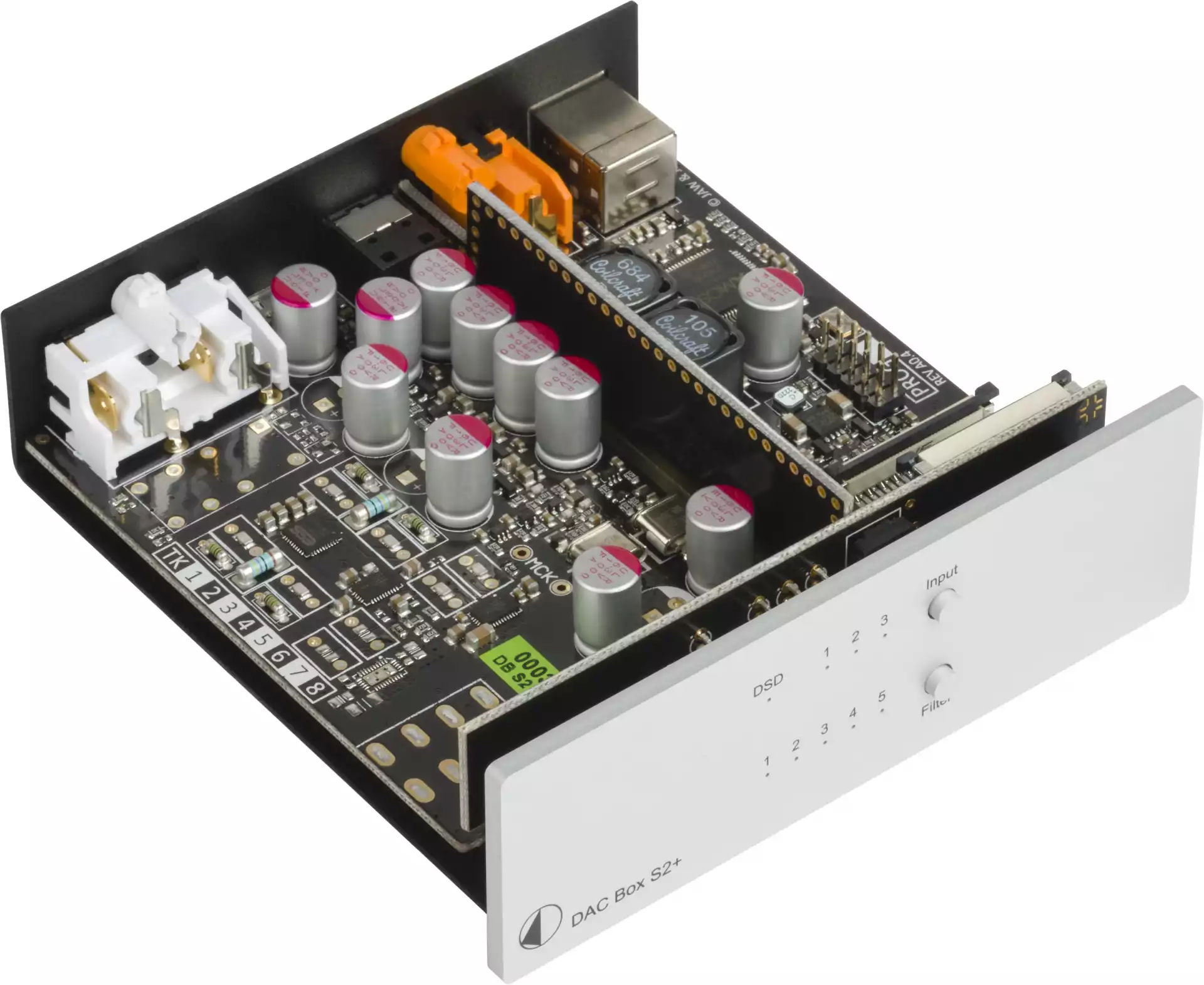

High-end ESS Sabre ESS9038 DAC
Proprietary clock circuity design
Organic polymer capacitors and thin film
miniMELF resistors
32bit / 768kHz PCM support
DSD64, DSD128 & DSD256(DSD over PCM)
Up to 24bit/192kHz for optical & coax inputs
5 selectable digital filter characteristics
1 proprietary optimum transient digital filter
Synchronization of all internal oscillators
Jitter as low as 100 Femtoseconds
Gold plated four layer PCB
Full alu/metal sandwich casing in silver or black
Handmade in Europe
Specifications
DAC chip: ESS9038K2M 32-bit

Sampling rates
USB: Up to DSD256, PCM up to 32-bit, 768 kHz
Optical: PCM up to 24-bit, 192 kHz
Coaxial: PCM up to 24-bit, 192 kHz

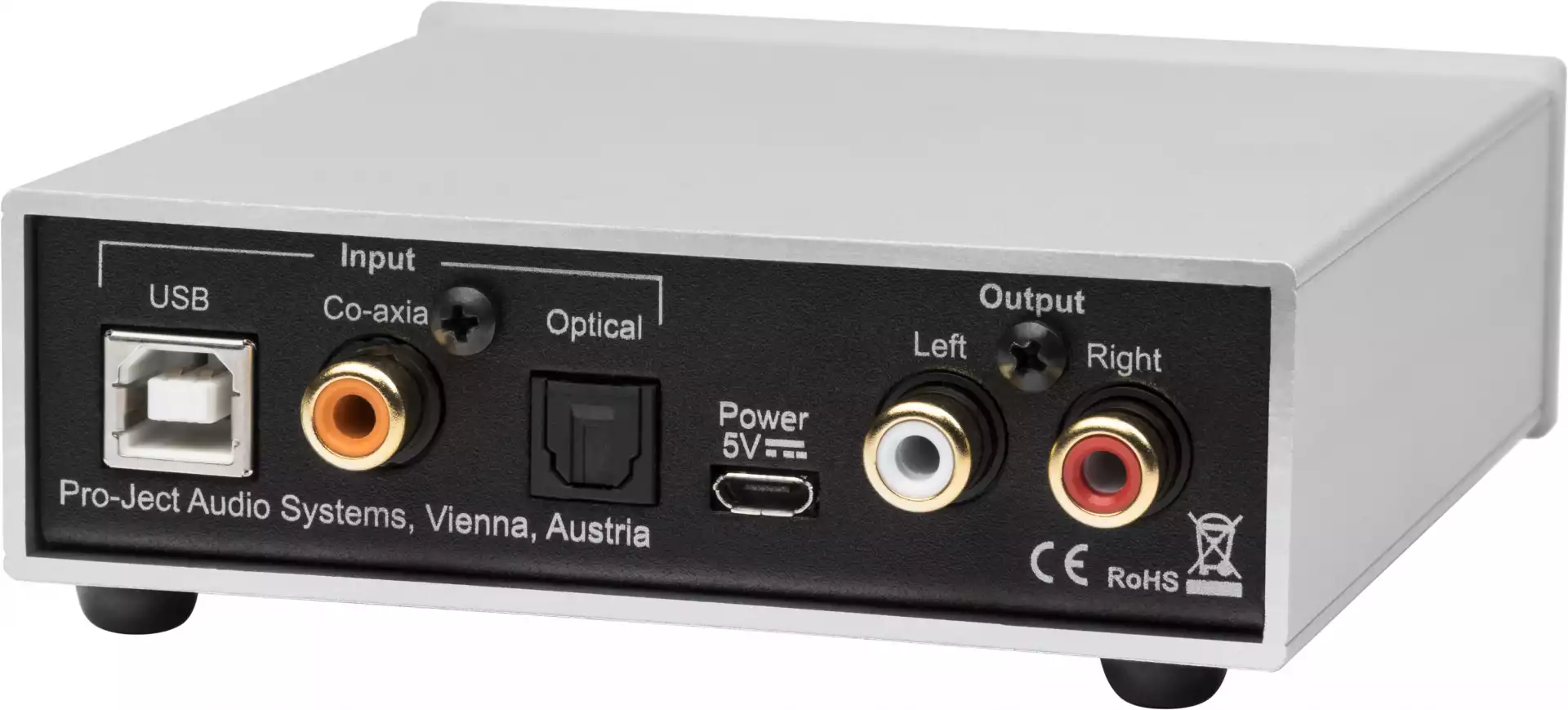

Inputs: 1x USB B, 1x S/PDIF RCA, 1 x Optical

Outboard power supply: 5 V/1 A DC (included)

Dimensions (WHD): 4" x 1.5" x 4.8" (103 x 37 x 122 mm
