Audiolab D7 Silver - DAC
Building on the legacy of the award-winning 6000A, the Audiolab 6000A MKII introduces key advancements inspired by the flagship 9000A and versatile 7000A models. With refined circuitry and enhanced performance, it continues Audiolab’s tradition of delivering exceptional sound at an accessible price point—perfect for audiophiles seeking high-quality audio from a brand with over 40 years of innovation.Born from Audiolab’s pioneering M-DAC lineage and a family of modern DAC-equipped electronics, the D7 continues the tradition of class-leading DAC performance at an entry-level price.
Model: D7
General Description: DAC
Design Philosophy and Core Technology:
• ES9038Q2M 32-bit DAC
• MQA Full decoder (PC USB, Coax / Optical)
• OLED Display
• Bluetooth 5.1 (aptX / aptX HD) streaming
• Dedicated Current-Feedback Headphone Amp
• Supports playing USB memory device (MP3 / WMA / APE / AAC / WAV / FLAC)
• USB Firmware Upgrade

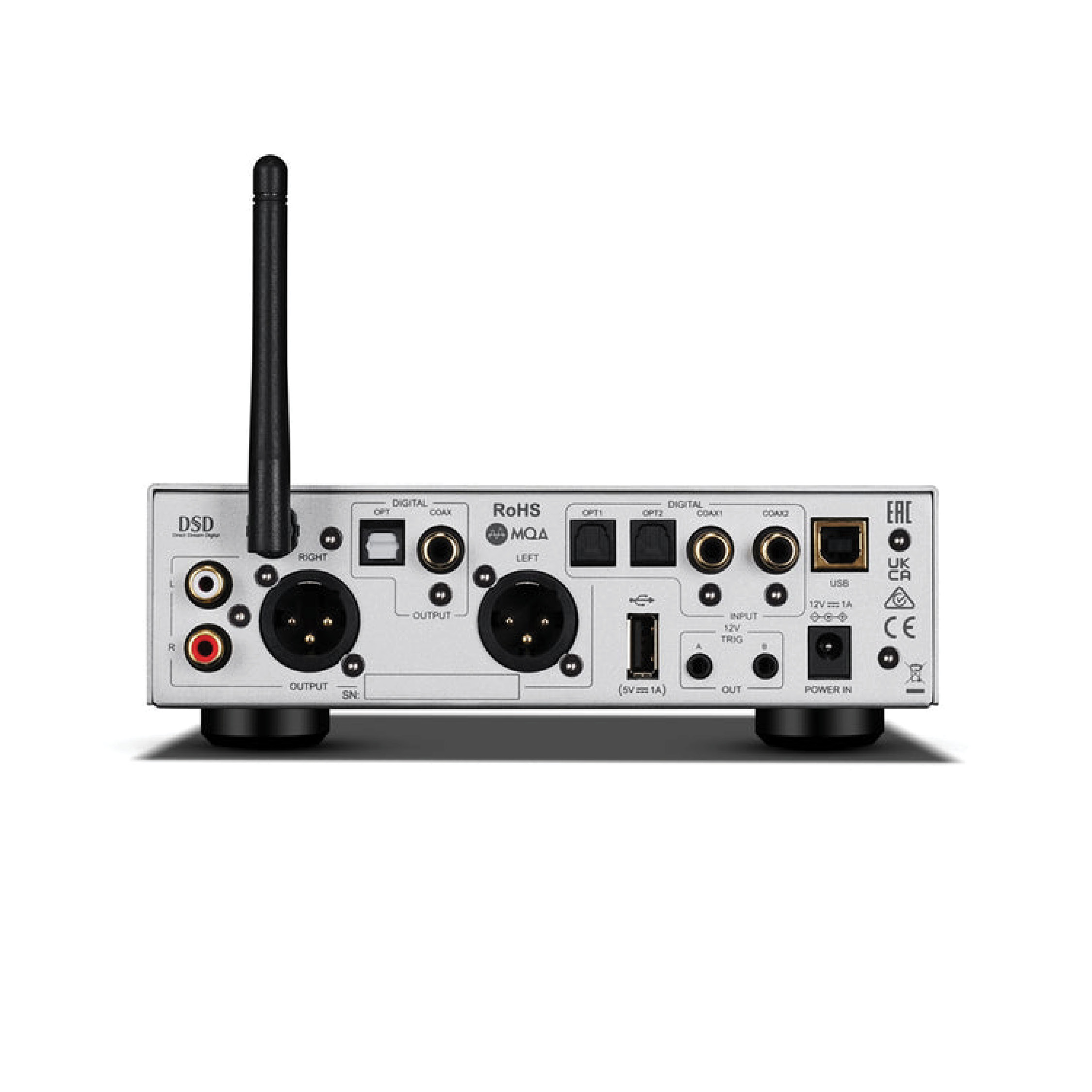

Inputs:
• 2 x SPDIF (Coax), 2 x SPDIF (Optical), 1 x PC USB (USB B),
• 1 x USB HDD (USB A), 1 x Bluetooth (aptX / aptX HD)
Outputs: 1 x RCA, 1 x XLR, 1 x Headphone, 2 x 12V Trigger, 1 x Optical, 1 x Coax
Sampling Frequency:
• Optical/Coaxial: 44.1kHz–192kHz
• USB HDD: 44.1kHz–96kHz
• PC USB: 44.1kHz–768kHz (PCM) / DSD64, DSD128, DSD256, DSD512
DAC
D to A Converter: ES9038Q2M
Output Level (0dBFS, 1kHz): 2.05Vrms (RCA), 4.1Vrms (XLR)
Total Harmonic Distortion (THD): < 0.001% (1KHz @ 0dBFS)
Frequency Response: 20Hz-20kHz (+/-0.2dB)
Output Impedance: 120 ohm
Max. Sampling Frequency:
• USB HDD: 96KHz
• Optical,Coaxial: 192KHz
• PC USB: PCM768kHz, DSD512
Signal-to-noise Ratio (S/N):
> 115dB (A-weighted, RCA)
> 117dB (A-weighted, XLR)
Headphone Amplifier
Total Harmonic Distortion(THD): < 0.01% (1kHz, 50mW )
Output Impedance: 2.35 ohm
Load Impedance: 20-600 ohm
General
Standby Power Consumption: <0.5W
Net Weight: 1.42 kg
Gross Weight: 2.2 kg
Dimensions (mm) (W x H x D): L: 180 x W: 208 x H: 56mm
Carton Size (mm) (W x H x D): L: 290 x W: 325 x H: 85mm
Finish
Power Requirements (depending on region):
• 220-240V ~ 50/60Hz
• 100-120V ~ 50/60Hz
Standard Accessories: Power adapter, Remote Control, User Manual, etc.
