Advanced proprietary Blackbird WTA Filter: Utilises the most advanced interpolation algorithm to deliver a tenfold improvement in transient timing accuracy.
Five Xilinx FPGAs: Features massive processing capability with 3,700 DSP cores running over two million lines of proprietary code.
Hardware-level processing: All digital filtering is implemented directly in hardware, completely avoiding the timing errors caused by software FFT convolution shortcuts.
Integrated Pulse Array ADC: The first Chord Electronics upscaler to accommodate analogue sources (such as turntables) via RCA inputs, eliminating traditional aliasing distortion through advanced decimation filtering.

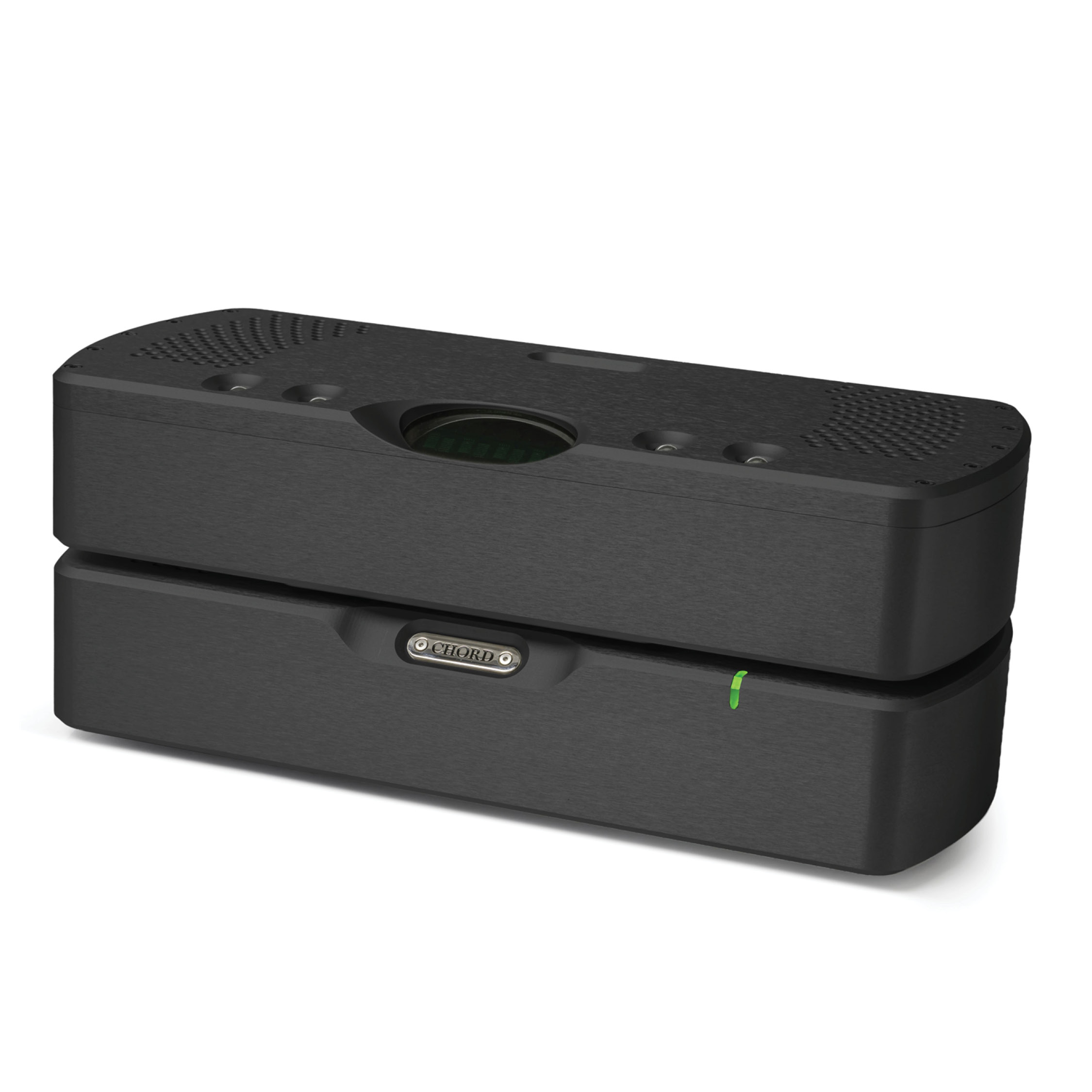

Two-box architecture: Separates the sensitive audio circuitry from a dedicated power supply featuring a proprietary pinch-off RF filter architecture to reject mains-borne noise.
108-bit lossless digital EQ: A ten-shelf equalisation system providing ±18 dB of adjustment across frequencies with zero degradation of signal quality.
Comprehensive digital connectivity: Equipped with isolated USB-B, optical in, BNC in and dual BNC outputs supporting maximum resolution up to 768 kHz (optimised for pairing with the DAVE DAC).
Programmable Latency: Offers selectable delay from 10 milliseconds to three seconds to ensure perfect lip-sync during audio-visual playback.

TECH SPEC
Full Power consumption: 130 W
Standby power consumption:  20W
Dimensions: 7.8 cm (H) 33.5 cm (W) 15.2 cm (D) (Also applied to the power supply)
Weight: 3 kg; PSU 3.2 kg

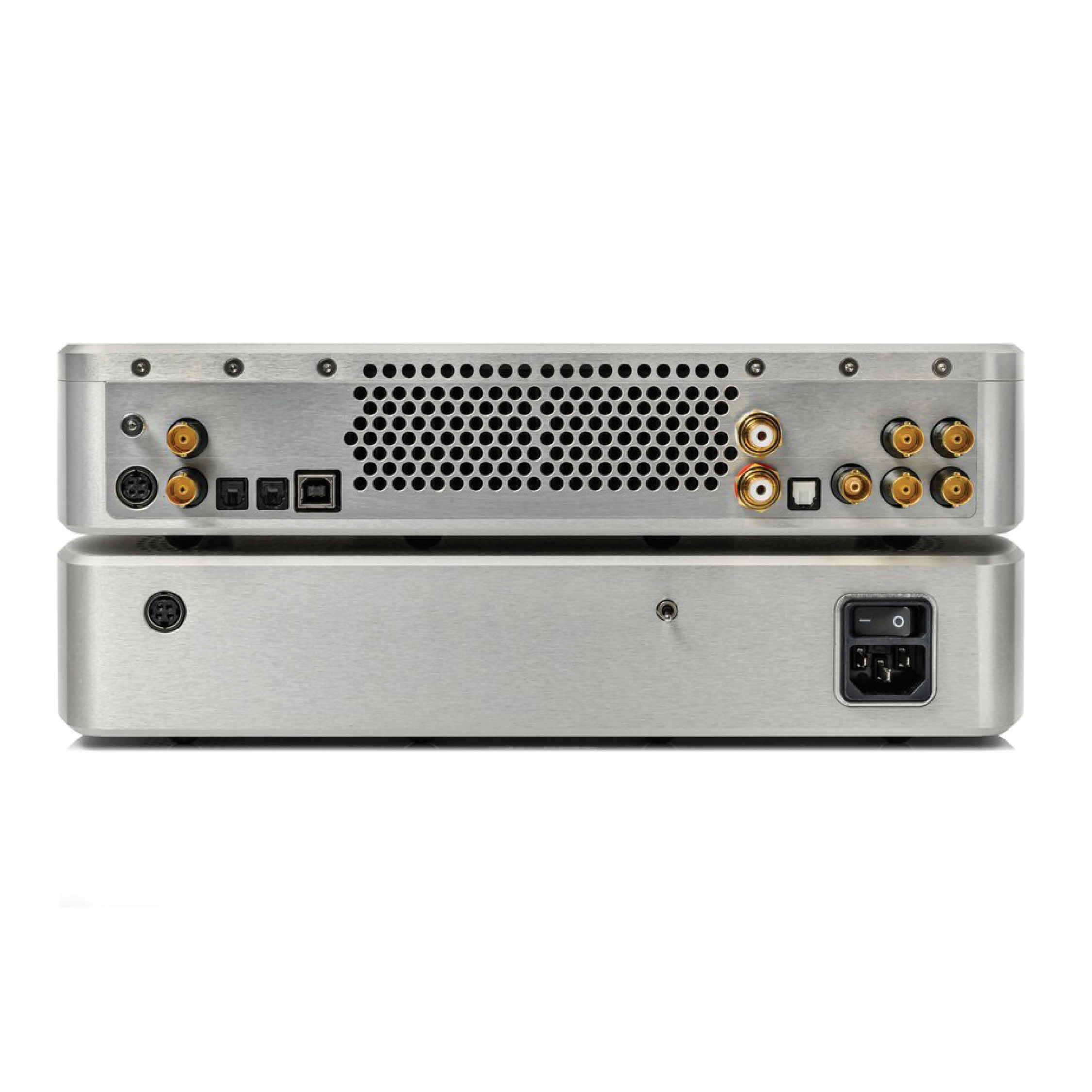

Digital inputs:
• 2x BNC (or dual BNC)
• 72x Optical
• 1x USB-B (galvanically isolated)

Digital outputs:
• 1x Optical 192 kHz
• 1x S/PDIF
• 2x Dual BNC 768 kHz output

Analogue inputs:
• 2x RCA
