Turntable Section
Drive Method: Direct Drive
Motor: Brushless DC motor
Turntable Speeds: 33-1/3, 45 and 78* rpm *The turntable speed will be 78.26 rpm when set to 78 rpm.
Starting Torque: 0.18N・m (1.8kgf・cm)
Build-up Characteristics: 0.7 s. from standstill to 33- 1/3 rpm
Braking system: Electronic brake
Wow and Flutter: 0.025%　W.R.M.S.
Turntable Platter:
• Aluminium die-cast
• Diameter：332mm
• Weight：Approx. 2.0kg (including turntable mat)

Tonearm Section
Type: Static Balance
Effective Length: 230mm
Overhang: 15mm
Tracking Error Angle:
• Within 2° 32'　(at the outer groove of 30cm record)
• Within 0° 32'　(at the inner groove of 30cm record)
Offset Angle: 22°
Arm Height Adjustment Range: 0 - 6mm
Stylus Pressure Adjustment Range: 0 - 4g (direct reading)
Headshell weight: Approx. 7.6g
Applicable Cartridge Weight Range
(without auxiliary weight):
• 5.6 - 12.0g
• 14.3 - 20.7g (including head shell)
(with small auxiliary weight):
• 10.0 - 16.4g
• 18.7 - 25.1g (including head shell)
Cartridge Mounting Dimension: 12.7 mm (1/2") interval
Head Shell Terminal Lug: φ1.2mm 4-pin terminal lug

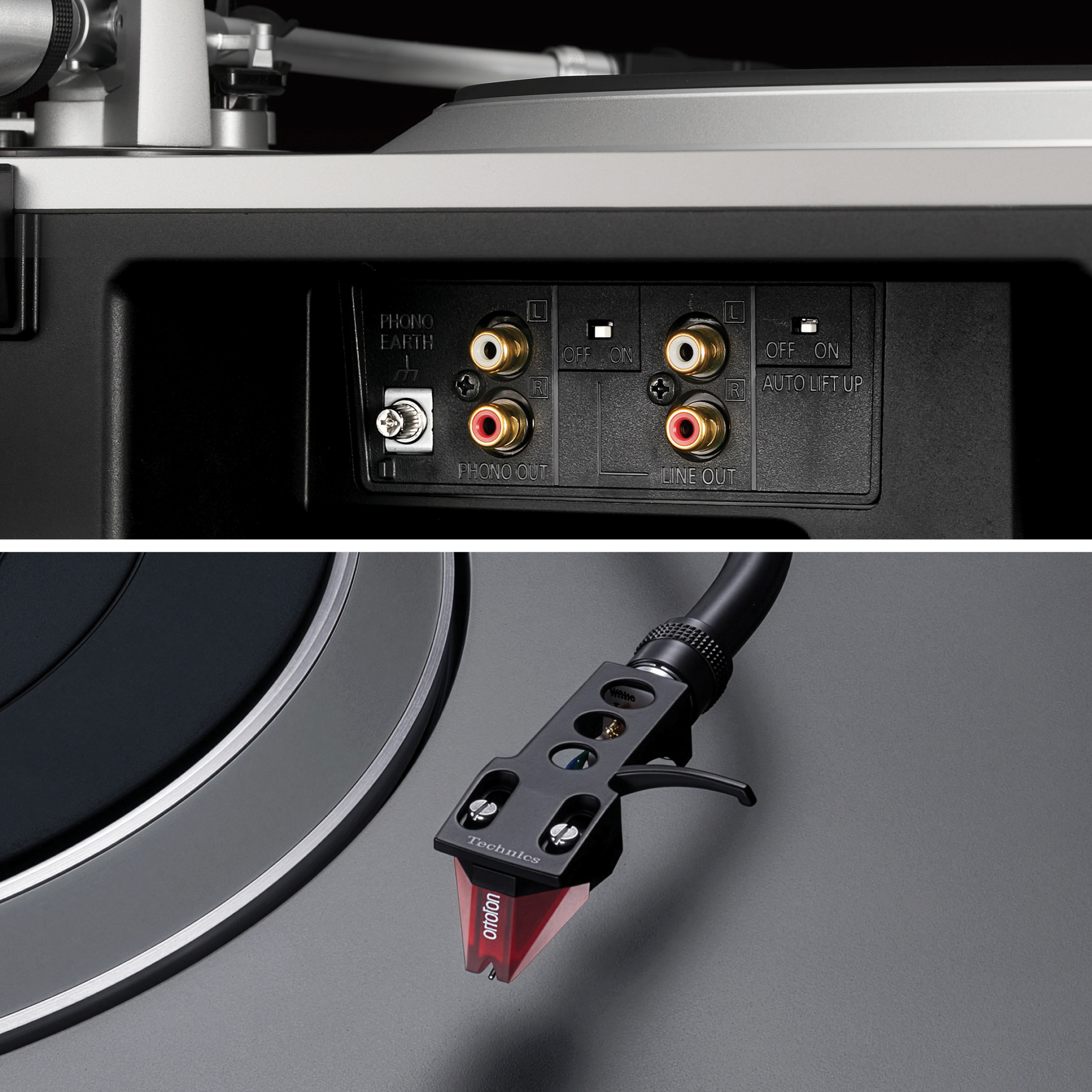

Terminals
Audio Output:
• PHONO (Pin Jack) x 1
• EARTH TERMINAL x 1
• LINE (Pin Jack) x1

General
Power Supply: AC 110-240V, 50/60 Hz
Power Consumption:
For UK
• 8.0 W (ON)
• Approx. 0.2 W (OFF)
For Other Regions:
• 8.0 W (Power ON)
• Approx. 0.2 W (Power OFF)
Dimensions (W x H x D): 453 x 169 x 372 mm
Weight: Approx.9.9 kg
Operating temperature range: 0℃ to +40℃
Operating humidity range: 35% to 80% RH (no condensation)
Accessories: Turntable, Turntable sheet, Dust cover, EP record adaptor, Balance weight, Auxiliary weight, Head shell with cartridge, PHONO cable, PHONO earth lead, AC mains lead(for UK)x1, AC mains lead (for continental EU) x1, Owner's Manual
