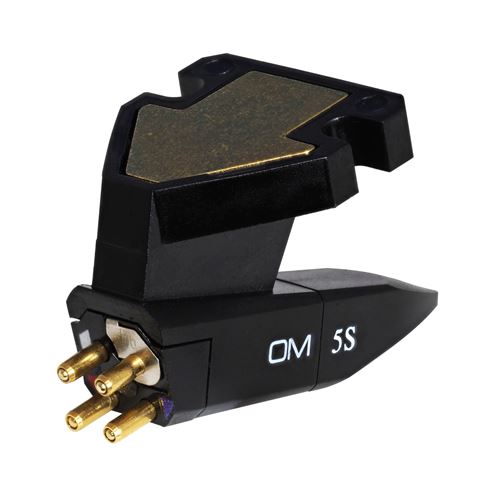

ORTOFON OM 5S Gramofonska Glava
*Cena sa popustom može da se ostvari ukoliko se plaća gotovinski, virmanom (preko računa) ili odmah debitnom i kreditnom karticom.
Garantujemo najnižu cenu!
The OM 5S has been developed to give as many people as possible access to the superior audio reproduction Ortofon are recognised for worldwide. Finished with a high-quality Spherical (S) diamond stylus profile for excellent record hold, it's a great, affordable way to take a step-up in sound quality and clarity.
Due to its longevity in the market, the OM range features a number of upgrade stylus options, including the Stylus 5E, Stylus 10, Stylus 20, Stylus 30, Stylus 40 and the 78 RPM Stylus 78.
- Affordable Optimum Match (OM) hi-fi cartridge
- Hi-Fi sound reproduction
- Spherical stylus profile
- Easy tonearm matching
- High output for easy matching to a phono stage
- Easy stylus upgrades
| Output Voltage (at 1kHz, 5cm/sec) | 4.5mV |
|---|---|
| Channel Balance at 1kHz | 2dB |
| Channel Separation at 1kHz | 20dB |
| Channel Separation at 15kHz | 12dB |
| Frequency Range (at -3dB) | 20Hz - 20kHz |
| Frequency Response | 20Hz - 22kHz |
| Tracking Ability at 315Hz | Typically 60μm |
| Compliance, Dynamic, Lateral | 20μm / mN |
| Stylus Type | Spherical |
| Stylus Tip Radius R | R 18μm |
| Tracking Force Range | 1.5 - 2.0g (15 - 20mN) |
| Recommended Tracking Force | 1.75g (17.5mN) |
| Tracking Angle | 20º |
| Internal Impedance / DC Resistance | 750Ω |
| Internal Inductance | 450mH |
| Recommended Load Resistance | 47kΩ |
| Recommended Load Capacitance | 200 - 500pF |
| Cartridge Colour Body / Stylus | Black / Black |
| Cartridge Weight | 2.5g |
| Replacement Stylus Unit | Stylus 5S |
