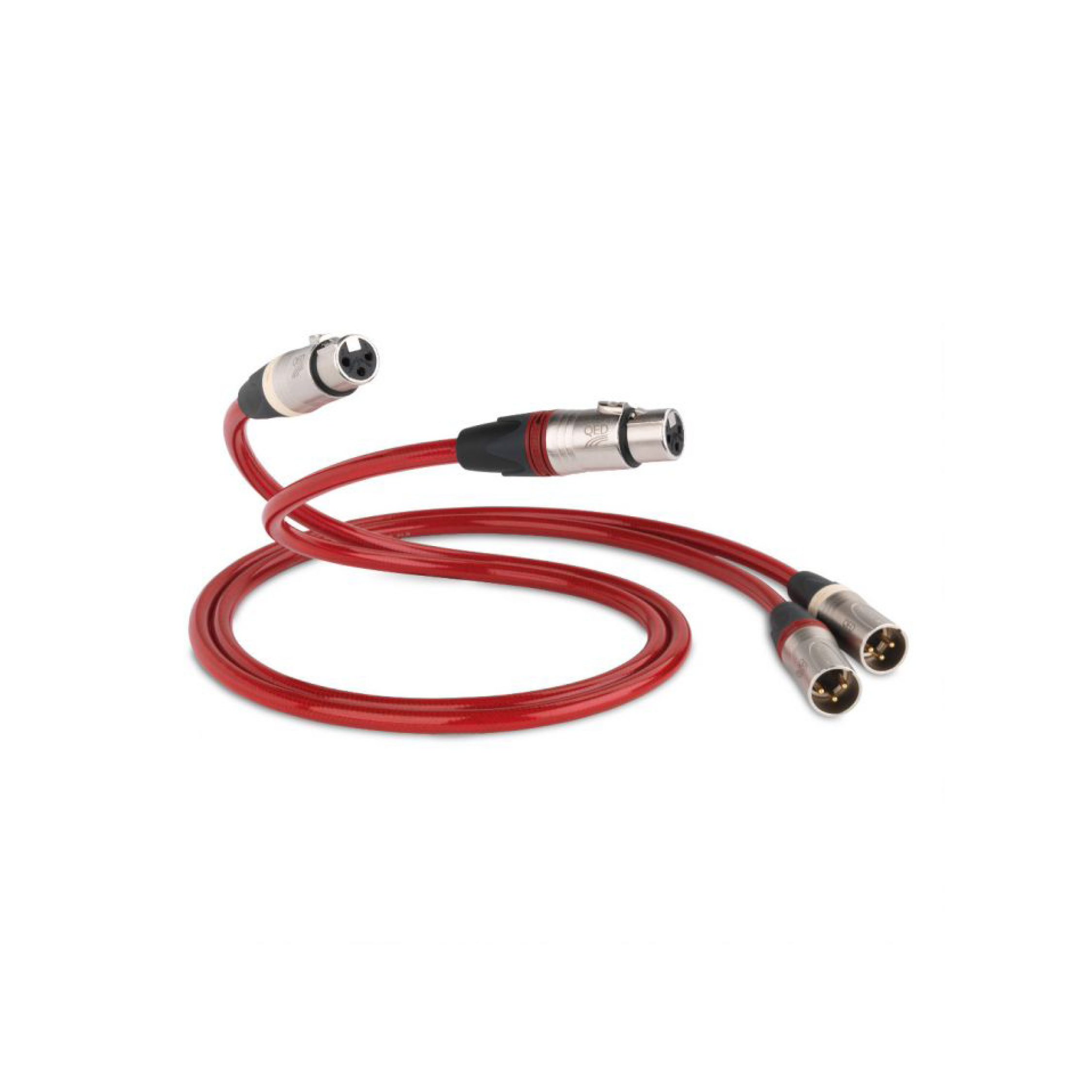

QED REF ANALOGUE XLR 40 0.6M
XLR 40 is designed primarily for low capacitance as this has been identified by QED as a major factor which leads to a high fidelity experience. Further steps have been taken to eliminate minute timing errors in the cable by the use of a special floating Zn/Mn ferrite jacket alongside use of QEDs unique 'Tri-Conductor' technology reducing signal to ground capacitance to vanishingly low levels.
• 99.999% Silver Plated Oxygen Free Copper 24 AWG Tri-Conductors with foamed PE dielectric
• QED Tri-Conductors provide a level of common mode rejection not found in ordinary "hot cold and screen" cables
• Unique floating Zn/Mn impregnated ferrite jacket
• 99.999% OFC outer shield braid for 100% electrostatic screening
• High performance gold plated Neutrik XLR connectors with low contact resistance and high signal integrity
• Conductor Section 0.25 mm2
• Parallel Capacitance 35 pF
• Self Inductance 0.8 μH
• Loop resistance 0.130 Ω/m
• Dissipation Factor@10kHz 0.0001
• Nominal Outside Diameter 8 mm
• QED Lifetime Guarantee
