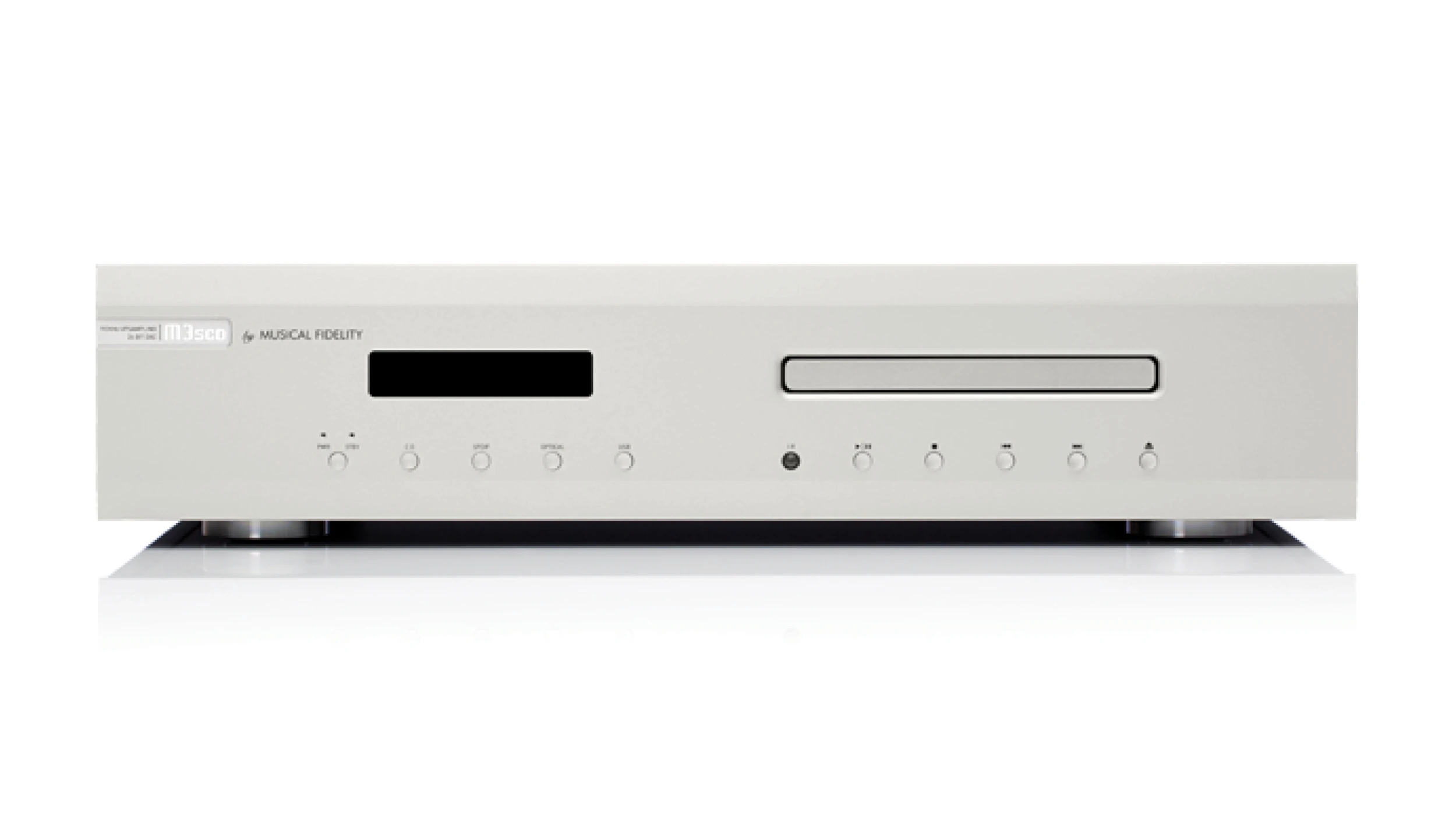

Musical Fidelity M3S CD Silver - CD Plejer
The M3scd is a CD Player and stand-alone DAC with sublime performance.
The M3scd has been designed to give outstanding CD reproduction and to be a digital hub.
In addition to CD it has 3 digital inputs: coax, optical and asynchronous USB. This makes it particularly useful for set top boxes and/or TV sound improvement. The technical performance is excellent; it has very low distortion, extremely low jitter, excellent signal-to-noise ratio, extremely flat frequency response, exemplary linearity and excellent channel separation.
All in all the M3scd gives excellent CD replay and can act as a versatile digital hub at the same time.
Performance
• Jitter: <135 picoseconds peak to peak
• Frequency Response: 10Hz to 20 kHz -0.2dB max.
• Signal to Noise Ratio: >117dB
• THD(+ noise): <0.003% 10Hz to 20 kHz
• Linearity: <0.1dB down to -96dB
• Channel Separation: 105dB 20 Hz to 20 kHz
Hardware
• DAC: 24 bit Delta-Sigma (bit stream) dual differential 8x over-sampling

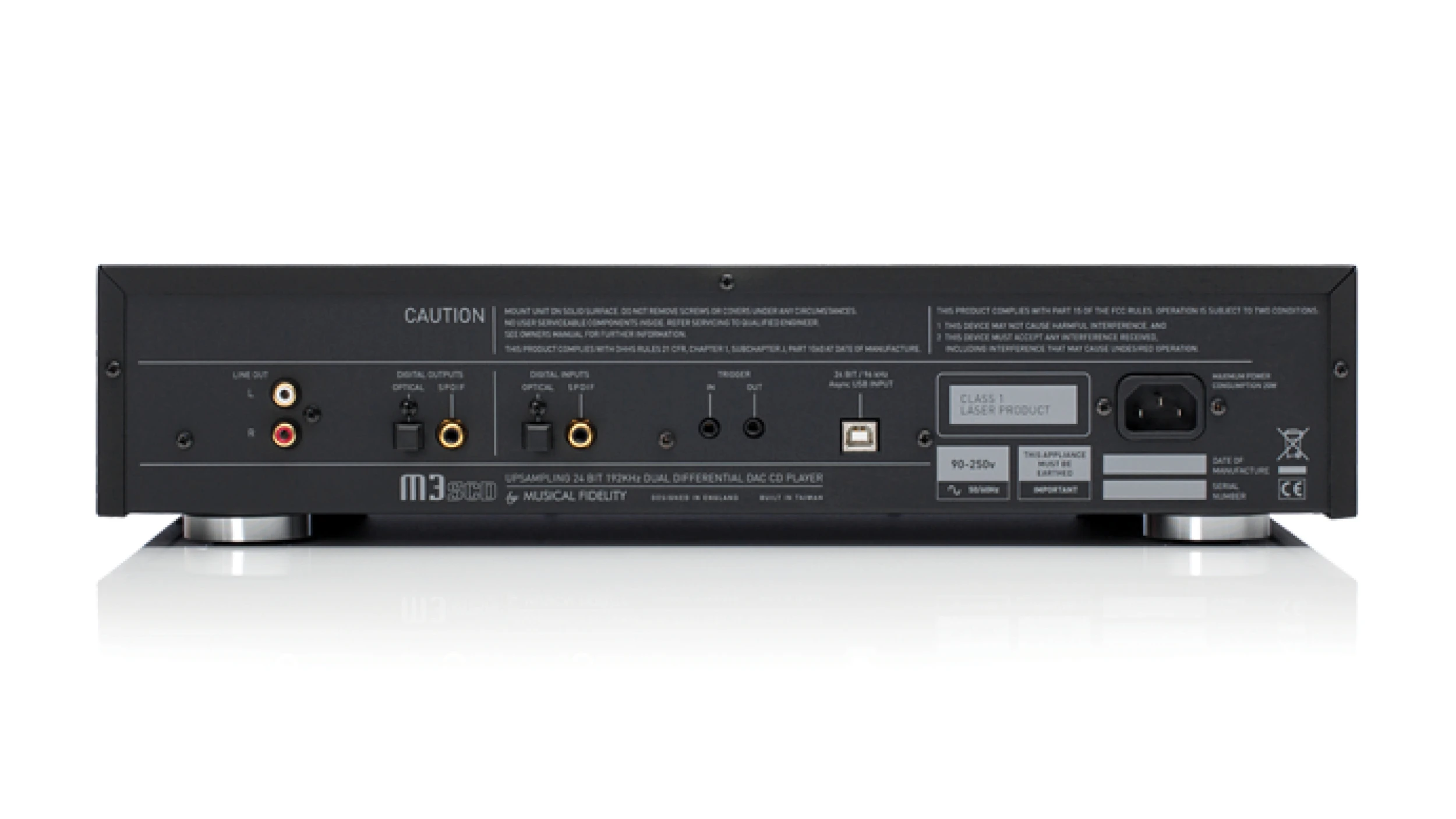

Outputs
• 1x line level RCA
• 1x RCA coaxial connector (Digital SPDIF)
• 1x Toslink optical connector (Digital SPDIF)
• 1x Trigger output - 3.5mm (1/8”) mono jack +12V DC
Inputs
1x RCA coaxial connector SPDIF 32-192kHz
• (16-24 bit stereo PCM)
• 1x TOSLINK optical connector 32-96kHz
• (16-24 bit stereo PCM)
• 1x USB type ‘B’ connector -
• Asynchronous data stream at up to 24-bit/96kHz
• Trigger in
General
• Dimensions - WxHxD (mm): 440 x 100 x 380
• Weight (unpacked / packed): 6.05 kg / 9.9 kg
