Technical Information
Number of Processing Channels: 11.4
Subwoofer Out: 4 (Independent)
Number of Power Amps: 9
Power Output:
• 105 W (8 ohm, 20 Hz-20 kHz, 0.08% 2ch Drive)
• 135 W (6 ohm, 1 kHz, 0.7% 2ch Drive)
Multi-Source / Multi-Zone: 2
Front Display: 1 line FLD
GUI Languages: 9 (English / Deutsch / Français / Italiano / Español / Nederlands /Svenska / Pусский / Polski)
System Remote Control: RC-1262
Power Consumption in W: 660W
Power Consumption No-Sound (ECO on/off) in W: 60W / 100W
Standby Consumption in W: 0.1
CEC Standby Consumption in W: 0.5
Network Standby Consumption in W: Less than 2.0

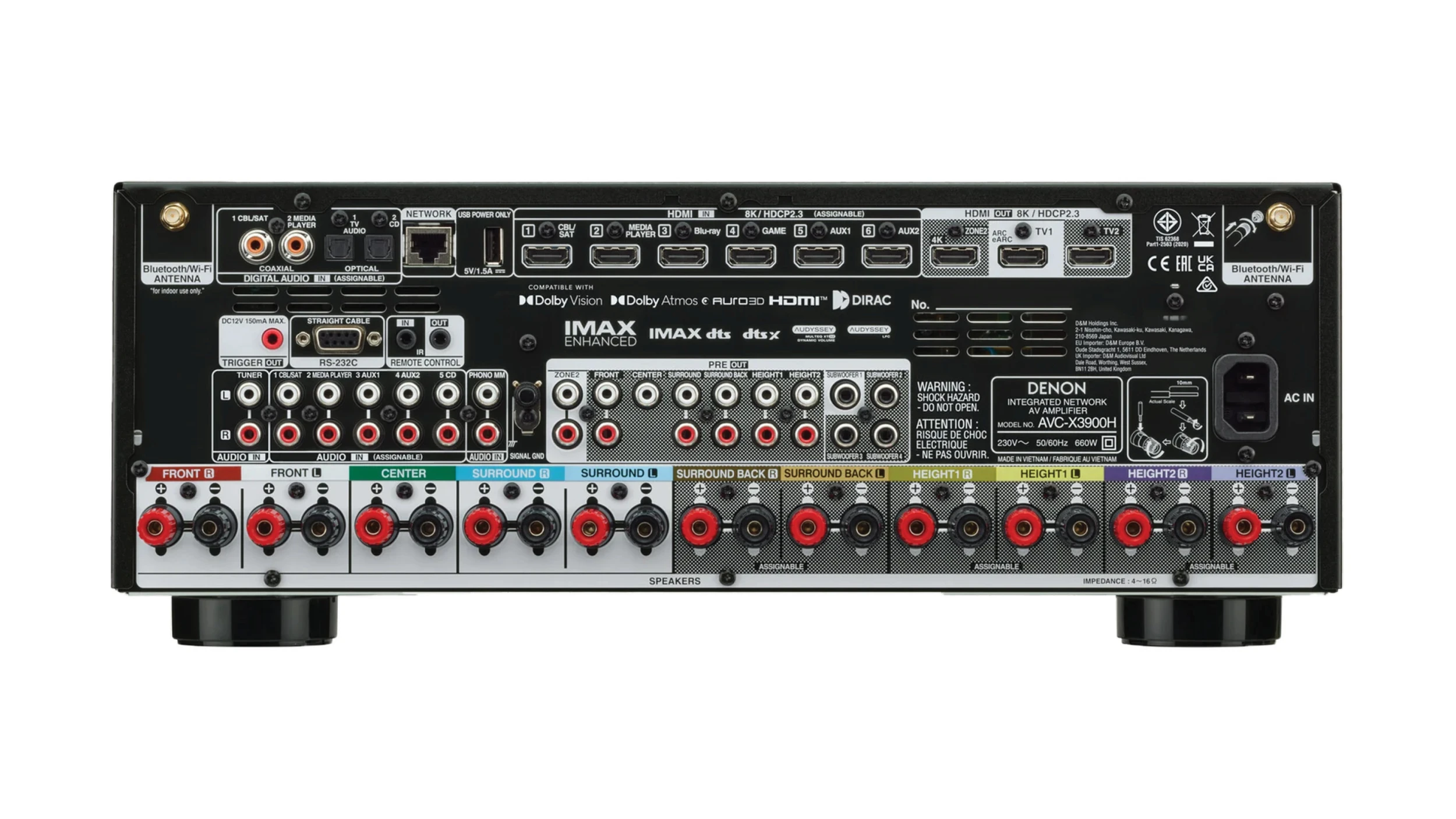

Inputs/Outputs
HDMI In/Out: 6/2
Analog In/Out: 6/-
Phono (MM) In: Yes
Digital In: Optical, Coaxial: 2, 2
Multi-zone Analog Preouts: 1
Multichannel Pre-Out: Yes (11.4)
Number of Speaker Terminals: 11
Speaker A/B: Assignable
Bi-amp Drive: Assignable
Multi-Zone Speaker Terminal: Assignable

Dimensions
Antenna:Horizontal: (W × D × H) in inches: 17.1 × 15.3 × 6.6
Antenna:Vertical: (W × D × H) in inches: 17.1 × 15.3 × 9.3
w/o Antenna: (W × D × H) in inches: 17.1 × 14.9 × 6.6
Weight in lbs: 27.6
Weight in lbs (Packaging): 34.6
