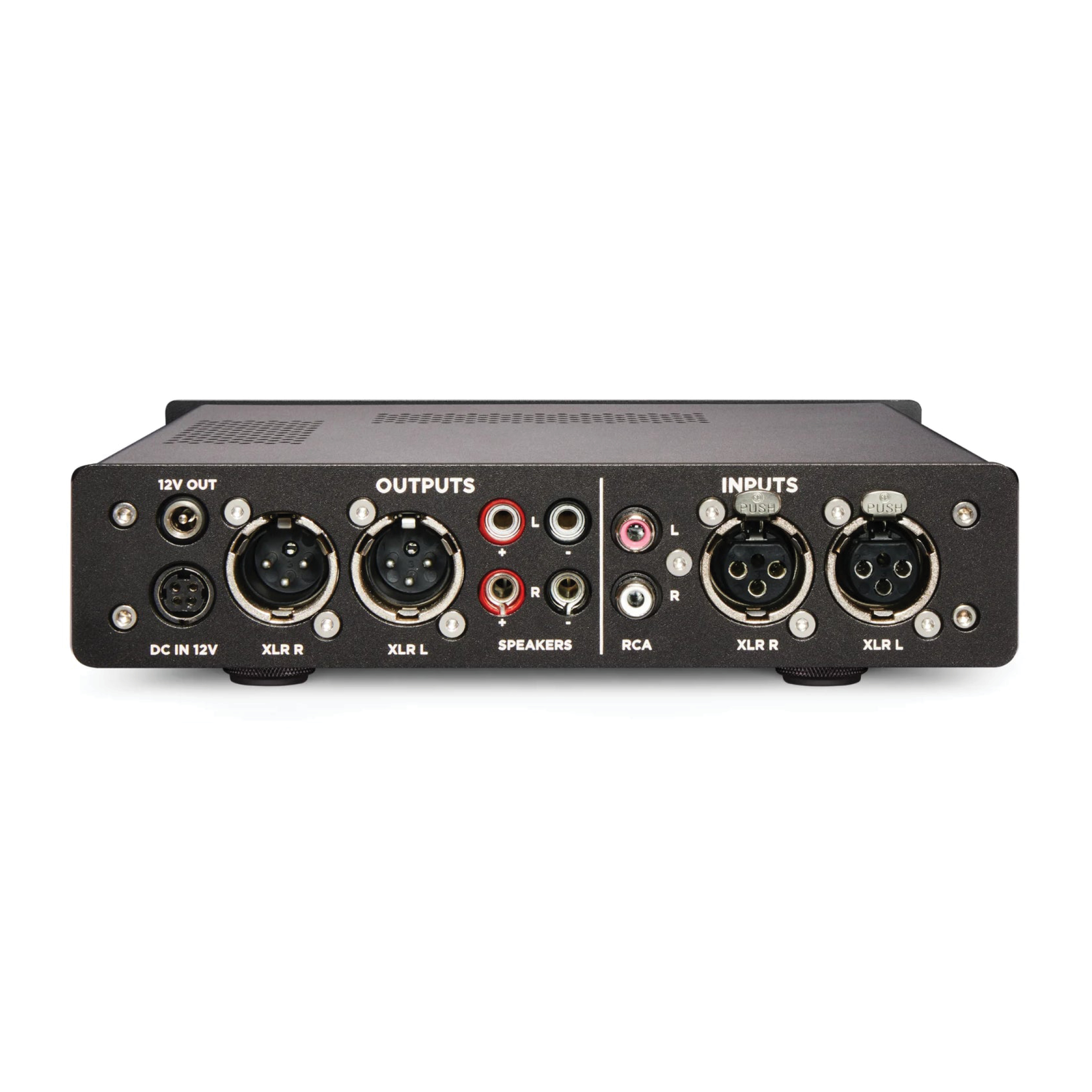

Inputs:
• 1 x set of XLR inputs
• 1 x set of RCA inputs

Outputs:
• 4x headphone outputs (1×3.5mm, 1x 4.4mm balanced jack*, 2×1/4”) *pseudo balanced as the amplifier itself is not a balanced design
• 1 x pair of banana sockets for speakers
• 1 x pair of XLR for additional volume control or signal passthrough
• 1 x 12V DC Jack output for use with other products.

Output power (Speakers): 50 W into 4 Ω
Output power (Headphones): 2250 mW into 100 Ω
THD (Speakers): 0.003 % into 4 Ω
THD (Headphones): 0.001 % into 100 Ω
Signal-to-noise: 120 dB
Frequency response: 6 Hz – 60 kHz
Input maximum voltage: 6 V RMS
Crosstalk: -95 dB
Output maximum voltage: 15 V RMS into 8 Ω
Operation voltage: 80-250 V AC auto-switching
Dimensions: Length 215 mm, Width 200 mm Height 57 mm
Net weight: 1946 g
