SPL Phonitor se - Pojačalo za slušalice
Our entry model into the world of VOLTAiR headphone amplifiers.
The Phonitor se is focused on the essentials – without compromising on quality.
It has the same audio signal amplification as its bigger brothers Phonitor x and Phonitor xe.
With the optional DA converter, it can also play from digital sources.
The Phonitor Matrix provides two of the most common Phonitor Matrix settings as switchable presets. It lets you experience music on headphones as being played back through speakers.
Thanks to VOLTAiR technology in the highest sound quality.

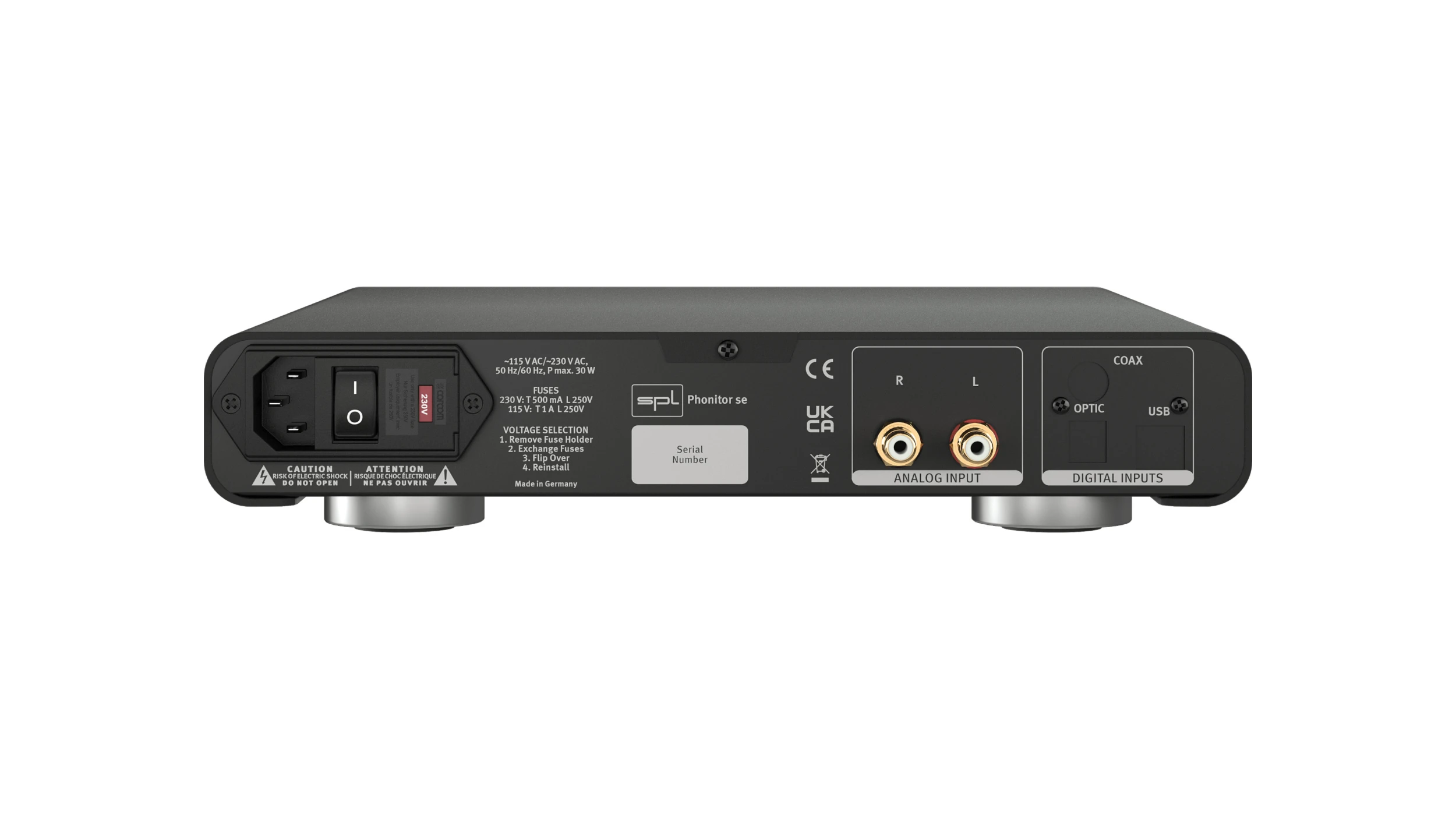

Analog input: RCA
Maximum input gain: 32.5 dBu
Input impedance: 20 kΩ
Digital Inputs: DAC768xs (optional)
Coaxial SPDIF (RCA), PCM sample rates: 44.1/48/88.2/96/176.4/192 kHz
Optical SPDIF (Toslink F06), PCM sample rates: 44.1/48/88.2/96/with Glass fibre <1m: 176.4/192 kHz
USB (B), PCM sample rates: 44.1/48/88.2/96/176.4/192/352.8/384/705.6/768 kHz
USB (B), DSD over PCM (DoP), sample ratesL 2.8 (DSD64), 5.6 (DSD128), 11.2 (DSD256) MHz
0 dBFS calibrated to: 15 dBu
Standard Headphones Output, 6.35 mm (1/4") TRS Jack
Wiring: Tip = Left, Ring = Right, Sleeve = GND
Source impedance: 0.18 Ω
Damping factor (40 Ω): 180
Frequency range (0 dBu): 10 Hz – 100 kHz
Crosstalk (1 kHz, 0 dBu): -90 dB
THD + N (1 kHz, 0 dBu) 0.00091 %
Noise (A-weighted): -103 dBu
Output power (1 kHz, 1% THD, 250 Ω): 2 x 5 W
Output power (1 kHz, 1% THD, 32 Ω): 2 x 1 W
Dynamic range: 135.5 dB
Internal Linear Power Supply with Shielded Toroidal Transformer
Operating voltage for analog audio: +/- 60 V
Operating voltage for relays and LEDs: +12 V
Mains Power Supply
Mains voltage (selectable, see fuse chamber): 230 V AC / 50; 115 V AC / 60 Hz
Fuse for 230 V: T 0.5 A
Fuse for 115 V: T 1 A
Power consumption: max. 30 VA
Stand-by power consumption: < 0,3 W
Dimensions & Weight
W x H x D (width x height incl. feet x depth): 278 x 57 x 300 mm
Unit weight: 2,8 kg
Shipping weight (incl. packaging): 5 kg
