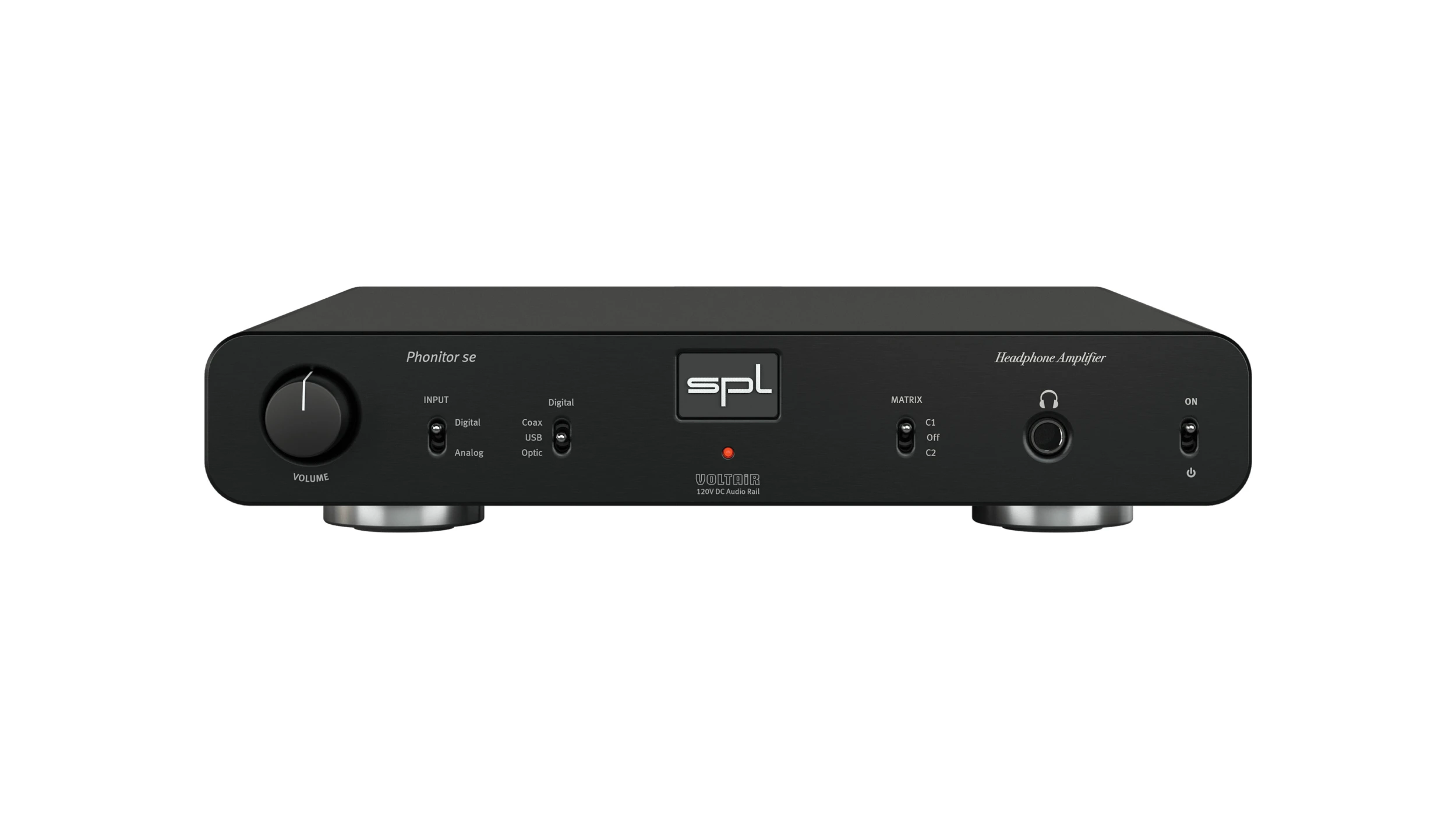

Our entry model into the world of VOLTAiR headphone amplifiers.
The Phonitor se is focused on the essentials – without compromising on quality.
It has the same audio signal amplification as its bigger brothers Phonitor x and Phonitor xe.
With the optional DA converter, it can also play from digital sources.

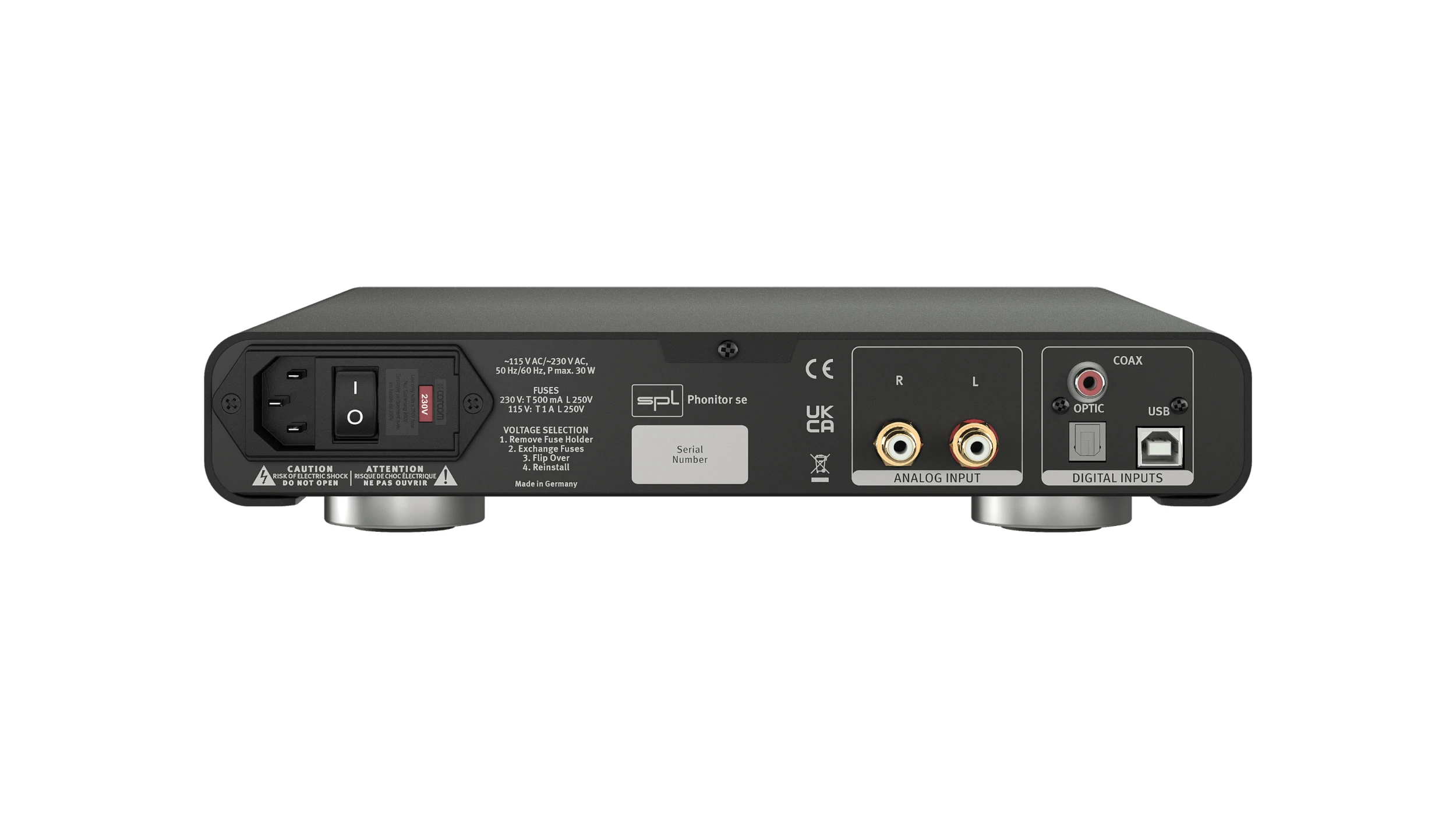

The Phonitor se is equipped with gold-plated RCA sockets for the analog input.
The optional DAC768xs adds three more digital sources: USB, COAX und OPTICAL.
Analog input: RCA
Maximum input gain: 32.5 dBu
Input impedance: 20 kΩ
Digital Inputs: DAC768xs (optional)
Coaxial SPDIF (RCA), PCM sample rates: 44.1/48/88.2/96/176.4/192 kHz
Optical SPDIF (Toslink F06), PCM sample rates: 44.1/48/88.2/96/with Glass fibre <1m: 176.4/192 kHz
USB (B), PCM sample rates: 44.1/48/88.2/96/176.4/192/352.8/384/705.6/768 kHz
USB (B), DSD over PCM (DoP), sample ratesL 2.8 (DSD64), 5.6 (DSD128), 11.2 (DSD256) MHz
0 dBFS calibrated to: 15 dBu
Standard Headphones Output, 6.35 mm (1/4") TRS Jack
Wiring: Tip = Left, Ring = Right, Sleeve = GND
Source impedance: 0.18 Ω
Damping factor (40 Ω): 180
Frequency range (0 dBu): 10 Hz – 100 kHz
Crosstalk (1 kHz, 0 dBu): -90 dB
THD + N (1 kHz, 0 dBu) 0.00091 %
Noise (A-weighted): -103 dBu
Output power (1 kHz, 1% THD, 250 Ω): 2 x 5 W
Output power (1 kHz, 1% THD, 32 Ω): 2 x 1 W
Dynamic range: 135.5 dB
Internal Linear Power Supply with Shielded Toroidal Transformer
Operating voltage for analog audio: +/- 60 V
Operating voltage for relays and LEDs: +12 V
Mains Power Supply
Mains voltage (selectable, see fuse chamber): 230 V AC / 50; 115 V AC / 60 Hz
Fuse for 230 V: T 0.5 A
Fuse for 115 V: T 1 A
Power consumption: max. 30 VA
Stand-by power consumption: < 0,3 W
Dimensions & Weight
W x H x D (width x height incl. feet x depth): 278 x 57 x 300 mm
Unit weight: 2,8 kg
Shipping weight (incl. packaging): 5 kg
