SPL Phonitor x - Pojačalo za slušalice
Headphone Amplifier and Preamplifier
The Phonitor x is both an outstanding headphone amplifier and an excellent preamplifier that can be used to directly drive power amplifiers or active speakers. With the optional DA converter, it not only plays from analog sources, but also directly from digital sources. The Phonitor Matrix allows speaker-like listening via headphones.
Thanks to VOLTAiR technology, it offers all this in the highest possible sound quality.
Analog inputs & outputs: XLR (balanced) and RCA
Maximum input & output gain: 32.5 dBu
Input impedance (RCA): 20 kΩ
Input impedance (XLR): 20 kΩ
Output impedance: 75 Ω
Common mode rejection ratio (XLR): 82 dB
Frequency range (0 dBu): 10 Hz – 100 kHz
THD + N (1 kHz, 0 dBu): 0.00085 %
Crosstalk (1 kHz, 0 dBu): -90 dB
Noise (A-weighted): -103 dBu
Dynamic range: 135 dB

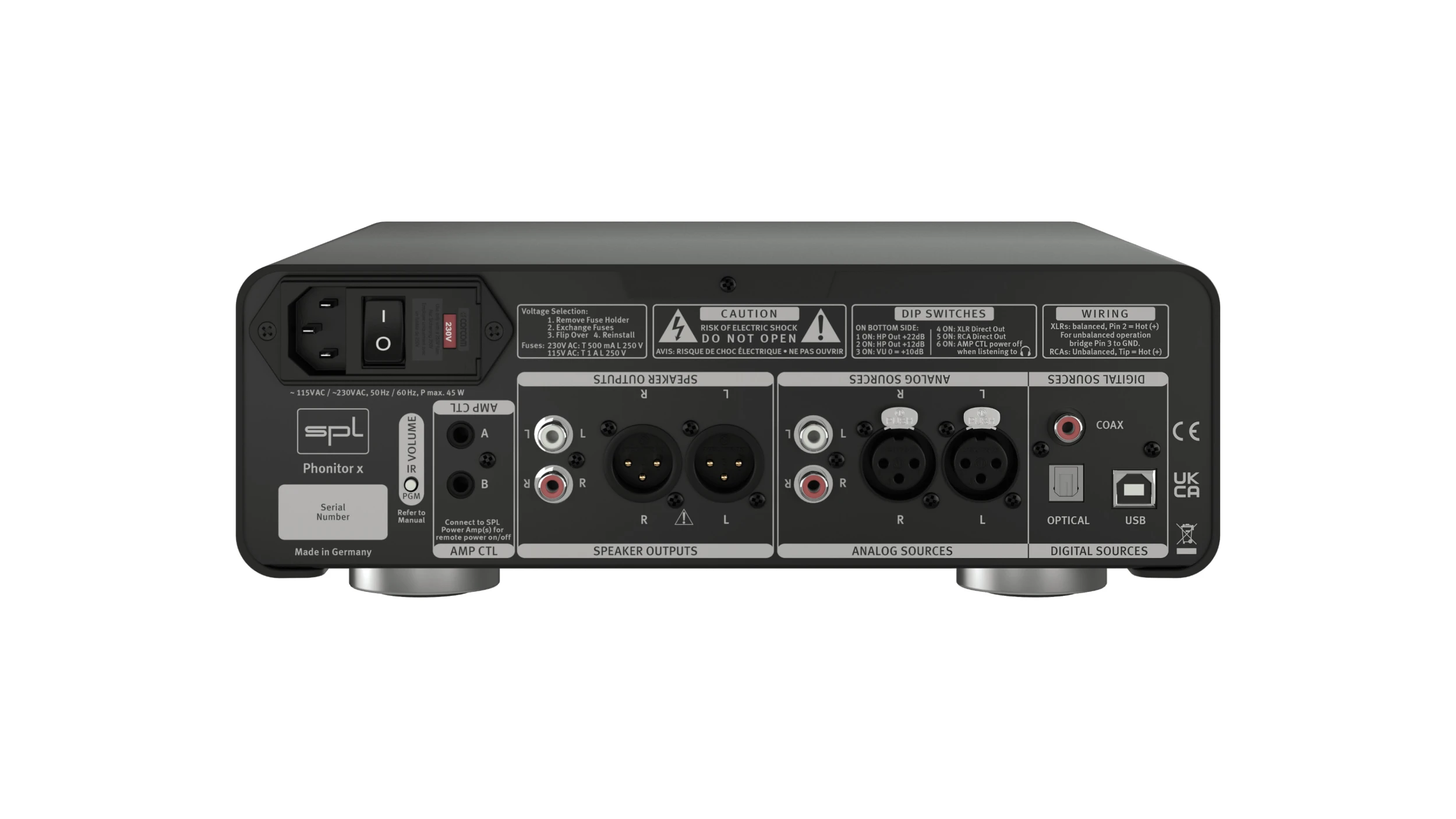

Digital Inputs: DAC768xs (optional)
Coaxial SPDIF (RCA), PCM sample rates: 44.1/48/88.2/96/176.4/192 kHz
Optical SPDIF (Toslink F06), PCM sample rates: 44.1/48/88.2/96/with Glass fibre <1m: 176.4/192 kHz
USB (B), PCM sample rates: 44.1/48/88.2/96/176.4/192/352.8/384/705.6/768 kHz
USB (B), DSD over PCM (DoP), sample rates: 2.8 (DSD64), 5.6 (DSD128), 11.2 (DSD256) MHz
0 dBFS calibrated to: 15 dBu
Balanced Headphones Output: 4-pol XLR
Pin wiring: 1 = L (+), 2 = L (-), 3 = R (+), 4 = R (-)
Source impedance: 0.36 Ω
Damping factor (40 ohms): 180
Frequency range (0 dBu): 10 Hz – 100 kHz
Crosstalk (1 kHz, 0 dBu): -90 dB
THD + N (1 kHz, 0 dBu): 0.00082 %
Noise (A-weighted): -98 dBu
Output power (1 kHz, 1% THD, 250 Ω): 2 x 3.5 W
Output power (1 kHz, 1% THD, 32 Ω): 2 x 0.7 W
Dynamic range: 130.5 dB
Standard Headphones Output: 6.35 mm (1/4") TRS Jack
Wiring: Tip = Left, Ring = Right, Sleeve = GND
Source impedance: 0.18 Ω
Damping factor (40 ohms): 180
Frequency range (0 dBu): 10 Hz – 100 kHz
Crosstalk (1 kHz, 0 dBu): -90 dB
THD + N (1 kHz, 0 dBu): 0.00082 %
Noise (A-weighted): -103 dBu
Output power (1 kHz, 1% THD, 250 Ω): 2 x 5 W
Output power (1 kHz, 1% THD, 32 Ω): 2 x 1 W
Dynamic range: 135.5 dB
Internal Linear Power Supply with Shielded Toroidal Transformer
Operating voltage for analog audio: +/- 60 V
Operating voltage for relays and LEDs: +12 V
Mains Power Supply
Mains voltage (selectable, see fuse chamber): 230 V AC / 50; 115 V AC / 60 Hz
Fuse for 230 V: T 0.5 A
Fuse for 115 V: T 1 A
Power consumption: max. 40 VA
Stand-by power consumption: < 0.3 W
Dimensions & Weight
W x H x D (width x height incl. feet x depth): 278 x 100 x 300 mm
Unit weight: 4.4 kg
Shipping weight (incl. packaging): 5.65 kg
