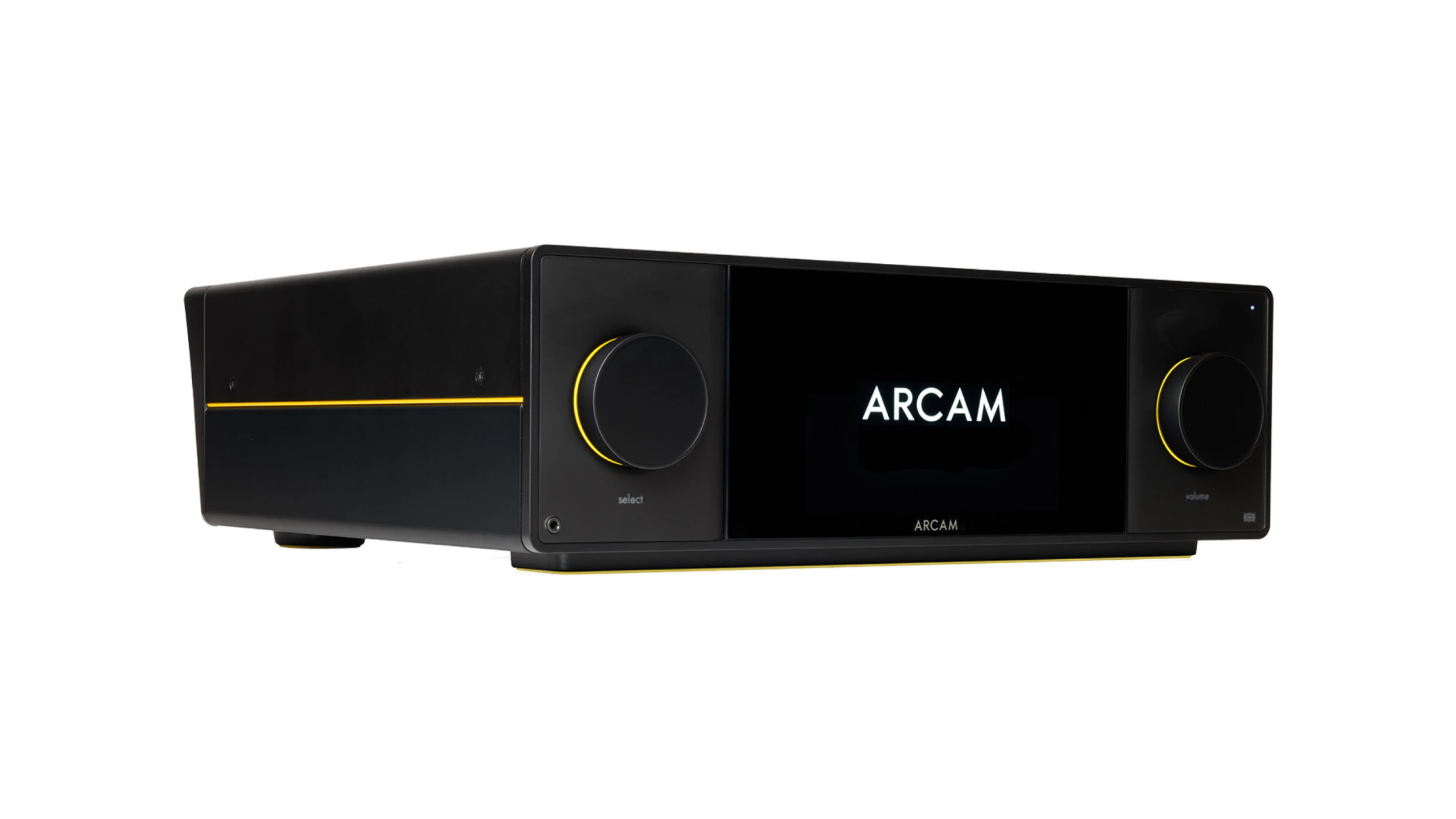

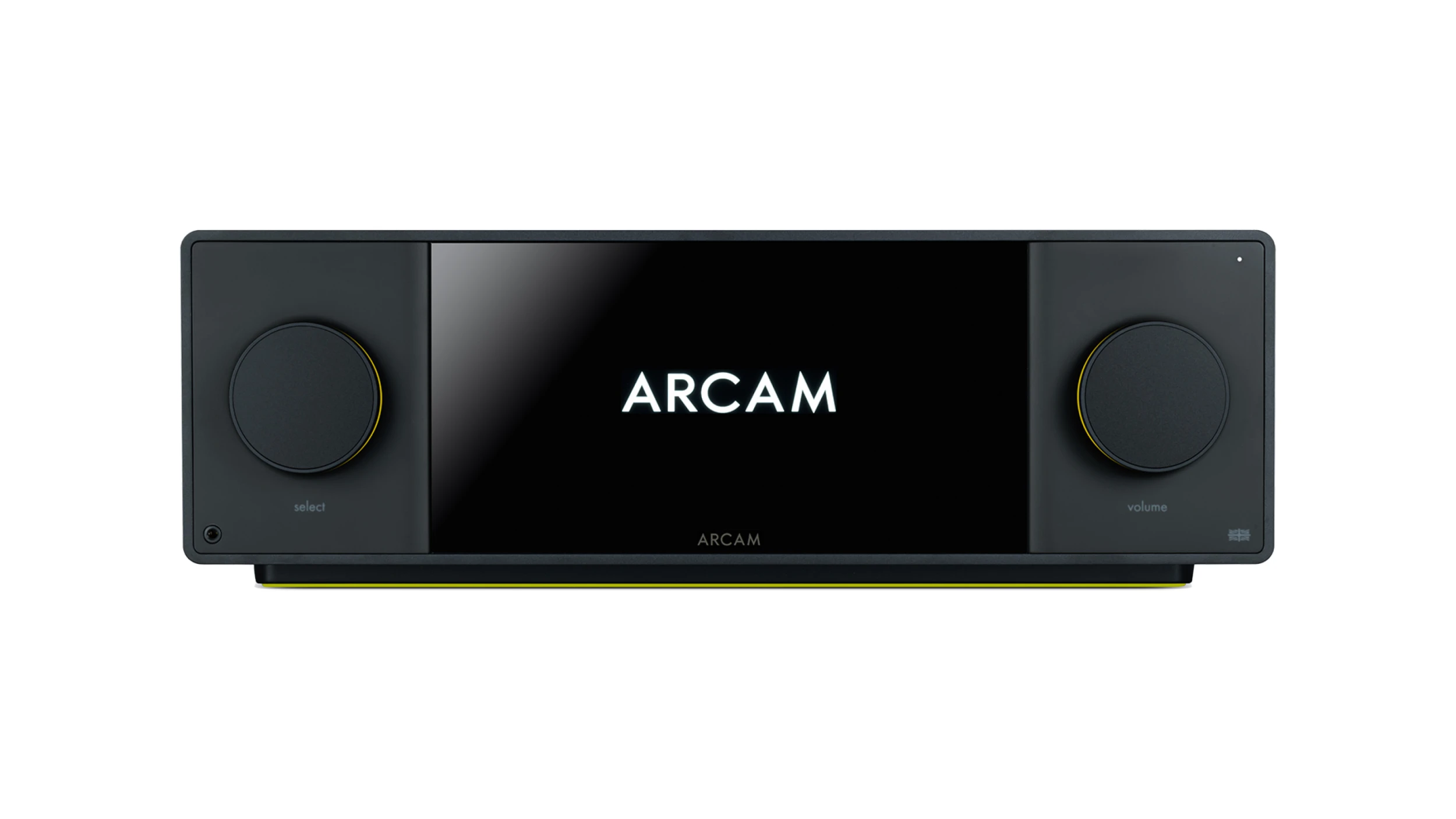

Arcam SA45 - Integrisano pojačalo
The ARCAM SA45 is the all-in-one streaming system for the dedicated music lover. It includes hard-won technologies for preserving the most delicate sounds and reproducing music with all its subtleties, nuances and excitement intact. Expertly designed in Cambridge UK, it is born of our best integrated amplifier, the ARCAM A49. With fully balanced digital and analogue audio paths, an all-new digital audio and streaming platform, new linear toroidal power supply design, new user interface and new app, the SA45 is a comprehensive powerhouse of music.
Services
• Works with (apps):
• ARCAM Radia
• Spotify (Connect)
• Tidal (Connect)
• Qobuz (Connect)
• Roon Ready
Works with (services):
• Apple Airplay
• Google Cast
ARCAM Radia supported services (Global):
• Internet Radio
• Podcasts
• UPnP
• USB Media (using USB-A mass storage input)
Continuous power output (0.5% THD), per channel
• 2 channels driven, 20Hz—20kHz, 8O: 180W
• 2 channels driven, 1kHz, 4O: 300W
• Harmonic distortion, 80% power, 8O at 1kHz: 0.002%
Analogue Inputs
Number of inputs: 3x RCA pairs + 1 XLR pair
Phono Inputs: MM and MC
Frequency response: 20Hz—20kHz ± 0.2dB
Signal/noise ratio (A-wtd, ref. 50W, 1V input): 106dB
Digital Inputs
Supported Streaming media: FLAC, WAV (LPCM), AAC, ALAC, AIFF, DSD (up to 256), MP3, MP4, OGG, WMA
Supported Streaming Bit depth: 16, 24, 32
Supported Streaming sample rates (kHz): Up to 384 kHz
Gapless Playback: Yes
Digital Audio Inputs: 1x HDMI eARC, 2x Coaxial (RCA), 2x Optical (Toslink)
Supported Digital input Bit depth: 16, 24
Supported Digital input sample rates (kHz): Up to 192 kHz
Frequency response (filter 1): 20Hz—20kHz ± 0.2dB
Signal/noise ratio (A-wtd, ref. 50W, 0dBFS): 110dB
Wireless Specifications
• Bluetooth Profile 5.4; A2DP Sink/Source, AVRCP, BLE, Snapdragon Sound, AAC, LE Audio, Auracast
• Bluetooth Transmitter Frequency and Power: 2,400 MHz to 2,483.5 MHz: <20dBm
• Wi-Fi Network: IEEE 802.11 a/b/g/n/ac/ax (2.4GHz/5GHz)
• 2.4G Wi-Fi Transmitter Frequency Range and Power:
• 2400-2483.5 MHz (USA 11 Channels, Europe and Others 13 Channels): <20dBm
• 5G Wi-Fi Transmitter Frequency Range and Power:
• 5150-5250 MHz <23dBm
• 5250-5350 MHz <20dBm
• 5470-5725 MHz <20dBm (Not used in China)
• 5725-5850 MHz <14dBm for EU, <33dBm for other regions.
General
Mains voltage: 100V or 110–120V or 220–240V, 50–60Hz
Power consumption (maximum): 1000W
Power consumption (standby): <0.5W
Dimensions W x D (including speaker terminals) x H (including feet): 432 x 390 x 140mm
Weight (net): 17 kg
Weight (packed): 20 kg
Supplied accessories:
• Mains lead(s)
• Remote control with 2 x AAA batteries
• Measurement Microphone
• 5m USB Cable
• Quick Start Guide
• Important Safety Instructions
