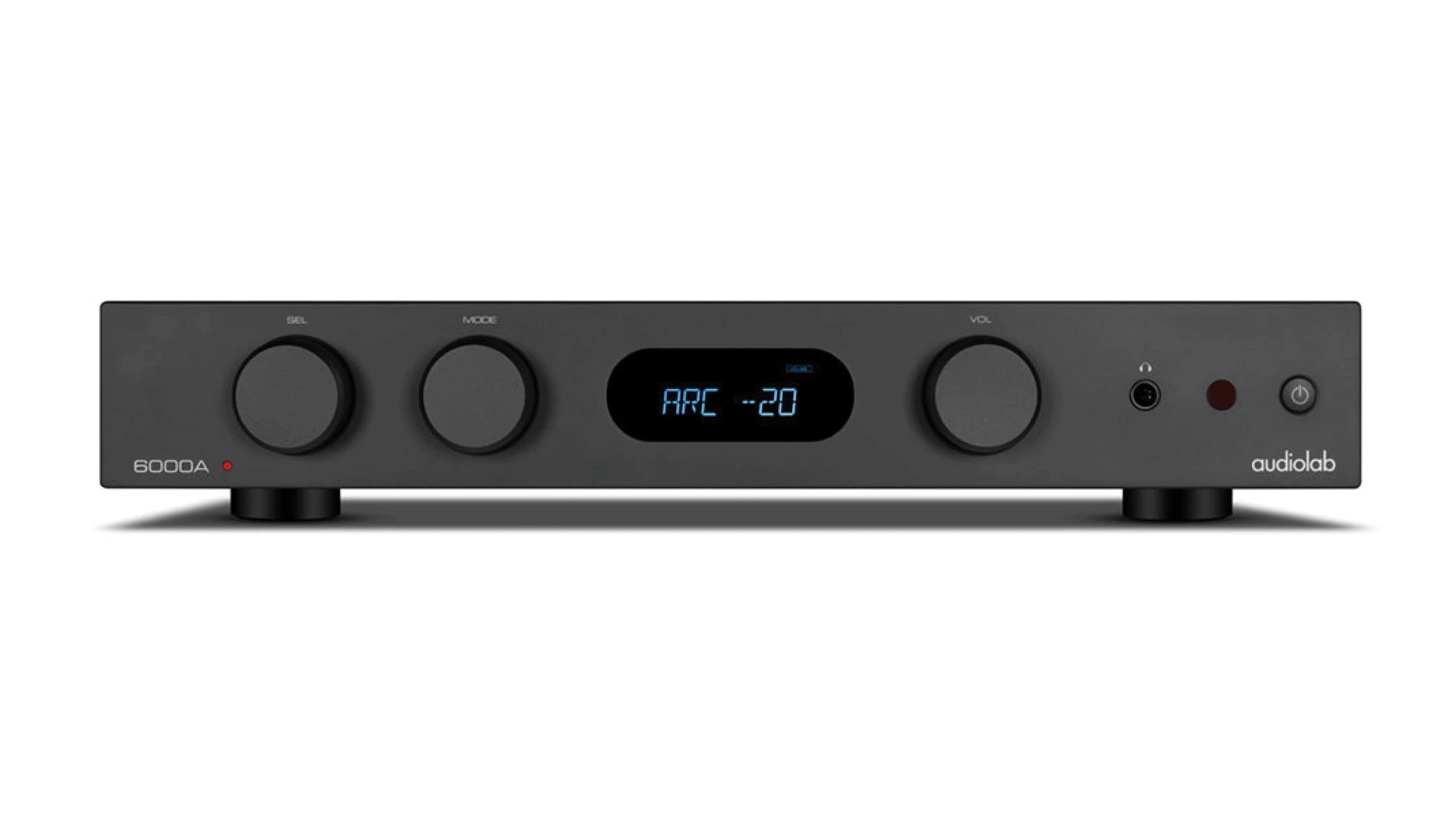

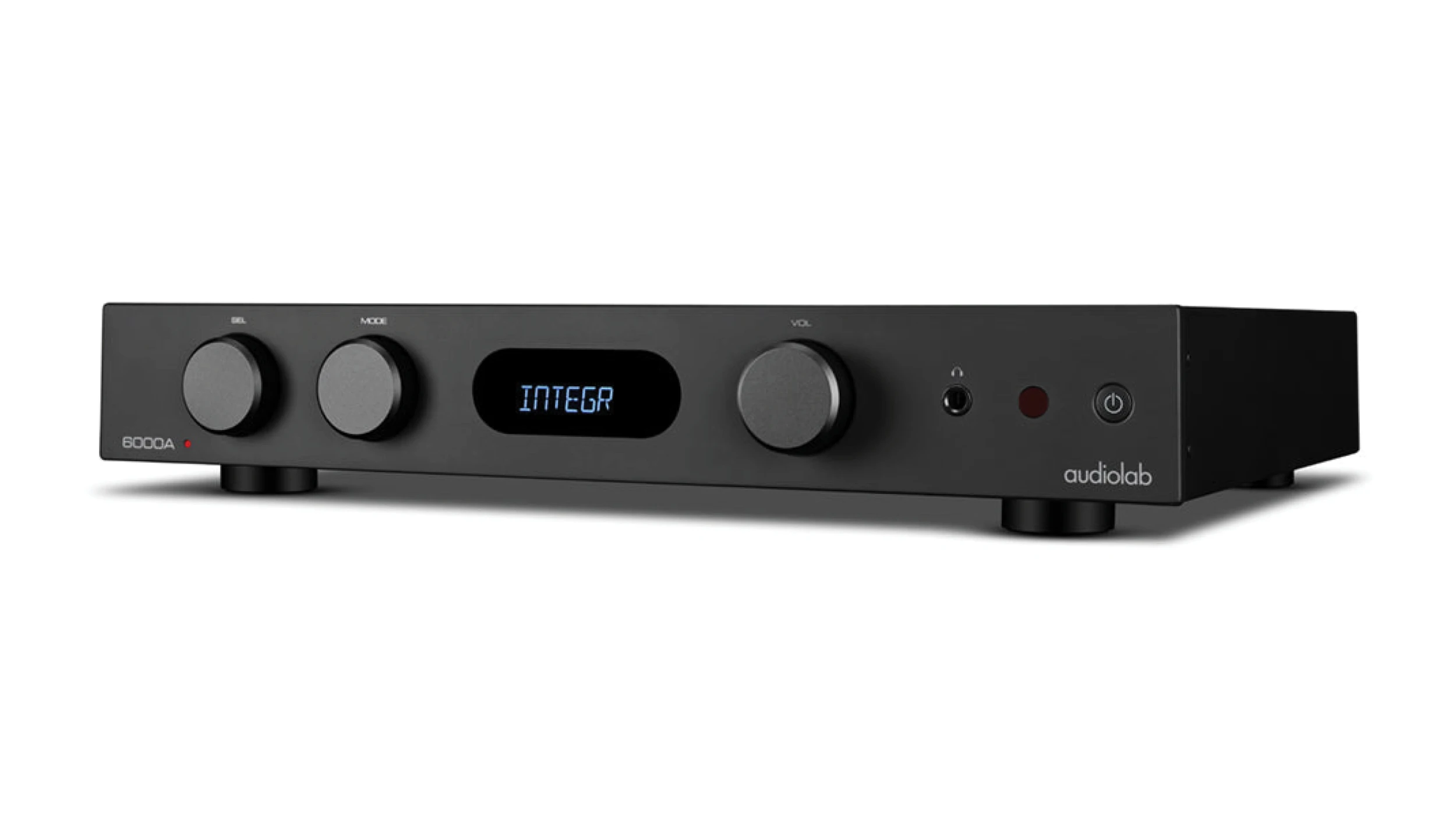

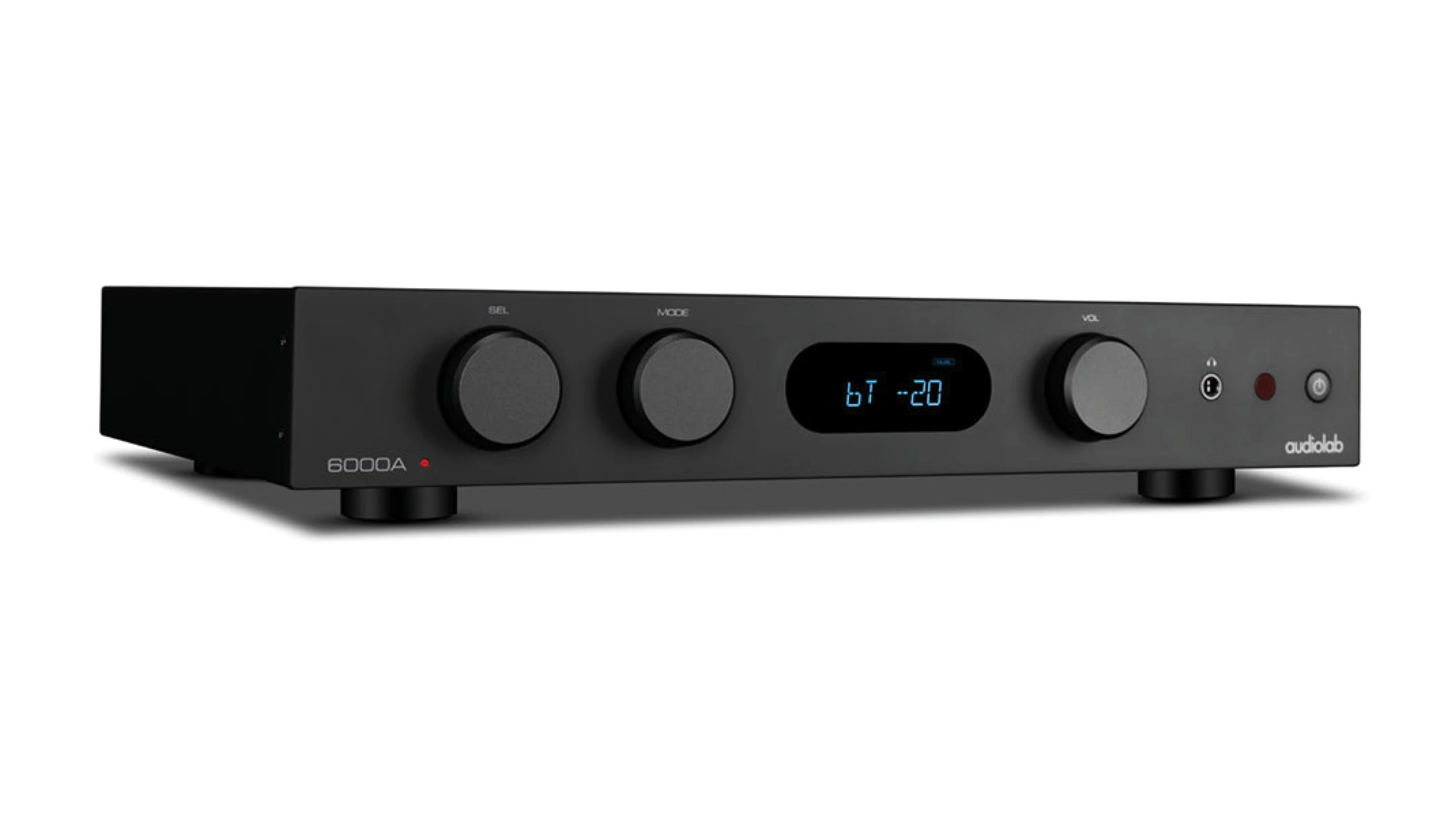

Audiolab 6000A MKII Black - Integrisano Pojačalo
Building on the legacy of the award-winning 6000A, the Audiolab 6000A MKII introduces key advancements inspired by the flagship 9000A and versatile 7000A models. With refined circuitry and enhanced performance, it continues Audiolab’s tradition of delivering exceptional sound at an accessible price point—perfect for audiophiles seeking high-quality audio from a brand with over 40 years of innovation.
General Description: Integrated Amplifier
Design Philosophy and Core Technology:
• 2x50W (8 ohms) / 2x75 (4 ohms)
• Class AB Design
• ES9038Q2M 32-bit DAC
• Bluetooth 5.1 (aptX / aptX HD)
• Dedicated High Performance Low Noise MM Phono stage
• Dedicated Current-Feedback Headphone Amp
• Integrated / Pre-Power / Pre Modes only Modes

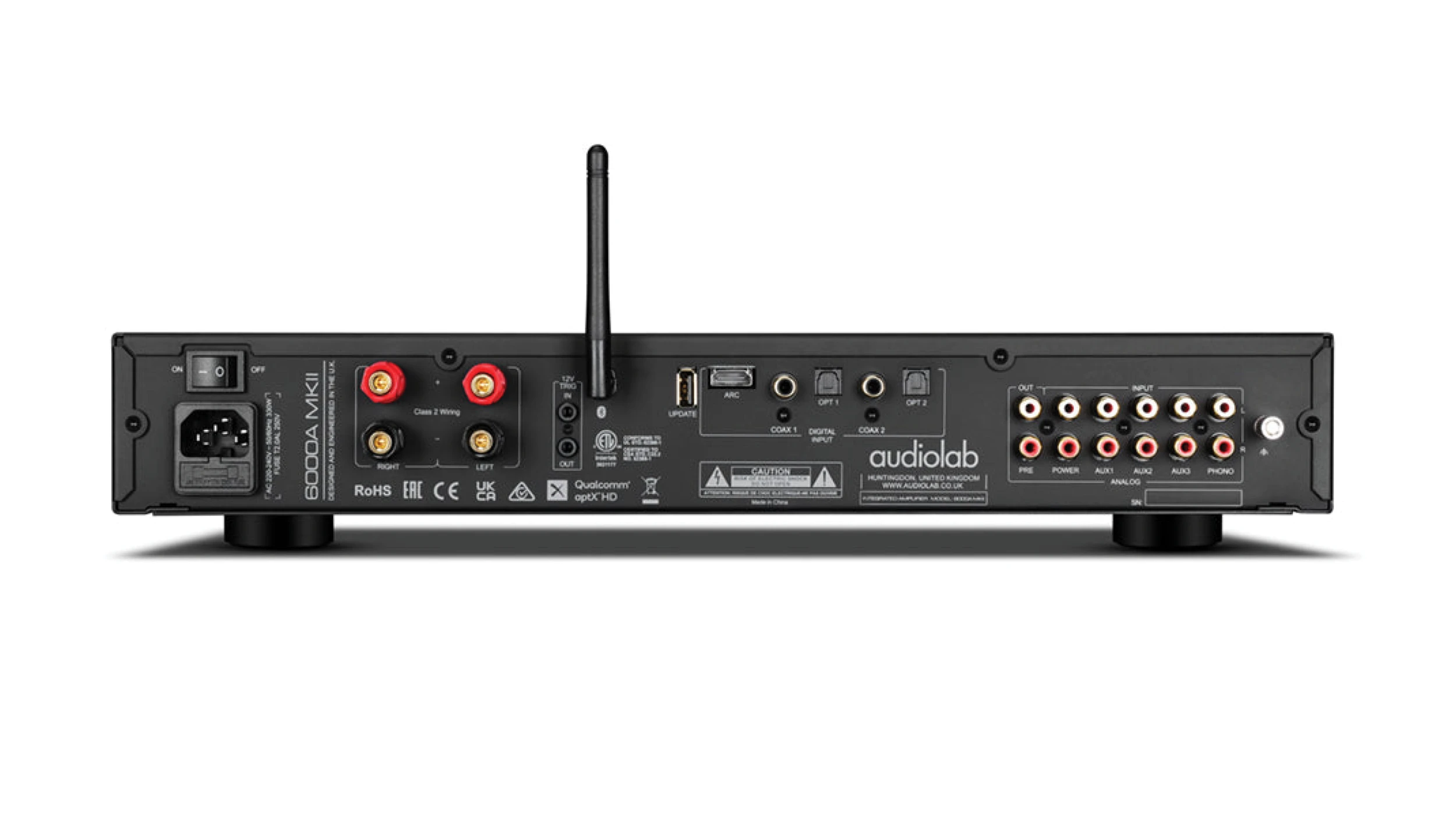

Inputs:
• 3 x Analogue, 1 x Phono (MM), 1 x Power Amplifier,
• 2 x SPDIF (Coax), 2 x SPDIF (Optical), 1 x HDMI ARC,
• 1 x Bluetooth (aptX / aptX HD), 1 x 12V Trigger
Outputs: 1 x PRE Amplifier, 1 x Stereo Speaker, 1 x Headphone, 1 x 12V Trigger
Sampling Frequency: Optical / Coaxial: 44.1kHz-192kHz
Preamplifier Section
Gain: +8dB (Line); +54dB (Phono MM)
Input Sensitivity: 720mV (Line, Volume = 0dB); 3.1mV (Phone MM, Volume = 0dB)
Input lmpedance: 10K (Line); 47k/100pF (Phono MM)
Total Harmonic Distortion (THD): <0.0004% (1kHz @ 2V, Volume = 0dB)
Frequency Response: 20Hz-20kHz (+/-0.1dB)
Output Voltage: 2.3V max. (Volume = 0dB)
Output Impedance: 120 ohms
Signal-to-Noise Ratio: >110dB (Line, A-weighted); > 79dB (Phono MM, A-weighted)
DAC
D to A Converter: ES9038Q2M
Total Harmonic Distortion (THD): <0.001% (1KHz @ 0dBFS)
Output Level (OdBFS, 1kHz): 2.05Vrms
Max.Sampling Frequency: Optical, Coaxial: 192kHz;
Signal-to-Noise Ratio (S/N): >116dB (A-weighted)
Power Amplifier Section
Gain: +29dB
Rated Power Output: 2 x 50W (8 ohms, THD<1%); 2 x 75W (4 ohms, THD<1%)
Frequency Response: 20Hz-20kHz (+/-0.3dB)
Total Harmonic Distortion (THD) Input Sensitivity:
• <0.003% (1kHz @ 50W / 8 ohms)
• 7720mV
Signal-to-Noise Ratio (S/N): >109dB (A-weighted)
Max. Output Current: 11A
