General
Unit (W × H × D): 434 × 182 × 443 mm
Net Weight: 24.6 kg / 54.2 lbs
Panel Cover: Silver, Black

Specifications
Rated Output Power:
• 80W + 80W (8 ohm,20 Hz-20 kHz,THD 0.07%)
• 160W + 160W (4 ohm, 1 kHz, THD 0.7%)
Total Harmonic distortion: 0.01 % (Rated output: –3 dB), 8 ohm/ohms, 1 kHz
Input Sensitivity: Phono input:
• MM: 2.5 mV / 47 kohm
• MC: 200 μV / 100 ohm
Input Sensitivity: CD/LINE/RECORDER: 135 mV / 19 kohm
Input Sensitivity: Power Amp input: 1.0V / 15 kohm (EXT. PRE)
Signal to Noise Ratio:
• PHONO (MM): 89 dB
• PHONO (MC): 74 dB
• CD: 107 dB
Power Consumption: 400W
Power Consumption at Standby:
• 0.2W TV autoplay off
• 0.4W TV autoplay on

Audio Features
Power Amplifier Circuit:
• New UHC-MOS
• Single Push Pull (7)
Preamplifier Circuit: Variable Gain Preamplifier (OP AMP)
Bass / Treble / Mid / Balance Control: Yes / Yes / No / Yes
Source Direct: Yes
Analog Amp Mode: Yes (button on front panel)
DAC Circuit: ES9018K2M × 4
Digital Processing: Ultra AL32 Processing
DAC Master Clock Design: Yes
Asyncronous mode (for USB-B input): Yes

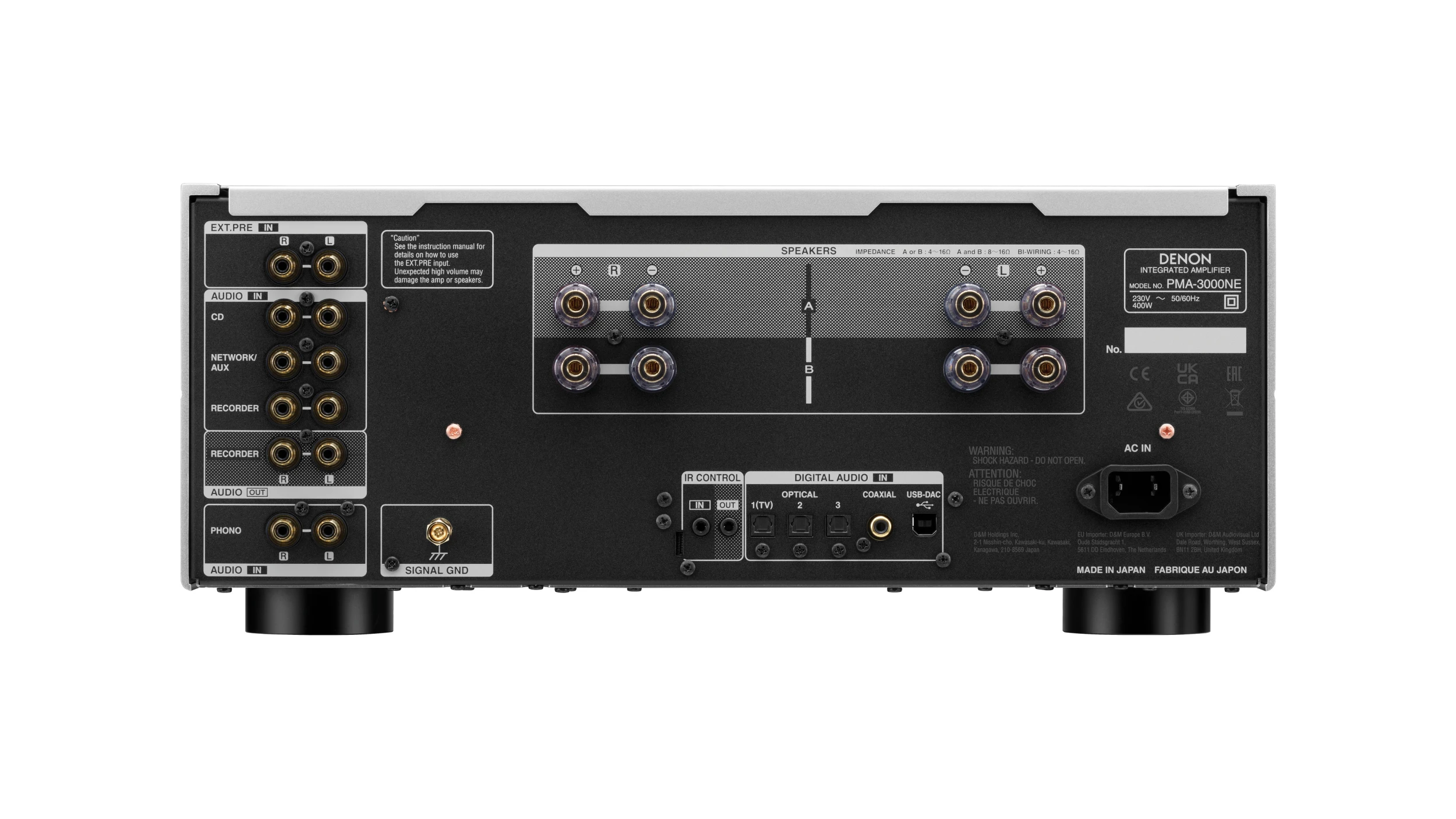

Connectivity
Phono Input: Yes (MM / MC) *default = MM
Analog Input (include Phono) / REC Out (RCA): 4/1 (Gold Plated) (Brass Machining type for all CD/PHONO/AUX/RECORDER)
Optical input / output (Maximum Support): 3 / 0 (192 kHz/24-bit)
Coaxial input / output (Maximum Support): 1 / 0 (192 kHz/24-bit)
Speaker Terminal: AVR-A1H type Gold Plated w/Cover
Headphone Output: 1 (Turns off the speaker automatically when headphone is inserted)
Remote Control: Yes
Remote Control Bus Terminal: Yes (mini)
Wi-Fi: No
HEOS: No
USB B (USB DAC): 1 (Rear)
PCM Sample Rate / Resolution: ~384 kHz/32-bit
DSD Audio Streaming: ~11.2MHz
