Musical Fidelity M2SI Black - Integrisano pojačalo
The M2si is a affordable and puristic audiophile integrated amp, solely designed for maximum musical fidelity.
The M2si integrated amplifier takes our premium-amp technology and applies it to a more affordable price point. Drawing upon the design philosophy and insights gleaned from our mighty TITAN flagship, along with the inclusion of high-end elements such as the robust metal controls, extruded aluminum front panel, and a chassis crafted entirely from metal, the M2si occupies an enviable position for discerning audiophiles seeking an unadulterated high-end amplifier.
Output
• Power: 72 Watts per channel into 8 Ohms; 137W into 4 ohms; 242W peaks into 2 ohms
• Voltage: 22 Volts RMS, 20Hz to 20 kHz; onset of clipping
• 62 Volts peak to peak
• Current: 25 Amps peak to peak
• Damping factor: 36
• Output devices: 1 pair per channel
Line input
• THD+N < 0.014 % typical, 20Hz to 20 kHz
• Signal / noise ratio > 96dB ‘A’-weighted
• Input impedance 40 k Ohms
• Frequency response +0, –0.1dB, 10Hz to 20 kHz

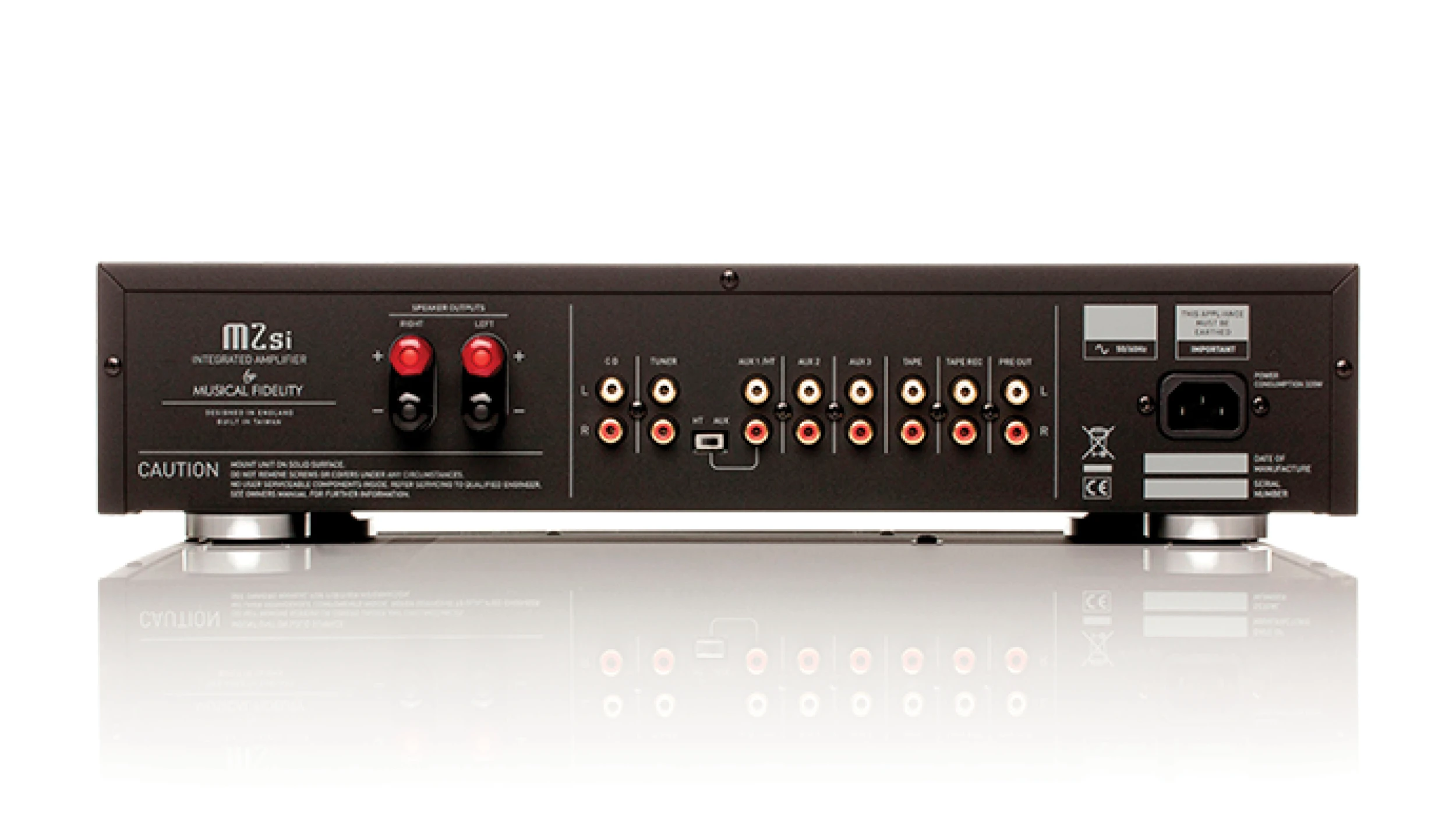

Connections
• Line level inputs 6 pairs line level RCA connectors
• Line level outputs 1 pair line level RCA connectors, constant level TAPE outputs
• 1 pair line level RCA connectors, preamp outputs for e.g. bi-amping
• Speaker outputs 2 pairs 4mm banana plug/binding posts
Power requirement
• Mains voltages 115/230VAC 50/60Hz (factory pre-set)
• 100VAC 50/60Hz (alternative)
• Consumption 320 Watts maximum
Weight
• Unit only, unboxed 9.2 kg (20¼ lbs)
• In shipping carton 13 kg (30⅔ lbs)
Dimensions
• Wide 440 mm (17⅓”)
• High, including feet 100 mm (4”)
• Deep (front to back) including terminals 400 mm (15¾”)
