Quad Artera Solus Aluminium Black - Integrisano Pojačalo
CD, DAC, Pre-amp with integrated amplifier

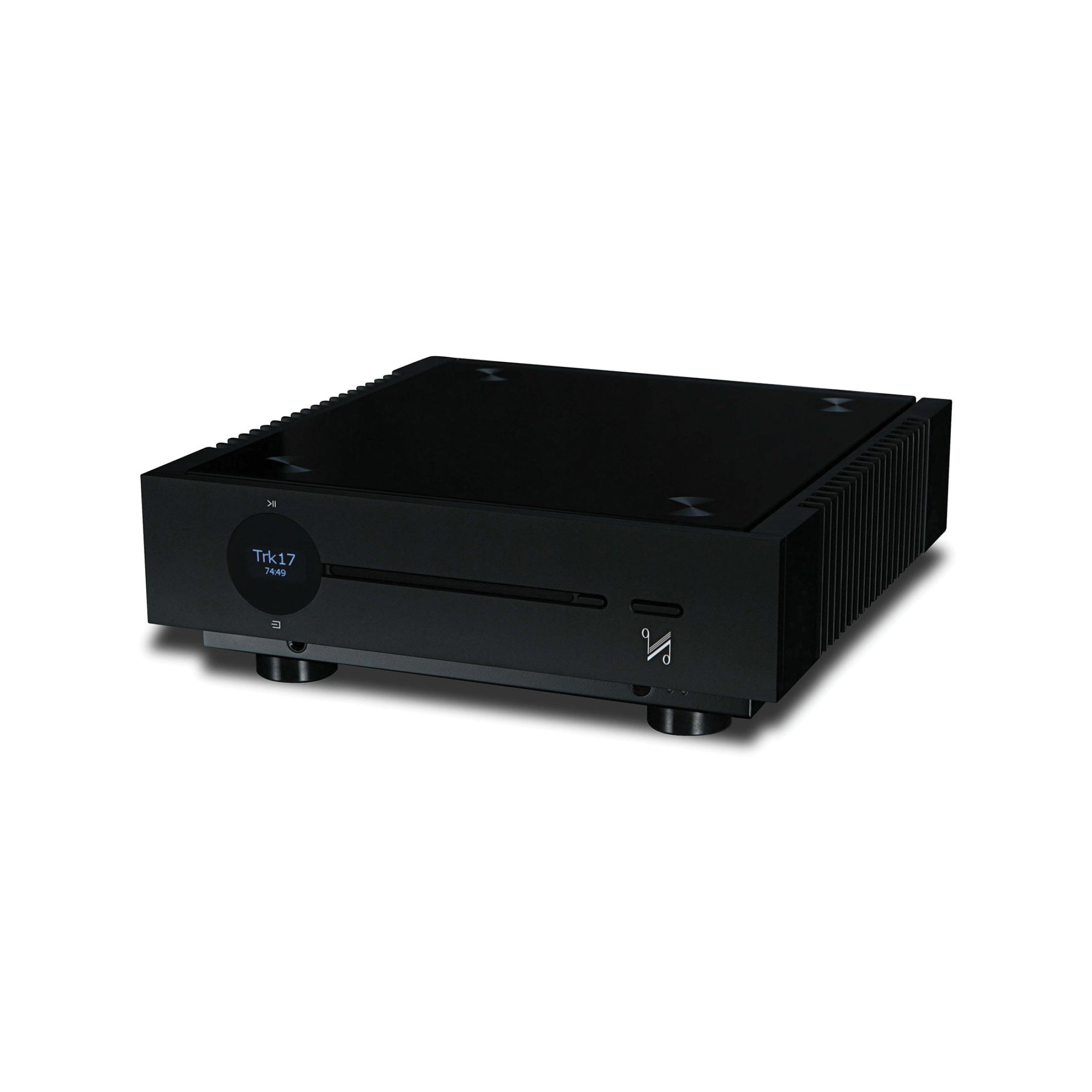

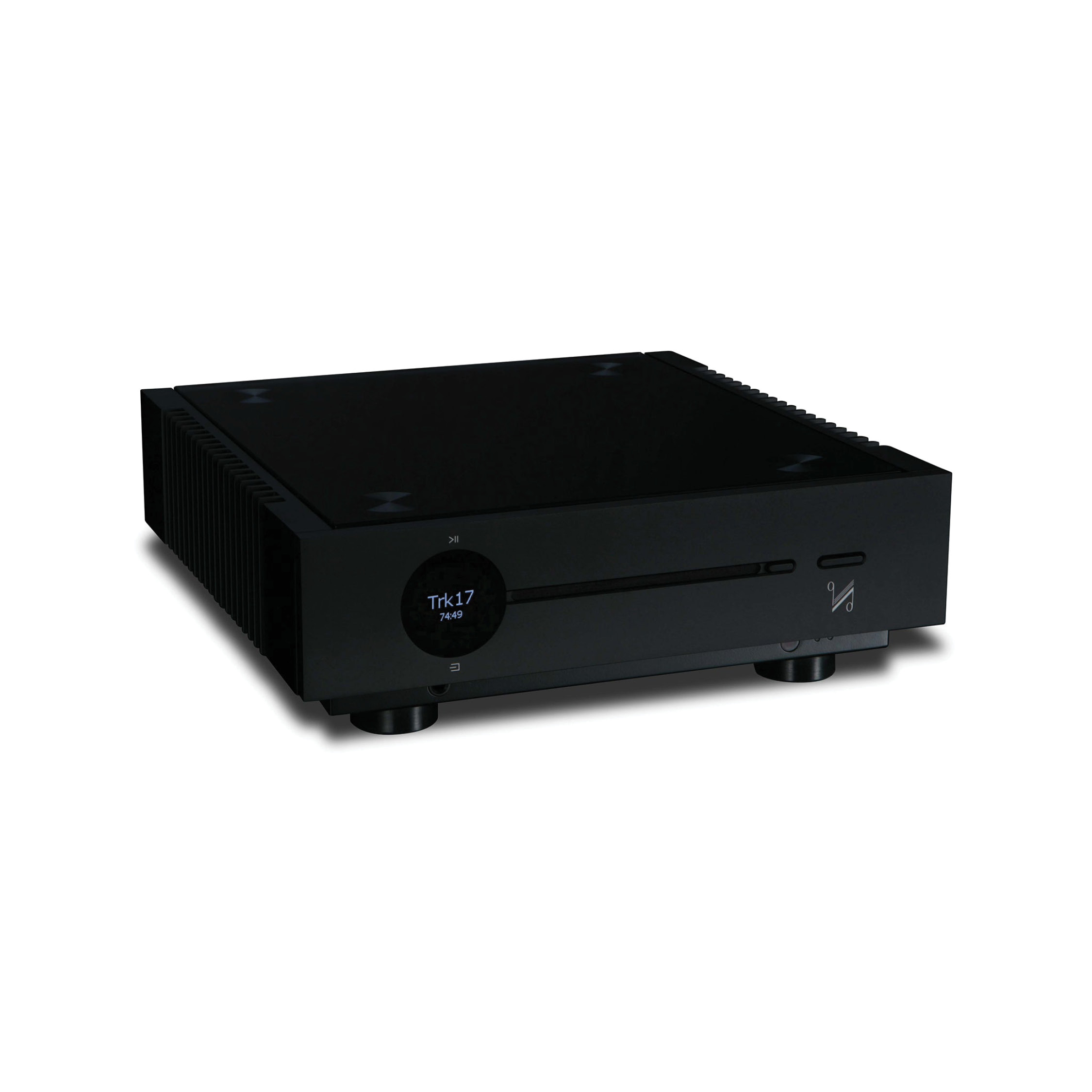

The Artera Solus – a multi-tasking hi-fi system packed into a single sleek and sophisticated box, combining a CD transport, DAC, pre-amplifier, and power amplifier in a single compact chassis, with extensive connectivity options including Bluetooth connectivity.
Model: Artera Solus
General Description: CD Player, DAC, Pre-Amp, Integrated amplifier and Bluetooth Connectivity
Key Technology & Features: DSD (up to DSD256 Compatible) BIuetooth (aptX)
Audio File Formats: ALAC, WAV, FLAC, AIFF, WMA, MP3, AAC, AAC_HE, AAC+, DSD64, DSD128, DSD256
D/A Converter: ESS ES9018 32bit DAC

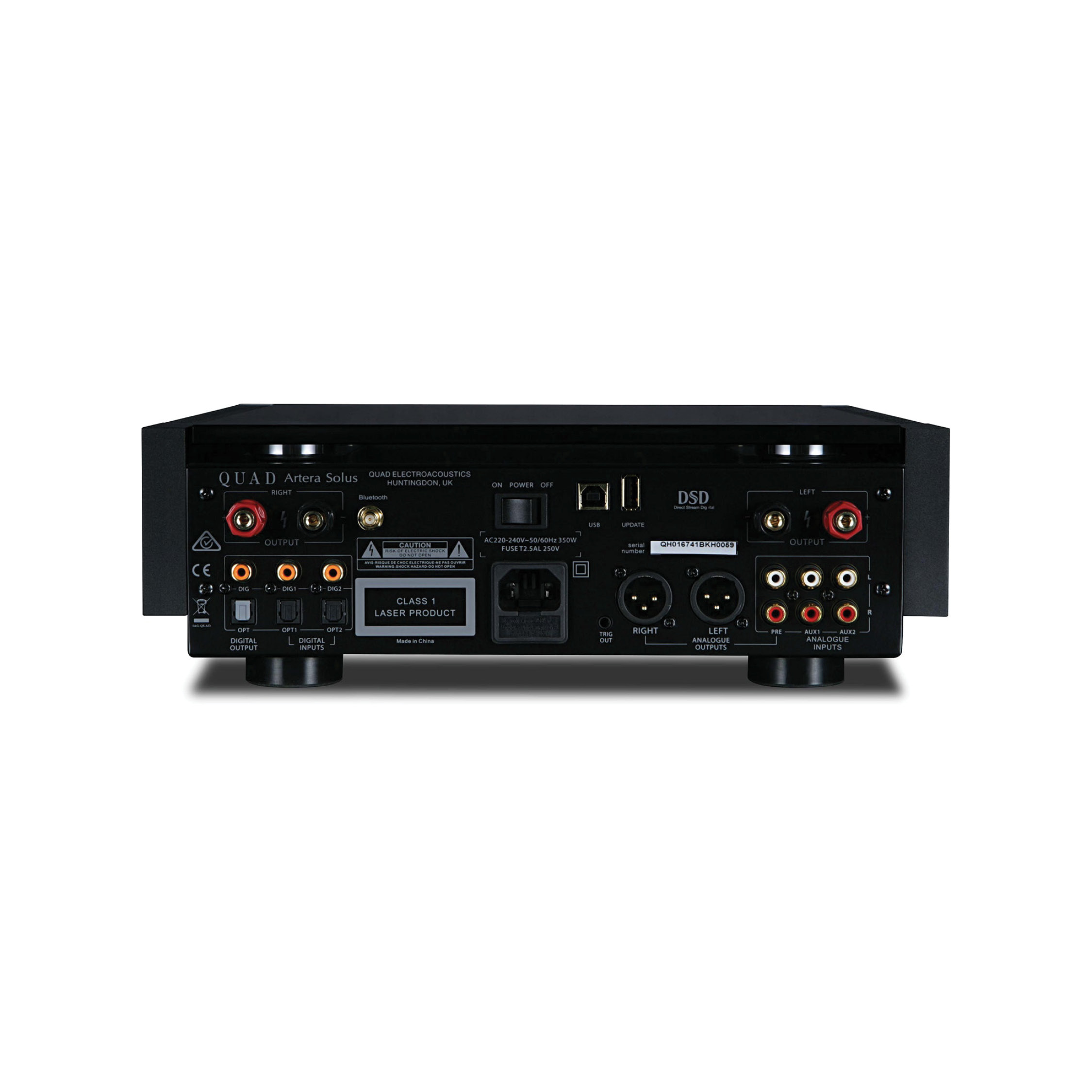

USB Input: USB B (PC / MAC)
Digital Audio Inputs: 2 x Optical TOSI ink, 2 x RCA(DIG1, DIG2)
Digital Audio Outputs: 1 x Optical TOSI ink, 1 x RCA (DIG)
Analogue Inputs: 2 x RCA (AUX1, AUX2)
Analogue Outputs: 2 x RCA, 2 x Balanced XLR, 6.3mm Headphone Jack
Speaker Outputs: Stereo Pair Binding Posts
Max. sample rates: 384kHz (USB), 192kHz (S/PDIF)
Sample Rate (Digital Inputs / Outputs): 44.1 -192kHz
Standby Power Consumption: <0.5W
Pre-Amplifier Section
Output Level (1 kHz) Variable Output:
• 0 - 4 Vrms (Pre Outputs)
• 70 - 8 Vrms (Balanced Outputs)
Frequency Response: 20Hz-20kHz, 1 kHz (± 0.2dB)
Total Harmonic Distortion: <0.002% (20Hz-20kHz)
Signal to Noise Ratio (S/N): >104dB A-weighted (ref: 1V , Volume=Max.)
Channel Separation: > 1 00dB (1 kHz)
Power Amplifier Section
Rated Power Output: 75Wpc (8ohms)
Frequency Response: ± 0.5dB (20Hz-20kHz, 1 kHz)
Total Harmonic Distortion: <0.009% (1 OW 20Hz-20kHz)
Signal to Noise Ratio (S/N): >110dB A-weighted (ref: 75W)
Channel Separation: >82dB A-weighted (ref: 1W)
Dynamic Range A-wtd: 98dB
Dimensions: 320 x 320 x 105mm
Net Weight: 11.84kg
