Quad Vena II White - Integrisano Pojačalo
Building on the strengths of its predecessor, the Vena II is an exceptionally neat and convenient way to bring true high-fidelity sound to the varied nature of modern music collections – from vinyl and CD to digital streaming and hi-res files – via all manner of playback devices.
Model: VENA II
Preamplifier Section

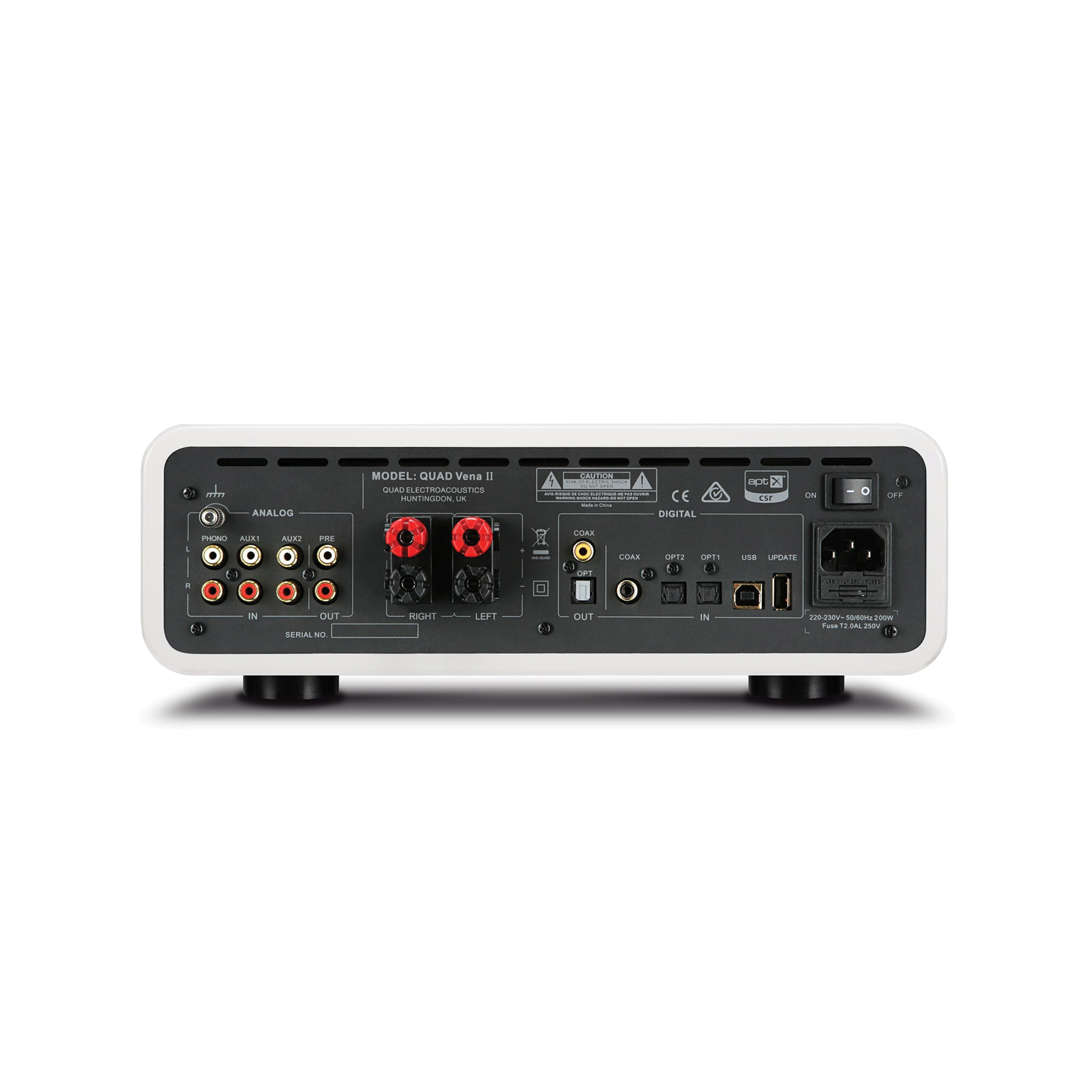

Analogue Inputs: 2x line-level RCA / 1x MM phono
Analogue Outputs: 1 x RCA (pre-out)
Analogue Input sensitivity: 450mV (line-level) / 4.1mV (MM phono)
Analogue Input impedance: 10kΩ (line-level); 47kΩ / 100pF (MM phono)
Frequency Response: 20Hz-20kHz (+/- 0.5dB)
Total Harmonic Distorion (THD): < 0.002%
Signal-to-Noise: > 110dB (A-weighted)
Power Amplifier Section
Power Output: 2x 45W RMS (8Ω) / 2x 65W RMS (4Ω)
Frequency Response: 20Hz-20kHz (+/- 0.5dB)
Total Harmonic Distortion (THD): < 0.005% (30W, 8Ω)
Signal-to-Noise: > 108dB (A-weighted)
Digital Section
DAC Chip: ESS Sabre32 ES9018K2M
Digital Inputs: 2x optical; 1x coaxial; 1x USB Type A; aptX Bluetooth
Max Sampling Frequency – USB: 384kHz PCM; DSD256
Max Sampling Frequency – Optical/Coaxial: 192kHz PCM
Digital Outputs: 1x coaxial; 1x optical
