Audiolab 9000P Aluminium Black - Pojačalo
The logical development of the 9000Q preamplifier raised the question of system expansion and thus led to the birth of the 9000P - the dedicated power amplifier option for the 9000 series.
Model: 9000P
General Description: Power Amplifier
Design Philosophy and Core Technology:
• Class AB power amplifier
• CFB (Complementary Feedback Technology)
• Stereo/Bridge mode

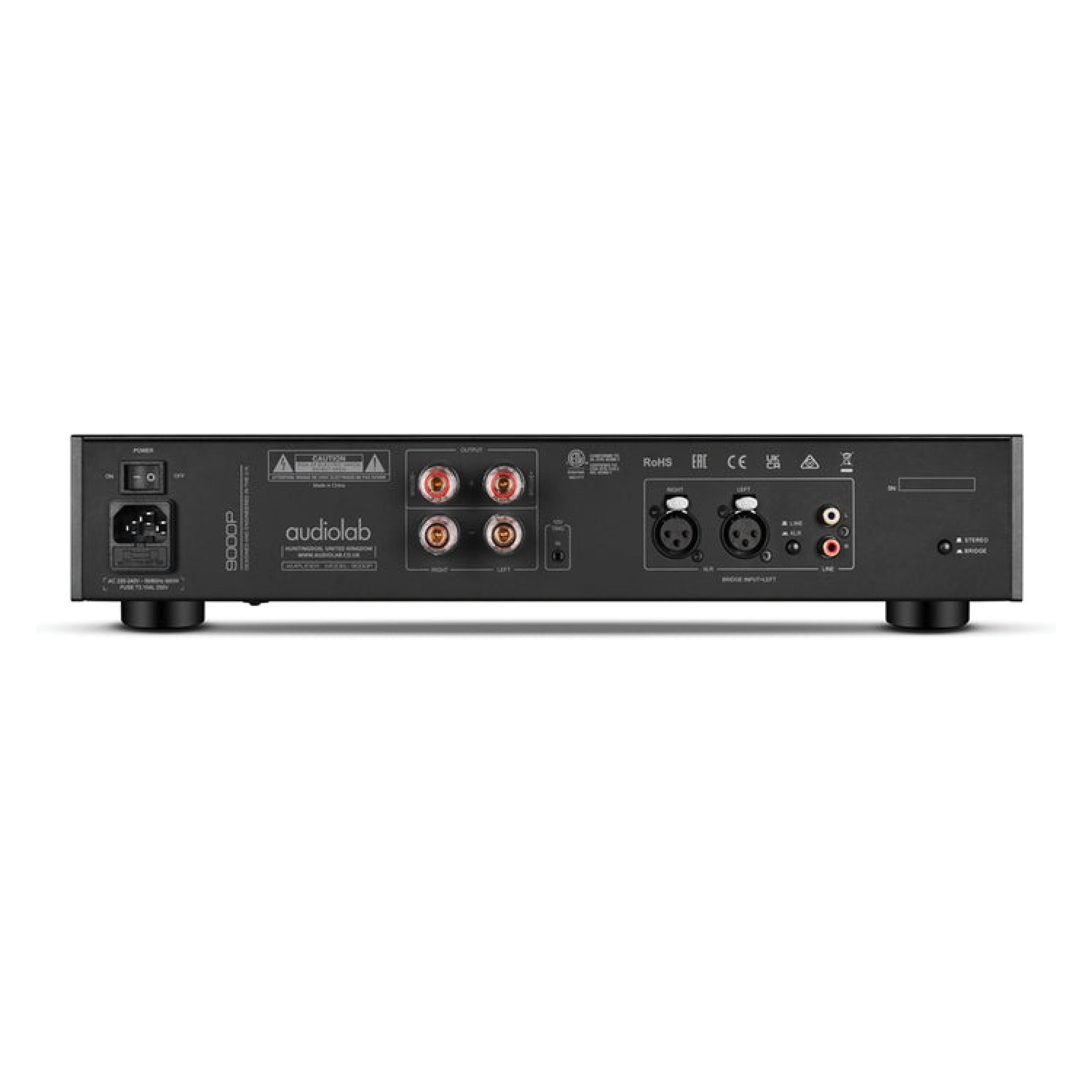

Inputs: 1 x Analogue, 1 x XLR, 1 x 12V Trigger
Outputs: 1 x Stereo Speaker
Power Amplifier Section (STEREO)
Gain: 29dB (RCA) / 23dB (XLR)
Rated Power Output:
• Stereo: 2 x 100W (8 ohms, THD <1%)
• Stereo: 2 x 160W (4 ohms, THD <1%)
• Bridged (Mono): 300W (8 ohms, THD <1%)
• Bridged (Mono): 380W (4 ohms, THD <1%)
Frequency Response: 20Hz - 20kHz (+/-0.3dB)
Total Harmonic Distortion (THD): <0.002% (1kHz)
Input Sensitivity:
• 1Vrms (RCA)
• 2Vrms (XLR)
Input Impedance: 10k ohms
Signal-to-Noise Ratio (S/N): > 112dB (A-weighted)
Max. Output Current: 15A
General
Standby Power Consumption: <0.5W
Net Weight: 9.2kg
Gross Weight: 10.6kg
Dimensions (mm) (W x H x D): 444 x 90 x 327 mm
Carton Size (mm) (W x H x D): 514 x 165 x 470 mm
Finish: Black/Silver
Power Requirements (depending on region):
• 220-240V - 50/60Hz
• 100-120V - 50/60Hz
Standard Accessories: Power Cord, User Manual
