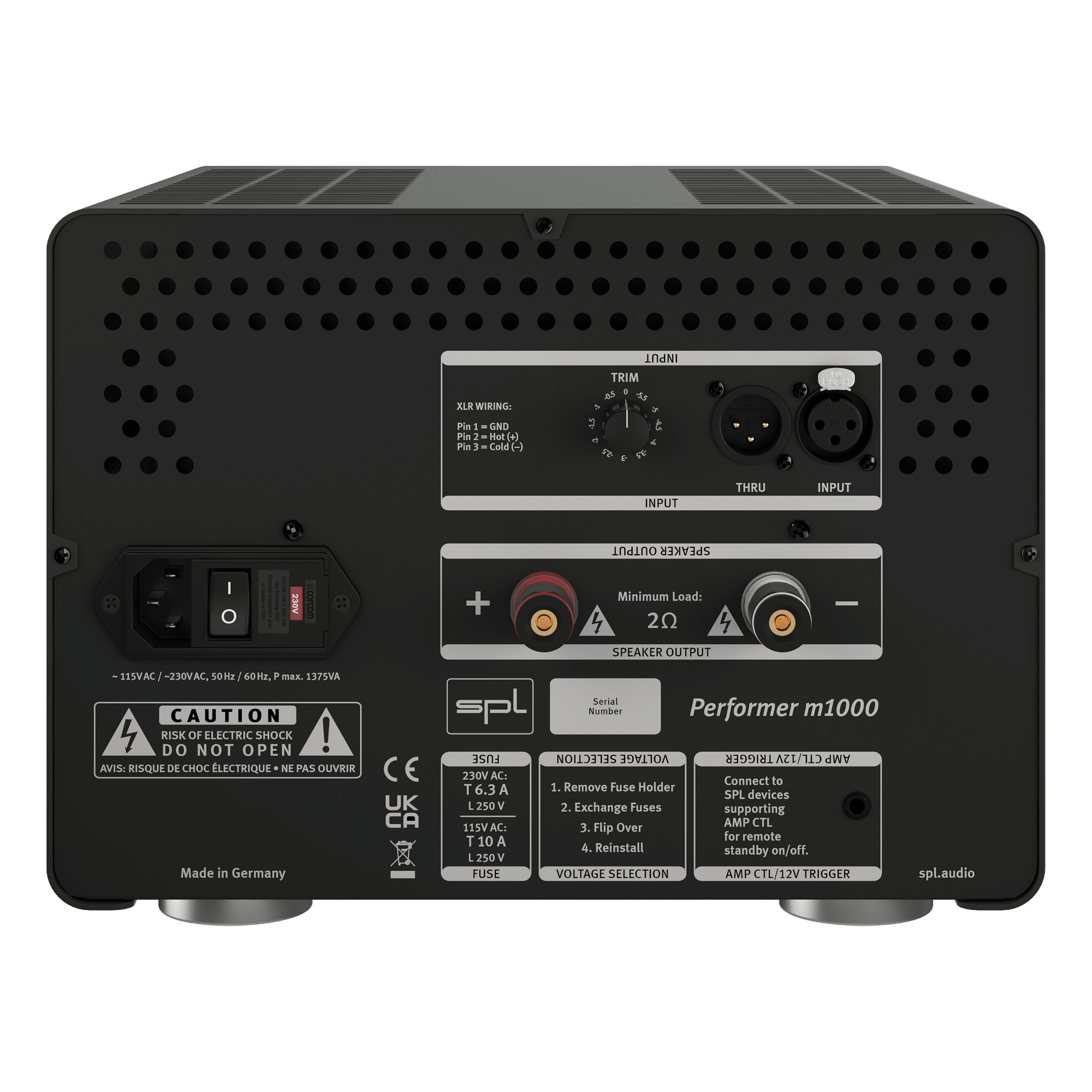

SPL Performer m1000 - Pojačalo snage
Our powerhouse mono-block.
With a power amplification of 750 W (4 Ω) [1000 W (2 Ω); 420 W (8 Ω)], this completely analog amplifier easily controls any loudspeaker. Thanks to the VOLTAiR technology the performance of the m1000 is detail-rich, vivid, honest and plain simply beautiful.
Analog Input & Thru: XLR (balanced)
Input impedance (THRU not connected): 20 kΩ
Common mode rejection (THRU not connected): -82 dBu
Input sensitivity: 12.5 dBu
Loudspeaker Output: Binding posts with ø4mm cable hole (screwable) and banana plug
Output power (RMS, 2 Ω): 1000 W
Harmonic distortion (1 kHz, 2 Ω): < 0.08 %
Output power (RMS, 4 Ω): 750 W
Harmonic distortion (1 kHz, 4 Ω): < 0.05 %
Output power (RMS, 8 Ω): 420 W
Harmonic distortion (1 kHz, 8 Ω): < 0.03 %
Output voltage (peak to peak): 180 V
Output voltage (RMS): 64.6 V
Output impedance (20 Hz – 20 kHz): < 0.031 Ω
Amplification gain: 26 dB
Damping factor (1 kHz, 8 Ohm): > 280
Frequency range (-3dB): 10 Hz – 80 kHz
Noise (A-weighted): -123 dB
Internal Linear Power Supply with Shielded Toroidal Transformer
Toroidal transformer: 1375 VA
Operating voltage (Input stage): +/- 60 V
Operating voltage (Power stage): +/- 91 V
Operating voltage for relays, LEDs, AMP CTL: + 12 V
Mains Power Supply
Mains voltage (selectable, see fuse chamber): 230 V AC / 50 Hz; 115 V AC / 60 Hz
Fuse 230 V: T 6.3 A
Fuse 115 V: T 10 A
Power consumption: max. 1375 VA
Idle power consumption: 50 W
Stand-by power consumption: < 0.3 W
Dimensions & Weight
Width x Height incl. feet x Depth (incl. controls and plugs): 278 x 205 x 345 mm (375 mm) mm
Unit weight: 24.8 kg
Shipping weight: 29.3 kg
