SPL Performer s900 - Pojačalo snage
Right in the center – with big sound!
The SPL Performer s900 stereo power amplifier marks the middle of the line and is based on the big SPL Performer s1200 stereo power amp in terms of the selection of components and conceptual design.
This is where sonic greatness meets performance specs that perfectly
match high-resolution but not overly power-hungry speakers of any size.
With an amplifier output of 2 x 370 W (4 Ω) [2 x 420 W (2 Ω); 2 x 200 W (8 Ω)],
it truly has enough reserves to powerfully drive any loudspeaker.
The Performer s900 stereo power amplifier is a compact size powerhouse. It excels in exceptional headroom thanks to the SPL VOLTAiR technology and impresses with a detail-rich, vivid, honest and musically outstanding sound.

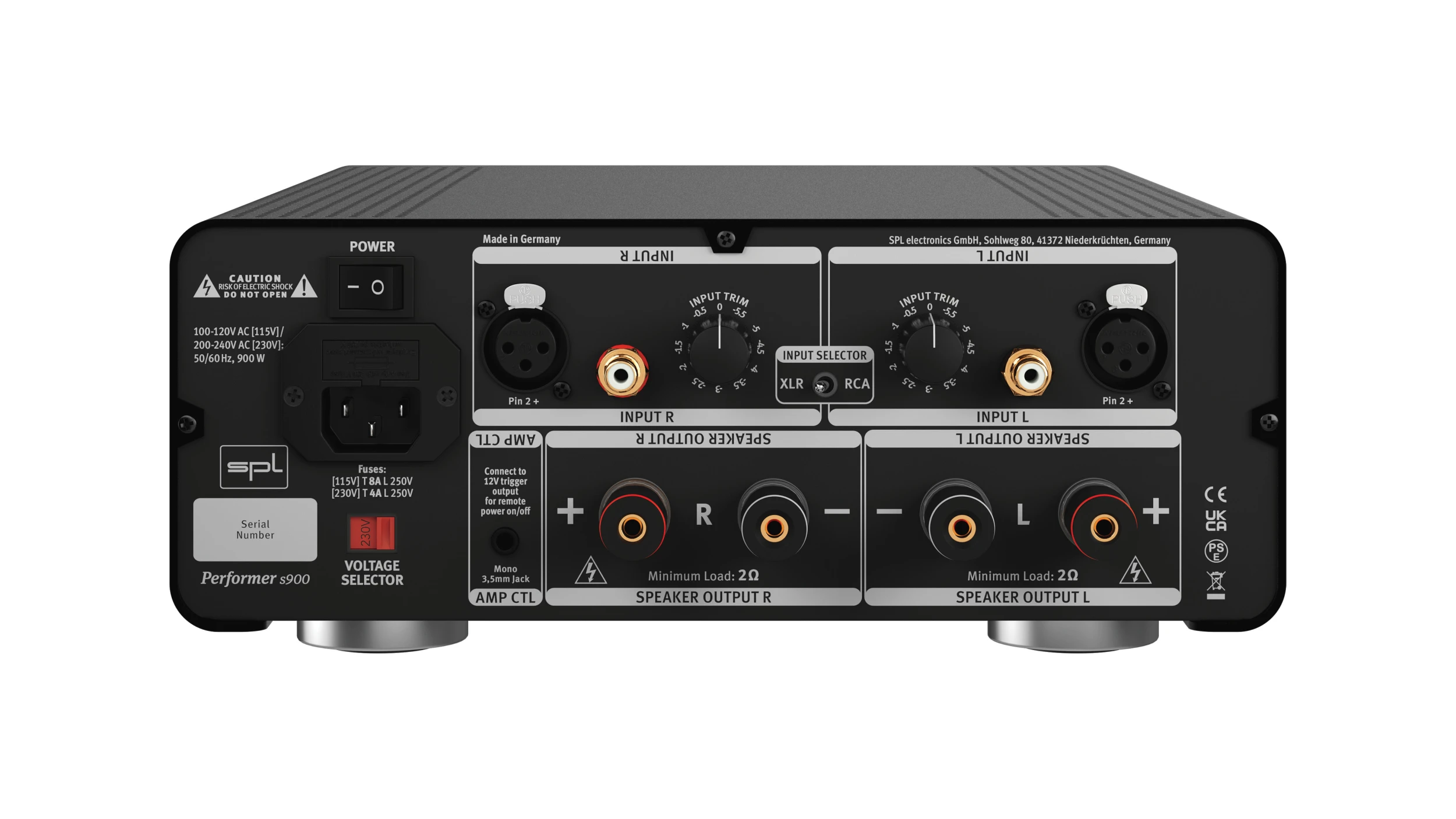

Analog Inputs: XLR (balanced), RCA (unbalanced)
Input impedance: 20 kΩ
Input trimming: 0 dB to -5.5 dB in 0.5 dB steps
Input sensitivity: 8 dBu
Loudspeaker Outputs: Binding posts with 4 mm ø cable hole (screwable) and banana plug
Output power (RMS, 2 Ω): 2 x 420 W
Harmonic distortion (1 kHz, 2 Ω): < 0.07 %
Output power (RMS, 4 Ω): 2 x 370 W
Harmonic distortion (1 kHz, 4 Ω): < 0.06 %
Output power (RMS, 8 Ω): 2 x 200 W
Harmonic distortion (1 kHz, 8 Ω): < 0.04 %
Output voltage (Peak-to-Peak): 112 V
Output voltage (RMS): 40.2 V
Output impedance (20 Hz – 20 kHz): < 0.035 Ω
Frequency range (-3dB): 10 Hz – 80 kHz
Amplification gain: 26 dB
Damping factor (1 kHz, 8 Ω): > 280
Noise (A-weighted): -123 dB
Internal Linear Power Supply with Shielded Toroidal Transformer
Toroidal transformer: 866 VA
Operating voltage (Input stage): +/- 60 V
Operating voltage (power stage): +/- 64 V
Operating voltage for relays, LEDs, AMP CTL: + 12 V
Mains Power Supply
Mains voltage (selectable, see fuse chamber): 230 V AC / 50 Hz; 115 V AC / 60 Hz
Fuse 230 V: T 4 A
Fuse 115 V: T 8 A
Power consumption: max. 900 VA
Idle power consumption: 20 W
Stand-by power consumption: < 0.3 W
Dimensions & Weight
W x H x D (width x height incl. feet x depth): 278 x 114 x 345 mm
Unit weight: 14.6 kg
Shipping weight: 15.8 kg
