| Model |
S-2 |
| General Description |
bookshelf |
| Enclosure type |
vented box |
| Transducer complement |
2-way |

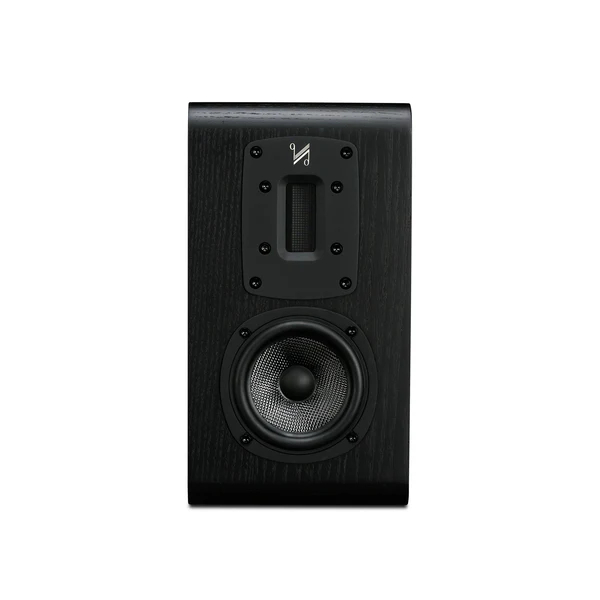

| Midrange driver |
125mm Woven Kevlar® |
| Treble driver |
45 x 12mm true ribbon |
| Sensitivity (1W @ 1m) |
87dB |
| Recommended amplifier power |
25-150W |
| Nominal impedance |
8Ω |
| Minimum impedance |
4.5Ω |
| Frequency response (+/-3dB) |
48Hz - 22kHz |
| Bass Extension (-6dB) |
37Hz |
| Crossover frequency |
3kHz |
| Cabinet Volume (in litres) |
10.3L |
| Dimensions |
330 x 180 x (260 + 30)mm |
| Net weight |
6.1kg each |
QUAD S Series loudspeakers fulfil that objective admirably. Sporting a new ribbon treble unit aligned, through sophisticated crossover networks, to QUAD ’s advanced bass-midrange drivers, each and every loudspeaker in the range delivers all the nuances and passion of the original performance.
