SVS Ultra Evolution Bookshelf Black Oak
Ā
The Culmination of Sonic Obsession.
SVS Ultra Evolution Bookshelf speaker represents the culmination of SVS breakthroughs in driver design, component materials, and cabinet architecture, married with a relentless passion for audio excellence. The science of sonic perfection in harmony with a love of convincing and immersive sound. With a big, expansive sound thatās revealing and detailed, Ultra Evolution Bookshelf gives the impression of a much larger speaker without sacrificing refinement or accuracy. Never has this fusion of design elements existed in a single speaker. Time aligned cabinet geometry, diamond coated aluminum dome tweeters, organic cellular lattice diffuser, and other advancements embody an uncompromising approach to speaker design.
Frequency Response / Acoustic Data:
ā¢ Frequency Response: 40 Hz-40 kHz (+/-3 dB).
ā¢ Nominal impedance: 6 ohms.
ā¢ Sensitivity: 87dB (2.83V @ 1 meter full-space, 300Hz ā 3kHz)
ā¢ Recommended amplifier power: 20 ā 150 watts
Speaker Specs:
ā¢ Bookshelf Loudspeaker
ā¢ Piano gloss black, piano gloss white, real black oak veneer finish options
ā¢ Dual gold-plated 5-way binding posts

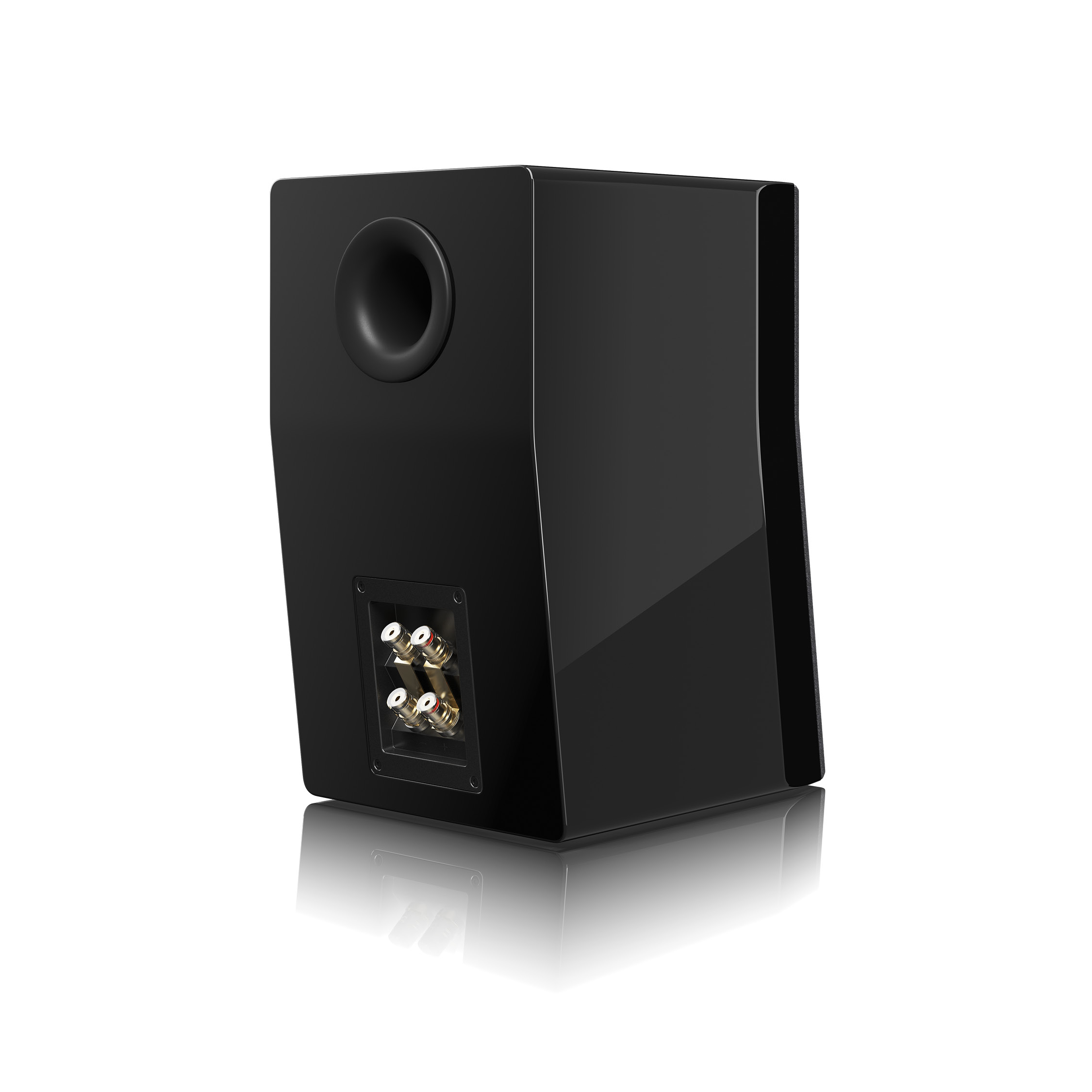

ā¢ 2ā wide-ļ¬ared rear-ļ¬ring portāÆ
ā¢ Cloth grille with magnetic retention system
ā¢ Elastomer stick-on bumper feet
ā¢ Cabinet Dimensions: 14.88ā (H) x 8.66ā (W) x 11.25ā (D) / 378mm (H) x 220mm (W) x 285.7mm (D)
ā¢ Overall Dimensions: 15.04ā (H) x 8.66ā (W) x 11.64ā (D) / 382mm (H) x 220mm (W) x 295.6mm (D) (includes grille)
ā¢ Shipped Dimensions (Pair): 23.9ā (H) x 19.1ā (W) x 16.4ā (D) / 607mm (H) x 485mm (W) x 417mm (D)
ā¢ Weight Unboxed: 18.8 pounds / 8.6 kgs
ā¢ Shipped Weight: 40.7 pounds / 18.9 kgs
Driver Specs:
1ā Diamond Coated Tweeter
ā¢ FEA-optimized Organic Cell Lattice Diffuser for airy, unveiled highs and pristine clarity.
ā¢ Cutting-edge vapor-deposition grows a hyper-rigid diamond-like coating on an aircraft-grade aluminum dome, pushing high-frequency extension further beyond human hearing, and delivering best-in-class fidelity, linearity, and transient response.
ā¢ Silver tinsel leads for optimal signal transfer and power handling.
6.5ā Woofer:
ā¢ Long stroke motor and suspension for high output.
ā¢ Composite glass-fiber cone with excellent stiffness/mass ratio for high sensitivity and pistonic behavior beyond passband.
ā¢ Precision-cast aluminum alloy baskets ensure precise alignment of critical components and maximize thermal dissipation.
ā¢ Vented aluminum voice coil former to maximize thermal control while minimizing air compression artifacts at high drive levels.
Crossover & Cabinet Specs:
Crossover:
ā¢ 2-way crossover with premium-grade capacitors, inductors, resistors, and heavy-trace printed circuit board
ā¢ Tweeter-to-Woofer crossover: 1.8 kHz
Cabinet:
ā¢ Time-aligned cabinet geometry introduces microsecond-level time delays between the drivers, ensuring that the effective-acoustic-center of each driver is equidistant from the listener.āÆ āÆThe result is improved linearity and directionality throughout the crossover frequencies, and a more accurate soundstage.
ā¢ Chamfered front baffle and flush-mounted drivers reduce edge diffraction and improve on-axis and off-axis high-frequency response.
ā¢ Extra-thick 1ā (25mm) driver baffle ensures a rigid, resonance-free mounting for all drivers.
ā¢ FEA-optimized Ā¾ā (18mm) cabinet construction, bracing, and acoustic insulation eliminate acoustic and structural resonances, ensuring an inert enclosure and an uncolored response, even at the highest drive levels.
