Cordial CSE 1,5 HH 5e PUR, 1.5m black
Garantujemo najnižu cenu!
- Centralni magacin
DATA / ETHERNET CAT 5e S/UTP - AWG 26/19 - PUR
| Cable type | CAT 5e S/UTP |
| Connector recommendation | see datasheet |
| Conductor area | 0.15 mm² |
| AWG | 26/19 |
| Composition of conductor | 19 x 0,15 mm² |
| Material | PUR |
| Conductor isolation | Solid PE nom. 1,03 mm |
| Shielding | S/UTP |
| Overall Jacket | PUR |
| Category | Data / Ethernet |
| Overall diameter | 6.5mm +/- 0.2mm |
| Weight bulk cable | ca. 56kg/km |
| Capacity cond.-cond. (pF/m) | nom < 50 pF/m |
| Conductor resistance | 140 Ω/km |
| PoE | PoE (15,4W) / IEEE 802.3af-2003 / max. Channel PoE (15,4W) 67 m |
| Max. Channel-Link: | Channel of Class D / CAT 5e (@ 100 MHz): 73m |
| Max. Permanent-Link: | Permanent of Class D / CAT 5e (@ 100 MHz): 61m |

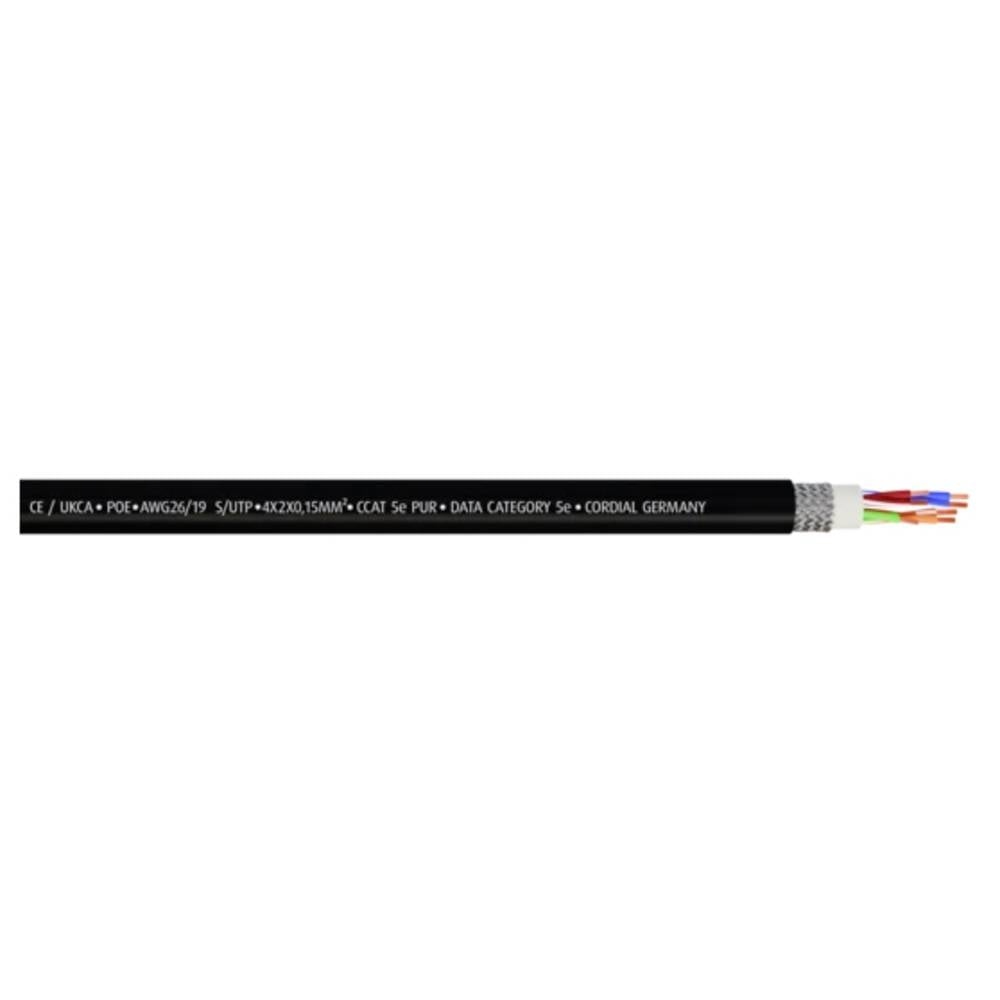

Our CSE HH 5e PUR data patch cable features our CCAT 5e PUR bulk cable and HIROSE® RJ45 connectors. Equipped with a flexible AWG 26/19 inner conductor and a special TPE-V stabilizer, the cable is ideal for the use with audio networks, lighting control and EtherSound™ systems.
This cable does not only excel because it is reelable and exceptionally robust but also because it offers high flexibility and a tight bending radius. It is the ideal choice for patch cables, device connection cables and mobile applications, stage operations and outdoor transmissions as well. The cable supports the PoE IEEE 802.3af-2003 standard (15.4W).
- Highly flexible, robust, reelable,
- PUR jacket for mobile indoor/outdoor applications
- Data class CAT 5e (100 MHz)
- Overall shield S/UTP
- AWG 26/19, with 19 strands/conductors
- PoE (15.4W) IEEE 802.3af-2003 max. channel PoE (15.4W) 67 m
- HIROSE® RJ45 connector
- Transparent shrink-on tubes for easy cable identification
