Cordial CFD 5 DDA
Cordial CFD 5 DDA Interface Cable, 5m

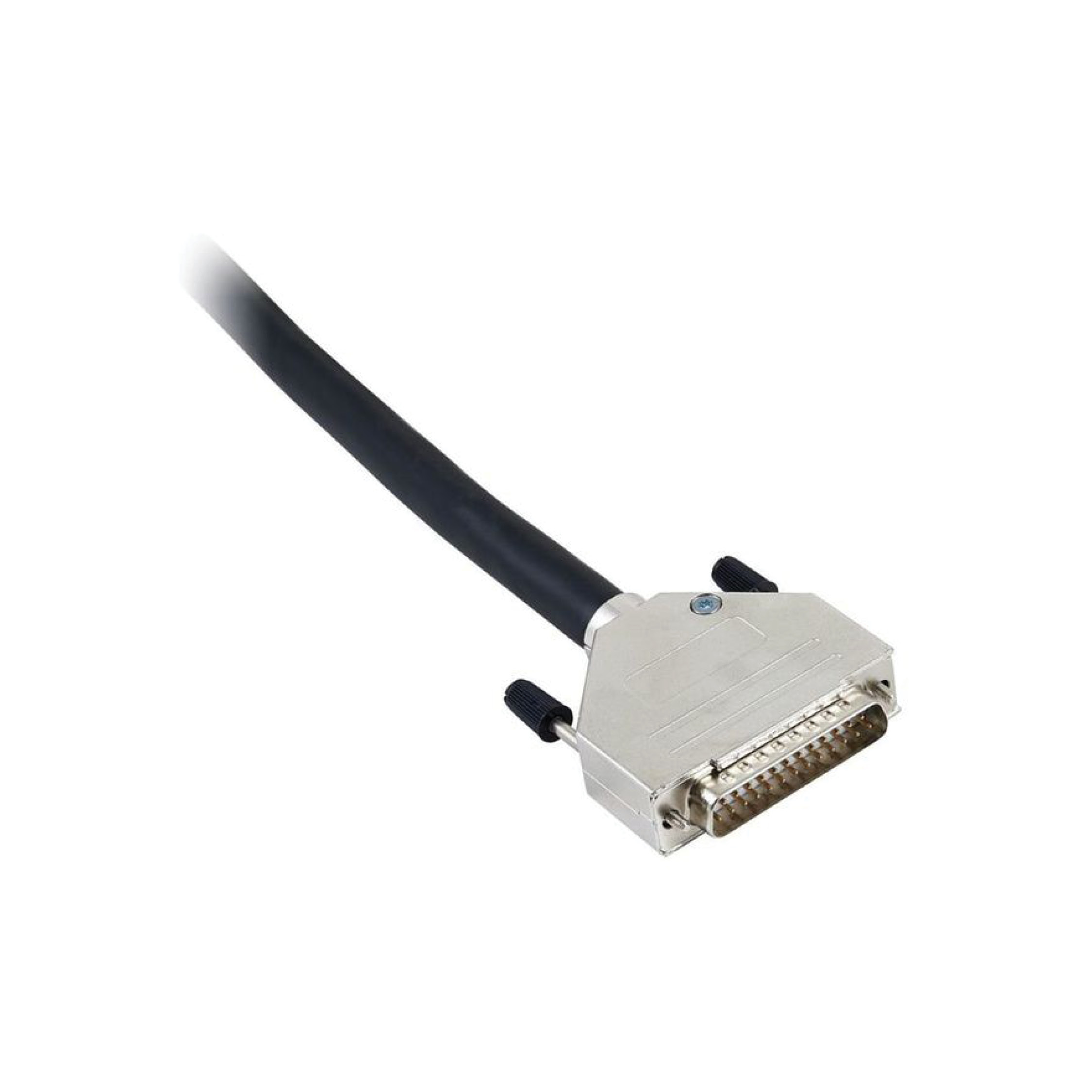

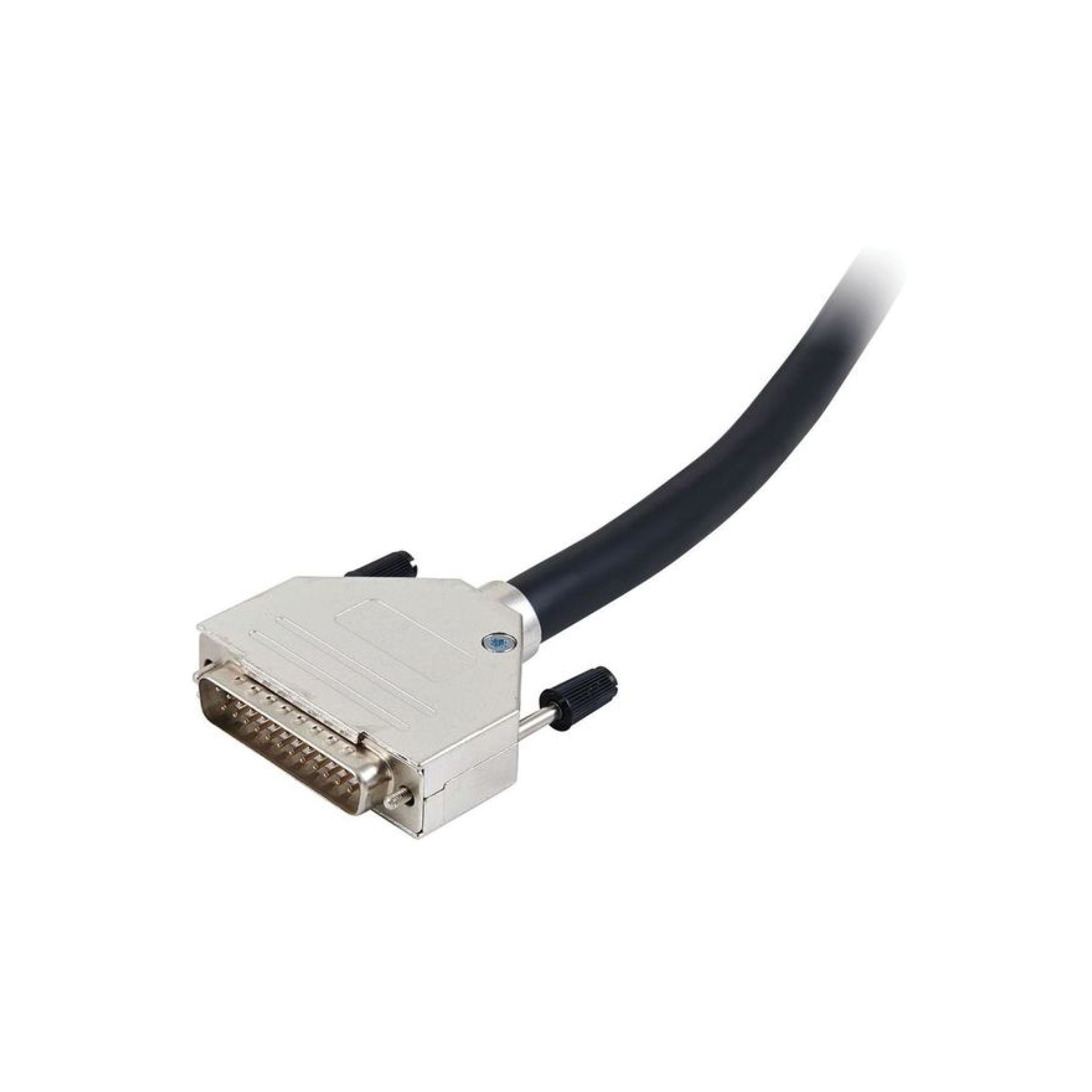

The CFD DDA multicore cable is used to connect devices with Tascam pinout. The cable fits exactly to Tascam DSUB 25 (DA88) in terms of pinout. The 2 D-Sub 25pin male plugs are enclosed in a metal housing.

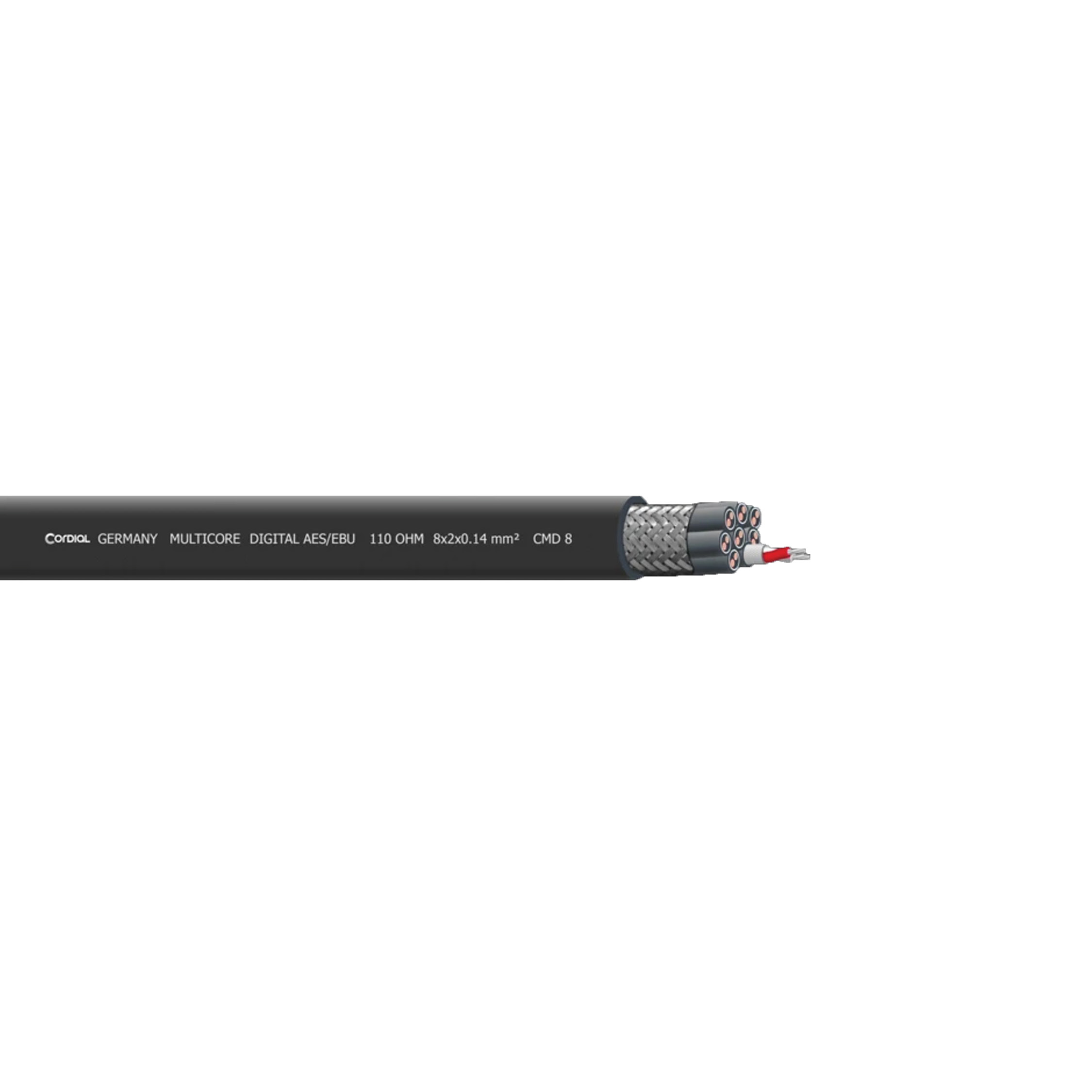

Coil pair shields made of tin-plated copper and additionally a tin-plated overall braided shield are characteristic for the CMD 8, which Cordial uses for the CFD DDA. A guarantee for excellent signal transmission, both analog and DMX.
Cable: CMD 8
Occupancy: DDA
Connector: 1x D-Sub / 1x D-Sub
Conductor cross-section: 0.14 mm²
AWG: AWG 26
Conductor construction: 18 x 0.10
Material: CU tinned
Conductor resistance: 140 Ohm/km
Shielding: Braiding of tinned copper wires
Capacity conductor-conductor: 45 pF / m
Diameter: 12.5 mm
Length: 5m
Weight: 890g
