Korg MINILOGUE XD - Sintisajzer
An evolved next-generation analog synthesizer with huge potential for sound design and performance.
We wanted to deliver a next-generation analog synthesizer for a new generation of musicians new to analog synthesis. That dream was realized in the development of the minilogue, which instantly made the analog synthesizer approachable.
In addition to emphasizing the same real analog sound and joy of controlling an electronic musical instrument offered by the original minilogue, the minilogue xd newly adds a digital multi-engine, effects, a powered-up sequencer, and micro tuning functionality, further expanding the possibilities for sound design and performance potential.
Keyboard: 37-keys (Slim-key, velocity sensitive)
Sound Generation: Analogue sound generator + Multi digital sound generator (Noise, VPM, User)
Maximum Polyphony: 4 voices
Programs:
• 500 voices (more than 200 preload, 300 user programs).
• Each program provides a program sort function that includes voice mode settings.
• Favorite function built in
Voice Mode:
• 4 (POLY, UNISON, CHORD, ARP / LATCH).
• The VOICE MODE DEPTH setting allows different parameters to be varied for each mode
Sequencer:
• 16-step polyphonic sequencer
• Motion sequence can be used on up to four parameters
Main Synthesis Parameters:
• VCO1: WAVE (SAW, TRIANGLE, SQUARE), OCTAVE, PITCH, SHAPE
• VCO2: WAVE (SAW, TRIANGLE, SQUARE), OCTAVE, PITCH, SHAPE
• MODULATION: SYNC, RING, CROSS MOD DEPTH
• MULTI ENGINE: NOISE/VPM/USER, TYPE、SHAPE
• MIXER: VCO1, VCO2, MULTI
• VCF: CUTOFF, RESONANCE, DRIVE, KEYTRACK
• AMP EG: ATTACK, DECAY, SUSTAIN, RELEASE
• EG: ATTACK, DECAY, EG INT, TARGET (PITCH, PITCH2, CUTOFF)
• LFO: WAVE (SAW, TRIANGLE, SQUARE), MODE（BPM, NORMAL, 1-SHOT), RATE, INT, TARGET (PITCH, SHAPE, CUTOFF)
Main effect Parameters:
• EFFECT: TYPE (MODULATION, REVERB, DELAY), ON/OFF (SELECT, ON, OFF), TIME, DEPTH
MULTI ENGINE:
• Noise Generator: 4 types
• VPM oscillator: 16 types
• User oscillator: 16 slots
MULTI ENGINE:
• Noise Generator: 4 types
• VPM oscillator: 16 types
• User oscillator: 16 slots
MOD EFFECTS:
• CHORUS: 8 types
• ENSEMBLE: 3 types
• PHASER: 8 types
• FLANGER: 8 types
• USER: 8 types
DELAY:
• DELAY: 12 types
• USER: 8 slots
REVERB:
• REVERB: 10 types
• USER: 8 slots
Controls: Joy stick that can modify different parameters for each program, PORTAMENTO knob
Display:
• Main: Real-time OLED oscilloscope provides visual feedback of parameter changes
• MULTI ENGINE section: 7 segments x 6 digit LED display

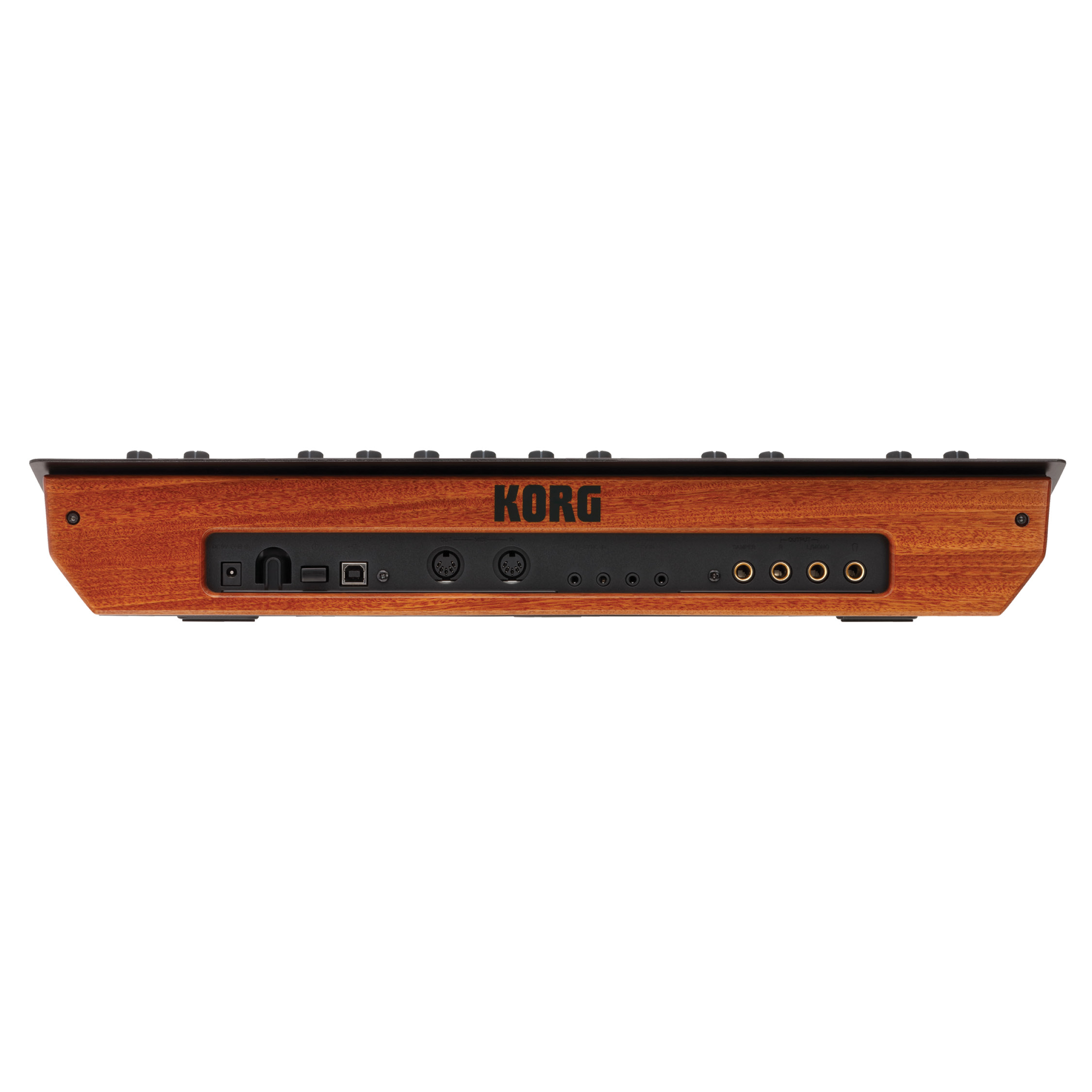

Input/Output connectors:
• Headphone jack (Stereo phone jack)
• OUTPUT L/MONO, R jacks (monaural phone jack unbalanced)
• CV IN 1, CV IN 2 jacks (3.5 mm [1/8"] monoural mini jack, Input voltage: -5 V – +5 V (Modulation mode), -3V – +5 V (CV/Gate mode)
• SYNC IN jack (3.5 mm [1/8"] mini jack, maximum input level 20 V)
• SYNC OUT jack (3.5 mm [1/8"] mini jack, output level 5 V)
• MIDI IN jack
• MIDI OUT jack
• USB B jack
• DAMPER jack (half damper is not supported)
Power Supply: AC adapter (DC9 V)
Power Consumption: 8 W
Dimensions (W x D x H): 500 mm x 300 mm x 85 mm / 19.69" x 11.81" x 3.35"
Weight: 2.8 kg / 6.17 lbs
Included Items: AC adapter
Accessories (sold separetely):
• SC-MINILOGUE Soft shall case
• SEQUENZ MP-TB1 MULTI-PURPOSE TALL BACKPACK
• SQ-CABLE-6 Sync cable
• DS-1H Damper pedal
• PS-1 Pedal switch
• PS-3 Pedal switch
