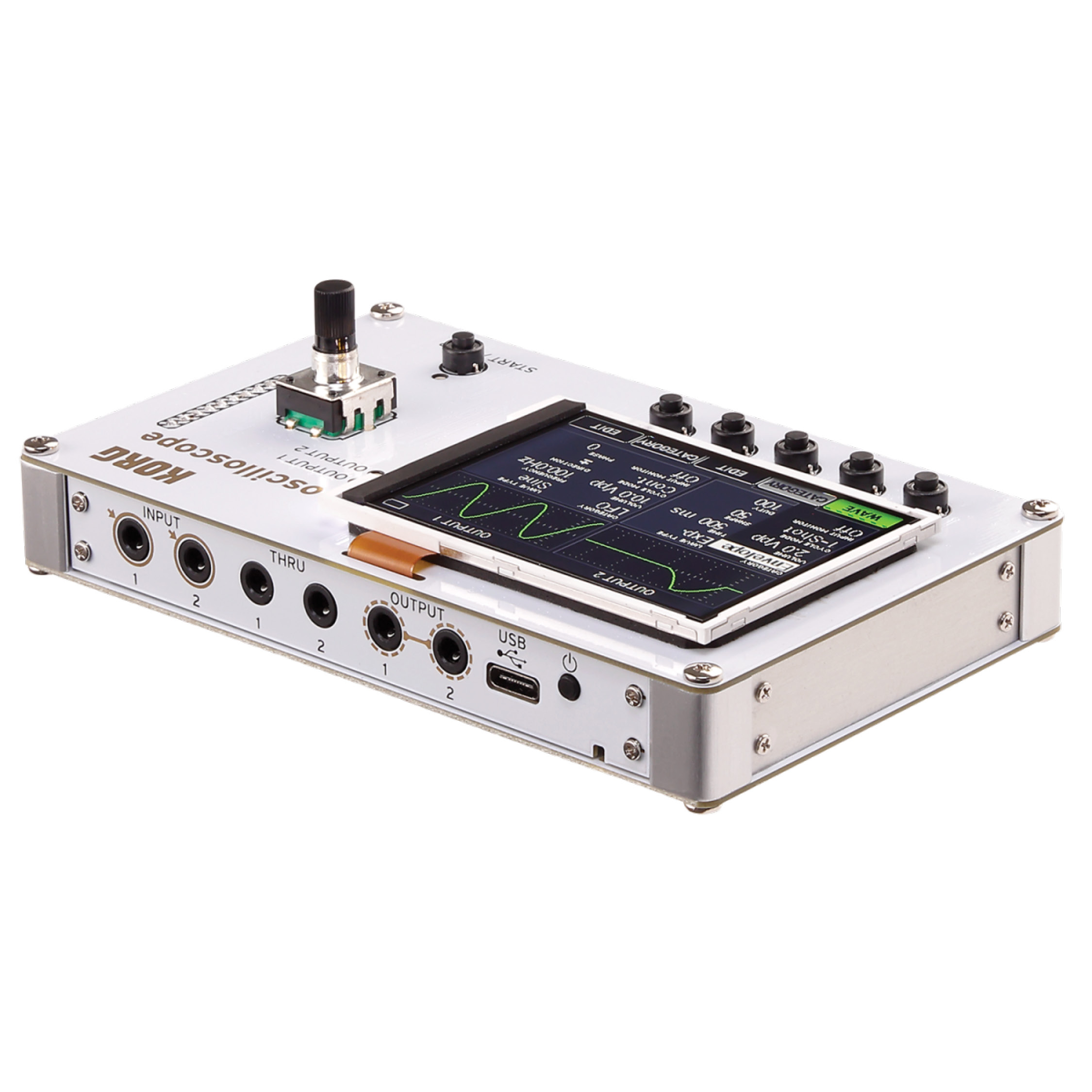

Korg NTS-2 Oscilloscope Kit
The modern musician's multi-tool
The Nu:Tekt NTS-2 oscilloscope kit is a DIY multifunctional tool for musicians. Building on a 4-channel oscilloscope - monitoring control voltage (CV) and audio signals alike - NTS-2 also packs a flexible waveform generator, a spectrum analyzer, and tuner functionality into a build-it-yourself device which fits in the palm of your hand! Originally released in a bundle with the critically acclaimed “PATCH & TWEAK with KORG”, the NTS-2 is now available as a stand-alone kit. The NTS-2 is perfect for musicians and creators of all backgrounds and levels of experience navigating their musical journey, providing solid tools and precise references to cultivate your craft.
Dimensions: 12.9 x 7.8x 3.9 cm ( 5.08 x 3.07 x 1.53 inches)
Weight: 130g (not including batteries) (4.6 oz)
Power: USB type-C (2.0, 500mA max) or 2x AAA batteries (approx 2 hours running time
Inputs:
• Input: 3.5mm Stereo x2, ±10V max
• Through Output: 3.5mm Stereo x2
• Output: 3.5mm Mono x2, ±5V max
Oscilloscope:
• Display modes: Single, Stereo (Input1L-INPUT1R, Input1L - Input2L, Input2L - Input2R), 4ch、XY(Lissajous, 2ch)
• Vertical: 10mV~5V/div, AC/DC MODE switchable
• Horizontal: 50us~1s/div
• Trigger: Auto, Rise, Fall, Single(rise), Single(fall)
FFT (Spectrum Analyzer):
• Input: mono (1L, 1R, 2L, 2R)
• Frequency: 0Hz~20kHz
Function Generator:
• Wave type: sine, square, triangle, saw, noise, pulse, envelope
• Frequency: 1Hz~10kHz, Hz/NOTE mode switchable, [1ms~10s,sec/BPM switchable(pulse, envelope mode)]
• Output level: 10Vpp max, V/dB mode switchable
Tuner:
• Display mode: Needle, Meter
• Input: Mono, Stereo (Input1L-Input1R, Input1L-Input2L)
• Calibration: 410-480Hz
