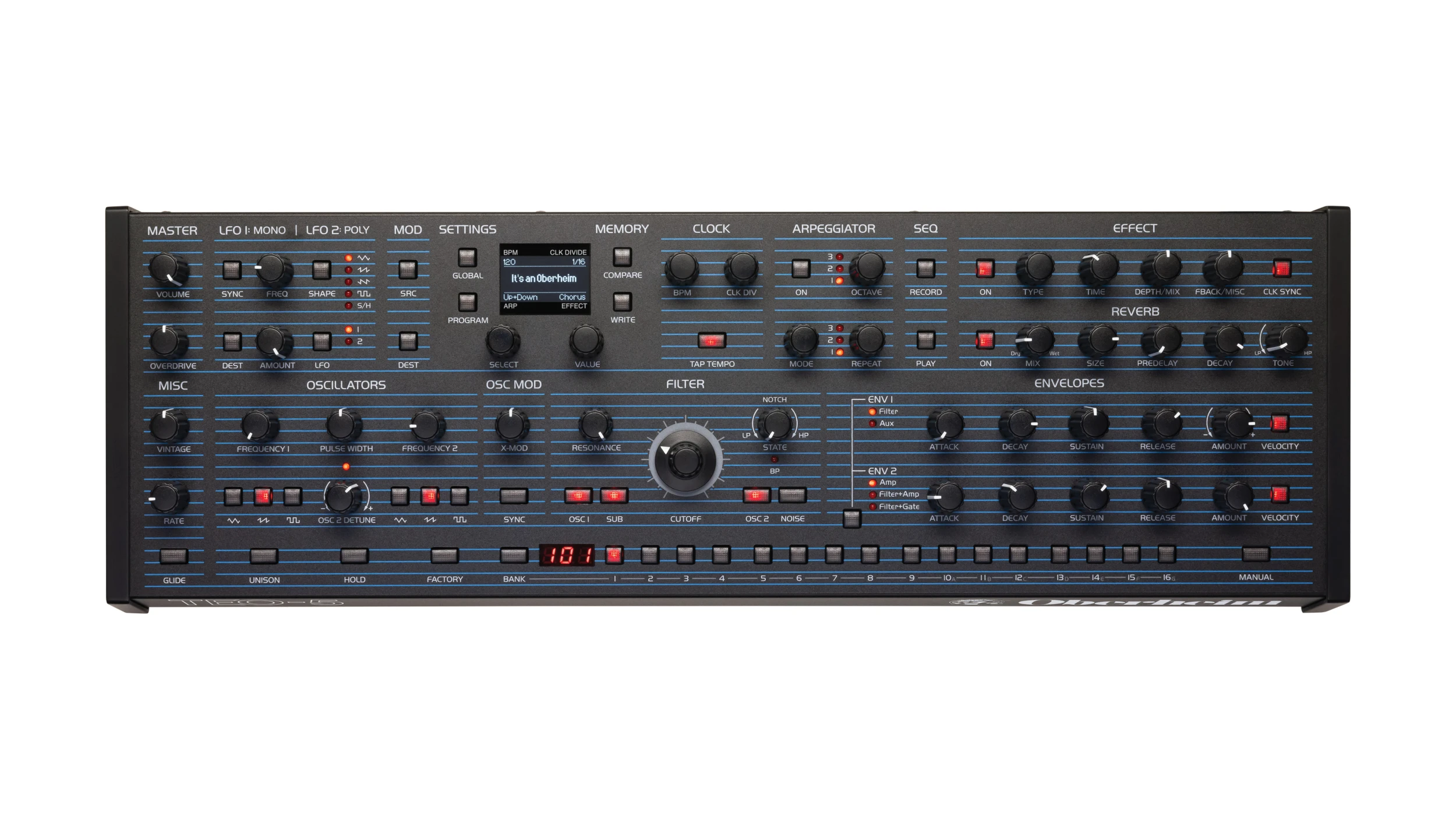

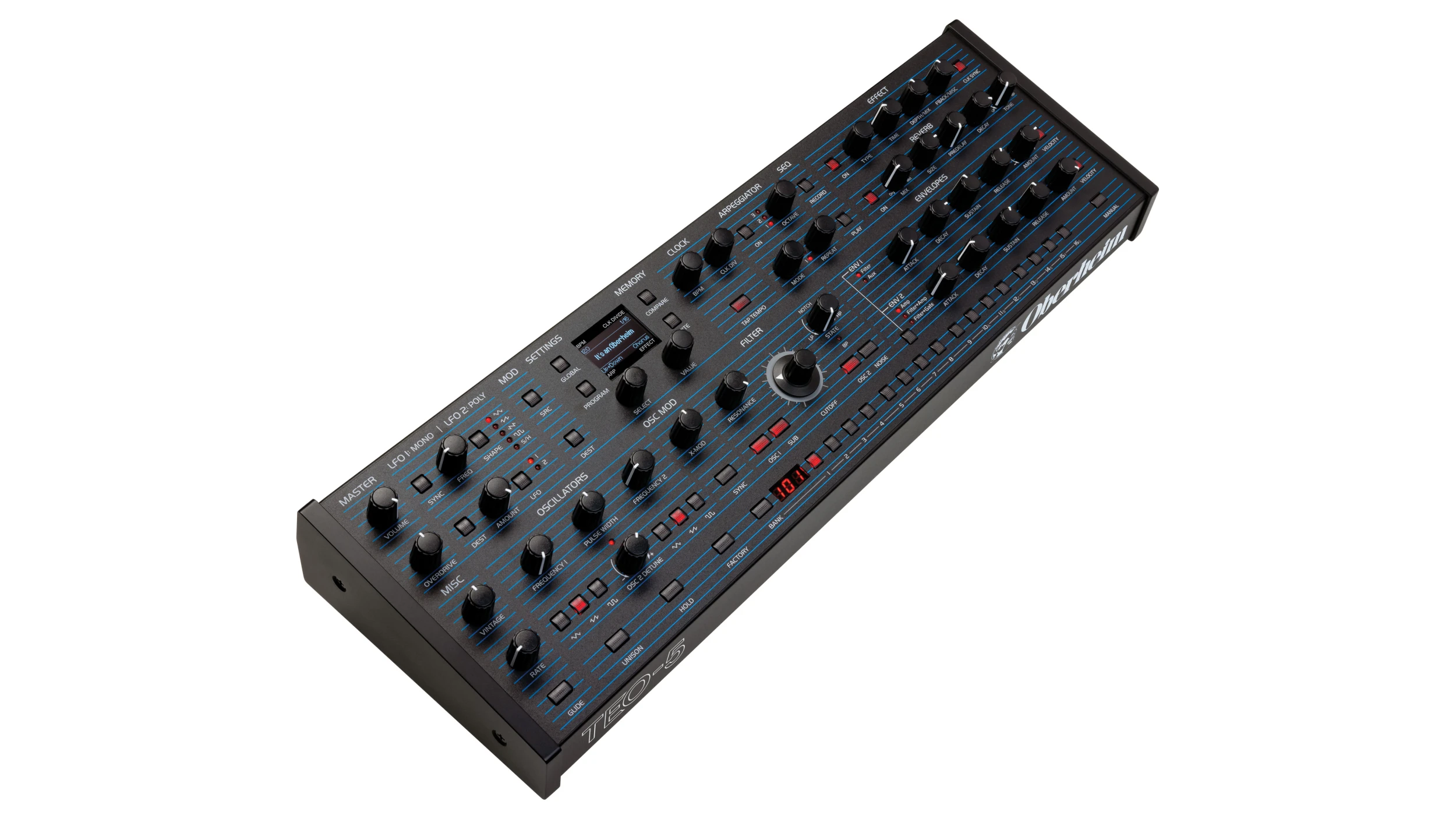

Oberheim TEO-5 Module
For over 50 years, the instruments and machines painstakingly crafted and innovated by Tom Oberheim and his cohorts have shaped the sonic landscape of music, spanning the chart-topping to the avant-garde. TEO-5 encapsulates Oberheim’s multifaceted legacy, fulfilling a vision for a powerful, flexible synthesizer that packages time-tested tools with cutting-edge, contemporary character into a powerful, portable design. This 5-voice polyphonic synth captures the ethos of renowned Oberheim instruments like the OB-X, Four Voice, and TVS, refined and reimagined for the contemporary musician looking to pair vintage-derived analog character with envelope-pushing modern malleability. At its convenient size, synthesists at Sweetwater are enamored by the scope of TEO-5 desktop synthesizer, from hallmark Oberheim effects and flexible ADSSR envelopes to its multitudes of modulation and scorching thru-zero FM sonics. Outfitted with a polyphonic step-sequencer, multimode arpeggiator, and robust connectivity options, this dual analog-VCO powerhouse is nothing short of an electrifying Oberheim renaissance.
Type: TEO-5 Desktop Module
Analog/Digital: Analog
Polyphony: 5-voice
Presets: 256 Factory/256 User in 32 Banks, 16 Programs each
Oscillators: 2 x VCOs (triangle, saw, variable pulse)
Waveforms: Triangle, Saw, Variable Pulse
Noise Generator: White Noise Generator
Envelope Generator: 2 x 5-stage (DADSR)
LFO: 2 x LFO (triange, sawtooth, reverse saw, square, random)
Effects Types: Reverb, Overdrive
Arpeggiator: Yes, 3-octave Range, Selectable Note Value
Sequencer: 64-step, Polyphonic

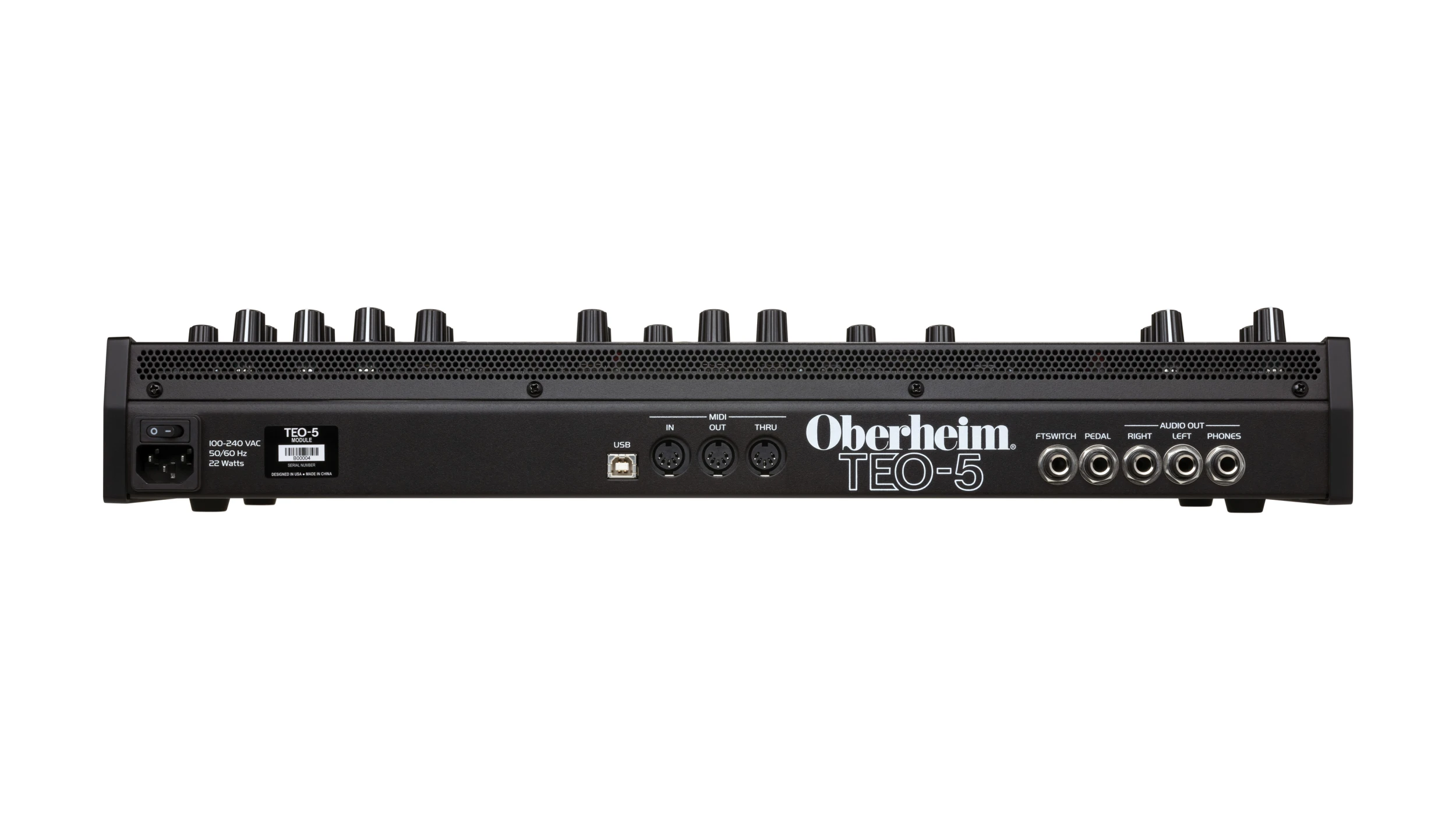

Analog Outputs: 2 x 1/4" (left, right)
Headphones: 1 x 1/4" TRS
MIDI I/O: In/Out/Thru/USB
Pedal Inputs: 1 x 1/4" (sustain/footswitch), 1 x 1/4" (volume/expression)
USB: 1 x Type B (MIDI)
Features: Modulation Matrix: 19 Slots, 19 Sources, 64 Destinations
Power Supply: Standard IEC AC Input
Power Usage: 22W Max
Height: 3.5"
Width: 20.98"
Depth: 7"
Weight: 6.79 lbs
Manufacturer Part Number: OB-3710
