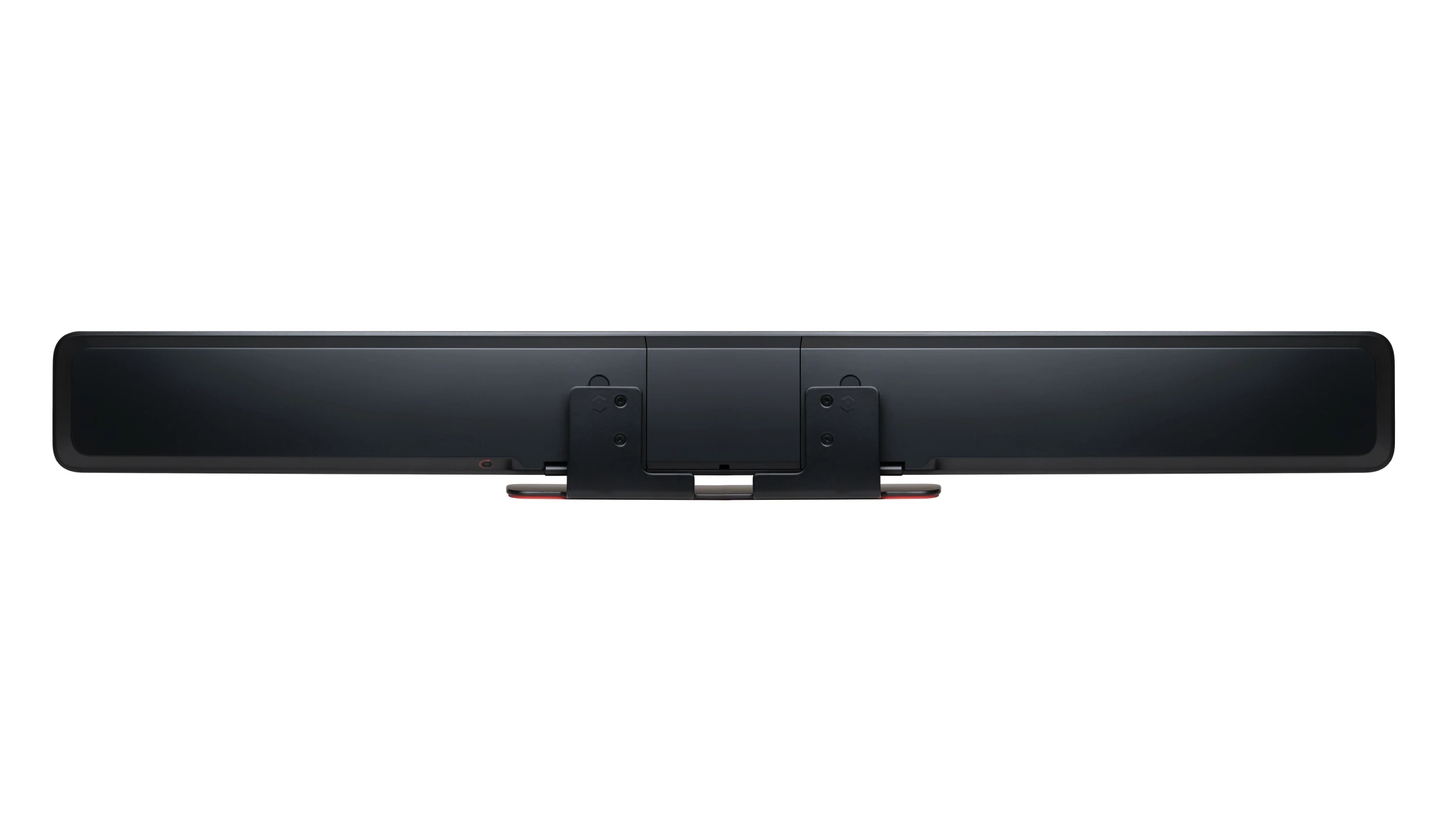

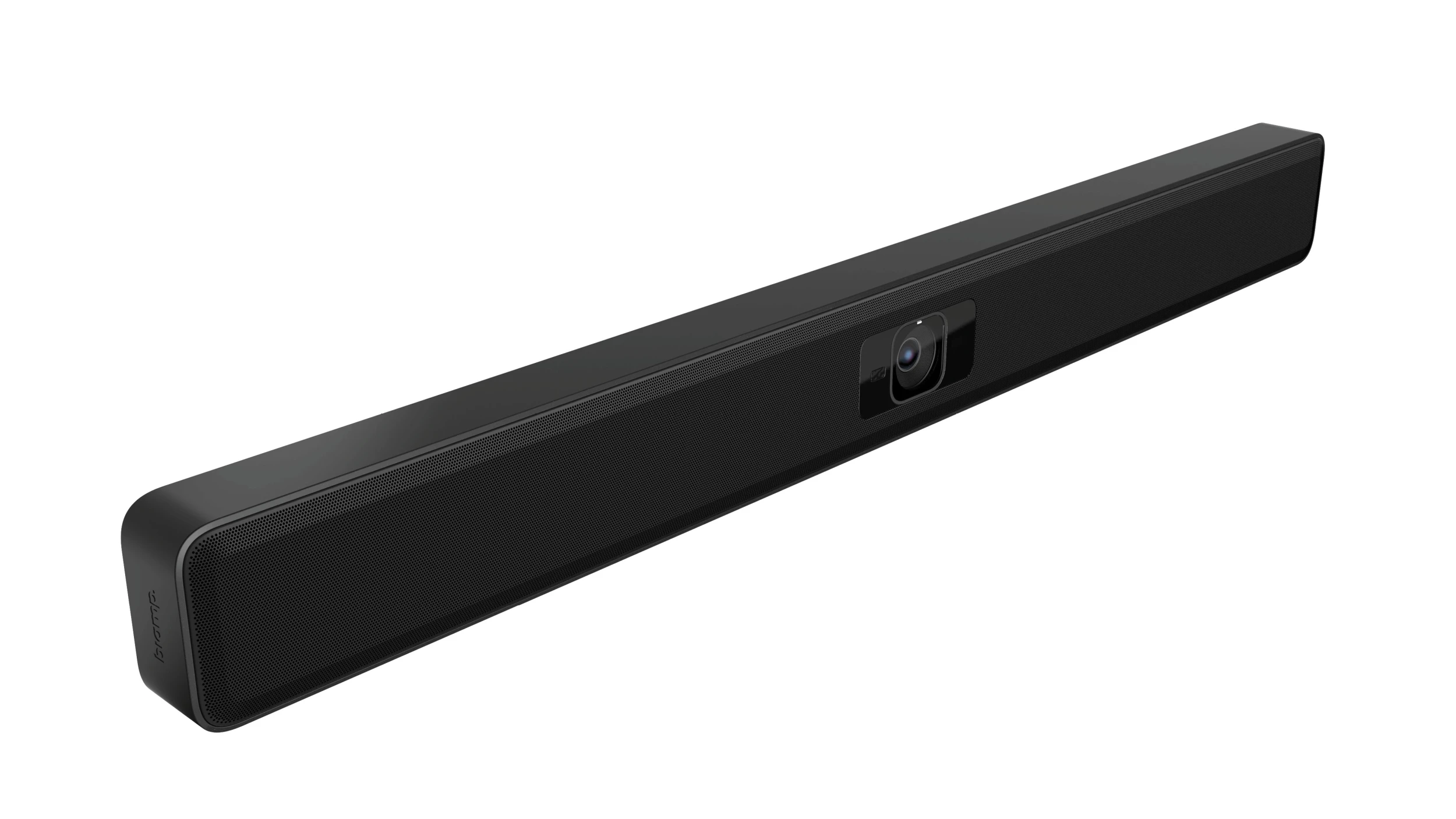

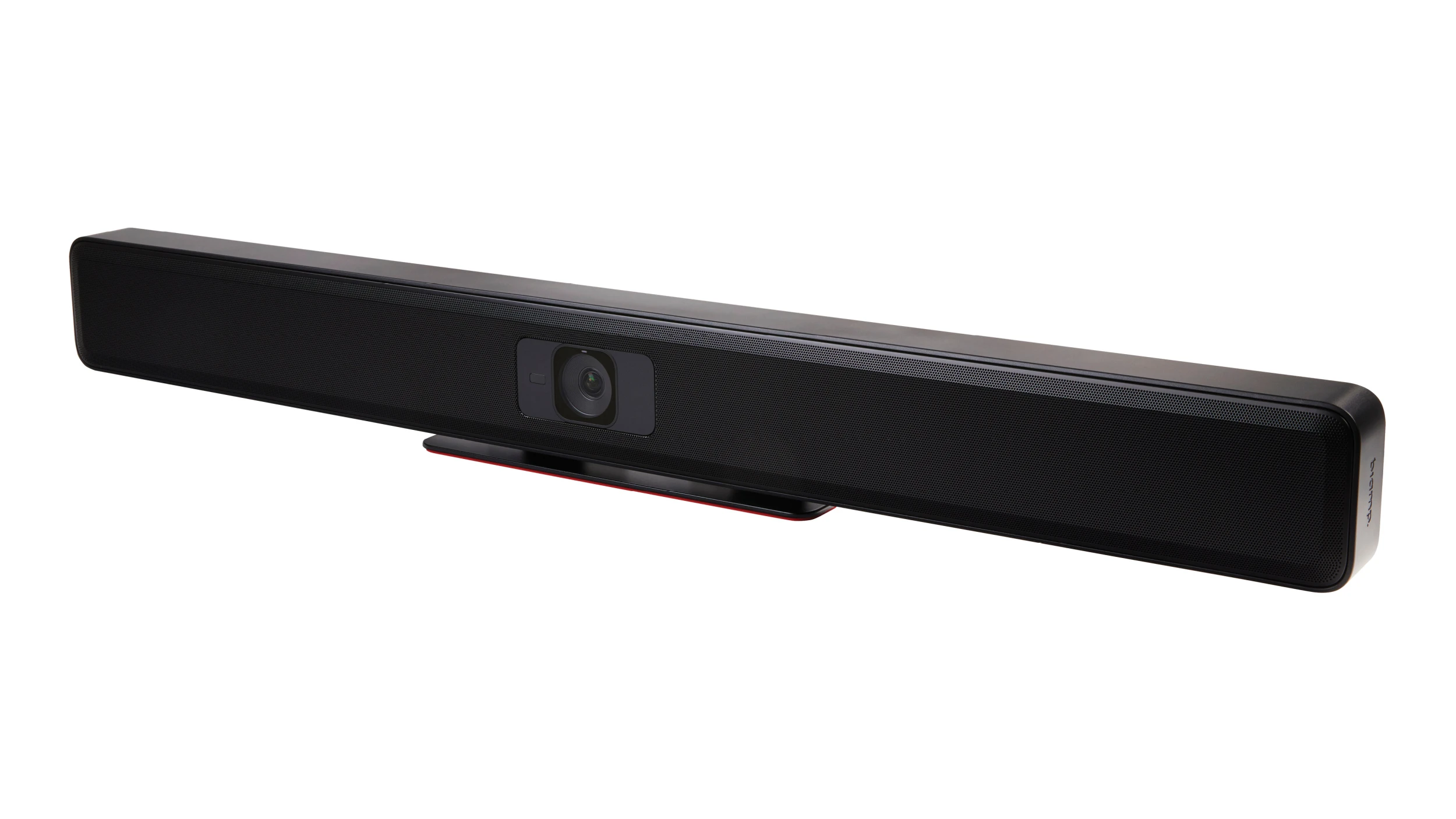

Biamp Parle VBC 2500a
The Parlé VBC 2500a is a next-generation conferencing bar designed to elevate audio and video performance in small and medium meeting spaces. Featuring a 27-element microphone array with Biamp Beamtracking technology, the system intelligently follows conversation dynamics in real time—capturing voices naturally and consistently, even as participants move around the room. Integrated Acoustic Echo Cancellation and AI-powered noise reduction further enhance clarity by eliminating common distractions and ensuring remote participants hear every detail.

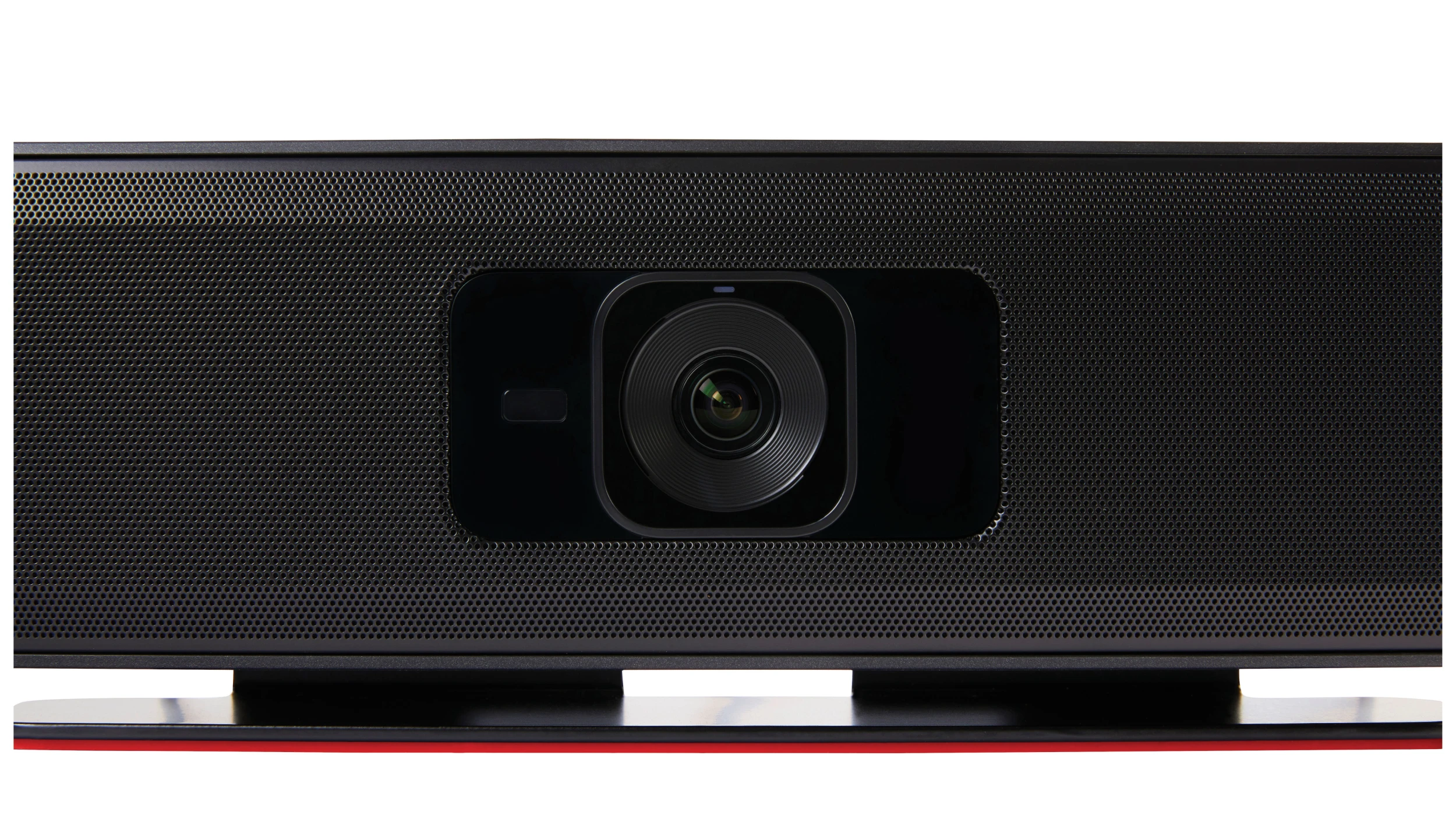

On the video side, the VBC 2500a incorporates a wide-angle 4K camera engineered specifically for conference room environments. Its high-performance sensor and optics allow it to stream crystal-clear video at up to 2160p at 30fps. With electronic pan/tilt/zoom, 5x zoom capability, and intelligent auto-framing, the camera automatically adapts to group size and seating layouts to keep participants properly framed without manual adjustment. An automatic privacy shutter provides added security and peace of mind.
GENERAL
Height: 3.9 inches (100 mm)
Width: 37 inches (940 mm)
Depth: 2.5 inches (64 mm)
Weight: 9.6 lbs (4.4 kg)
ENVIRONMENTAL
Ambient Operating Temperature Range: 32 - 104° F (0 - 40° C)
Humidity: 0-90% (non-condensing)
Altitude: 0-10,000 ft (0-3000m) MSL
POWER
Power:
Power Sources:
• USB-C: 60W
• External Power Supply: 100-240VAC 50/60Hz (12VDC, 4.74A)
CONTROLS & INDICATORS
Control Interfaces:
• USB 3.0: 1x Type C
• Assistive Listening Feed: 1x 3.5mm mono balanced
LOUDSPEAKER
Beamwidth: Nominal Beamwidth (H x V): 180° x 180°
Transducers: 2x 2.5 in (60 mm) full range
Sensitivity:
• Microphone: Sensitivity (@ 1Pa): > -37dBFS ± 1dB
• Loudspeakers: (@ 1m, 2.83V): 84 dB
VIDEO
Diagonal Field of View: 120 Degrees
Horizontal Filed of View: 109 Degrees
Verticle Field of View: 75 Degrees
Image Sensor: 12 Megapixel
Focus Distance: 100 cm
Digital Zoom: 5x
Lens Cap: Automated Privacy Shutter
Positioning:
• Autoframing capability
• Electronic Pan/Tilt/Zoom
• UVC controlled
Indicators: Camera Active Indicator (White/Off LED)
Supported Resolutions:
• 720p @ 30fps
• 1080p @ 30fps
• 2160p @ 30fps
AUDIO
Audio:
• Interfaces
• USB 3.0: 1x Type C
• Assistive Listening Feed: 1x 3.5mm mono balanced
Microphone:
• Microphone Technology: 27-Element Digital Array
• Polar Pattern: Active Beamformed
• SNR (@ 1kHz, 94dB SPL, A-Weighted): 69 dB
• Microphone Data Rate Output: 48 kHz
• Audio Processing: AEC (Acoustic Echo Cancellation)
• Noise Reduction: AI Filter
Impedance: Nominal Impedance: 4Ω Continuous Rated Power (6 dB crest factor, HPF @ 60 Hz): 20W
THD+N: THD (@ 1kHz): < 0.2%
Frequency Response:
• Microphone: (100 Hz - 8 kHz): -10dB
• Loudspeaker: (57 Hz - 20 kHz): -10 dB
Dynamic Range: Pickup Range (25dBA noise floor): > 23 feet (7 m)
SPL:
• Microphone: Maximum SPL (@ 1kHz, THD < 10%): 130 dB
• Loudspeakers: Rated Maximum SPL (@ 1m): 90 dB (continuous), 96 dB (peak)
Sampling Rate: 48 kHz
CERTIFIED SOLUTIONS
Microsoft Teams: Microsoft Teams Certified
Zoom: Zoom Certified
Barco: Barco Certified
COMPLIANCE
Certifications:
• FCC Part 15B (USA)
• CE Marked (Europe)
• UL and C-UL listed (USA and Canada)
• RoHS Directive (Europe)
