Sennheiser XSW IEM SET
The all-in-one XSW IEM SET includes the XSW IEM SR stereo transmitter, XSW IEM EK stereo receiver, IE 4 in-ear headphones, external power supply, and a rackmount kit. The system provides up to 6 hours of continuous use with two AA batteries in the receiver—at a range up to 330'. The transmitter can send signal to as many receivers as you want (additional receivers available separately). Up to 12 transmitters can operate simultaneously in the same frequency band.

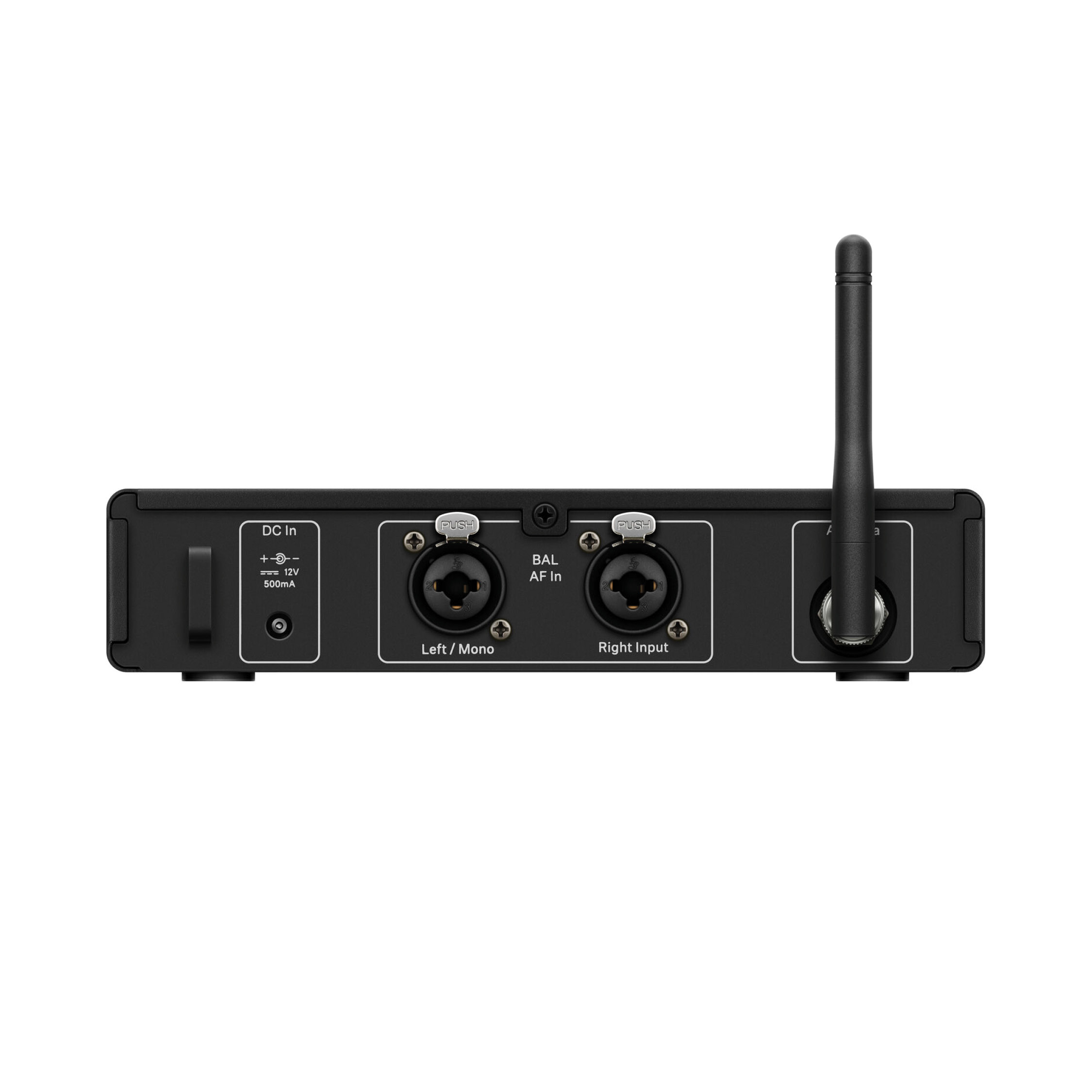

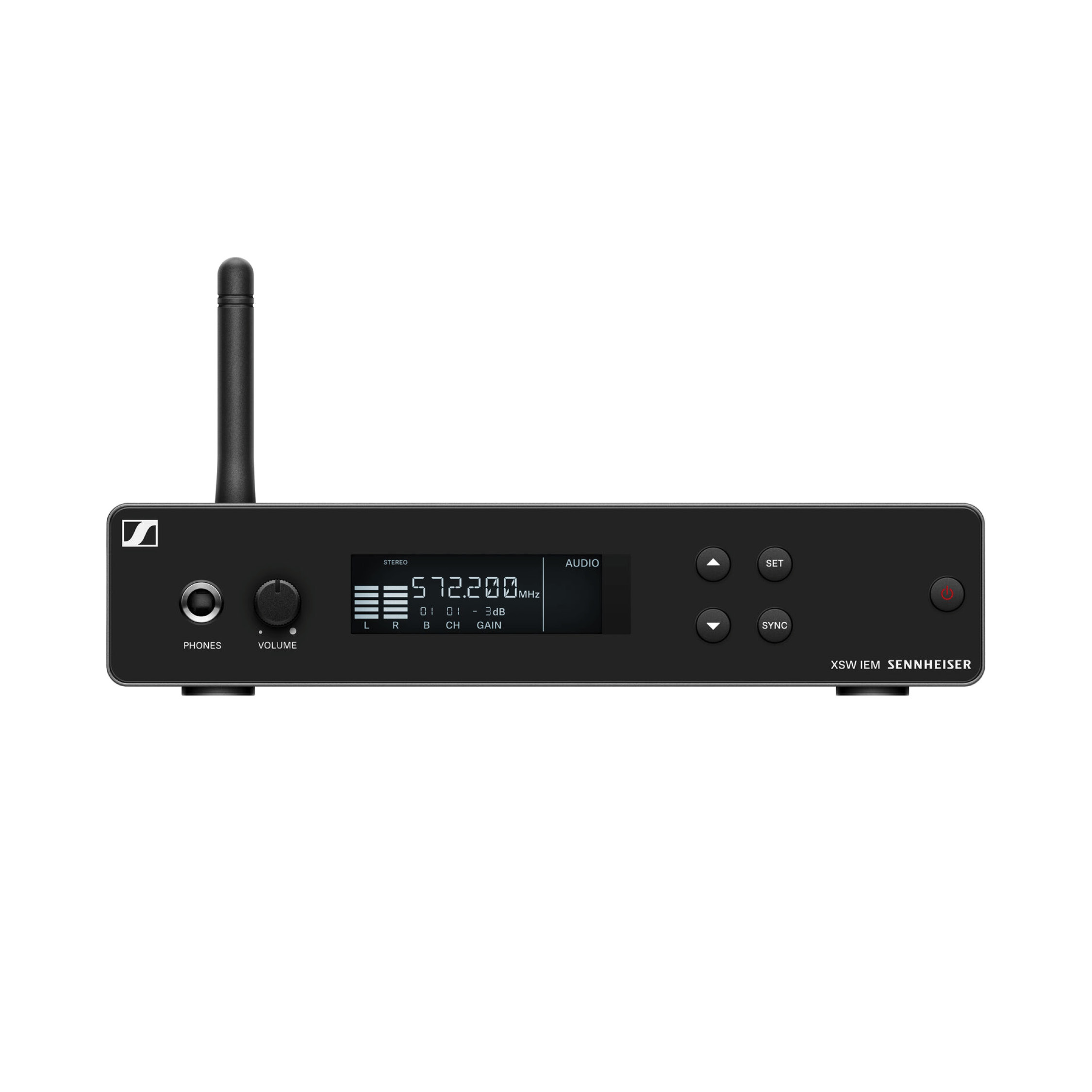

Transmitter
Frequency Band: A: 476 to 500 MHz
Wireless Technology: Analog, UHF
Modulation: FM Stereo
Transmitting RF Power: 30 mW
Number of RF Channels: 960
Switching Bandwidth: 24 MHz
Frequency Step Size: 25 kHz
Frequency Banks: 8 Banks with 12 Aligned and Precalculated Frequencies Each
Frequency Scanning: Manual
Max Transmitters per Band: 12
Max Operating Range: 330' / 100 m (Line of Sight)
Nominal/Peak Deviation: ±15 kHz / ±24 kHz
Antenna Output: BNC Socket, 50 Ohms
Frequency Response: 45 Hz to 15 kHz
Inputs: L + Mono / Right: 2 x XLR-1/4" / 6.3 mm Jack Combo Socket, Electronically Balanced
Output: 1/4" / 6.3 mm TRS, Headphones Out
Total Harmonic Distortion (THD): <0.9%
Signal-to-Noise Ratio: ≥88 dB, at Nominal Load and Peak Deviation
Power Input Rating: +12 VDC
Current Consumption: Approximately 400 mA
Housing: Metal
Temperature Range: 32 to 104°F / 0 to 40°C
Dimensions: Approximately 7.9 x 5 x 1.7" / 200 x 128 x 42 mm
Weight: Approximately 24.7 oz / 700 g

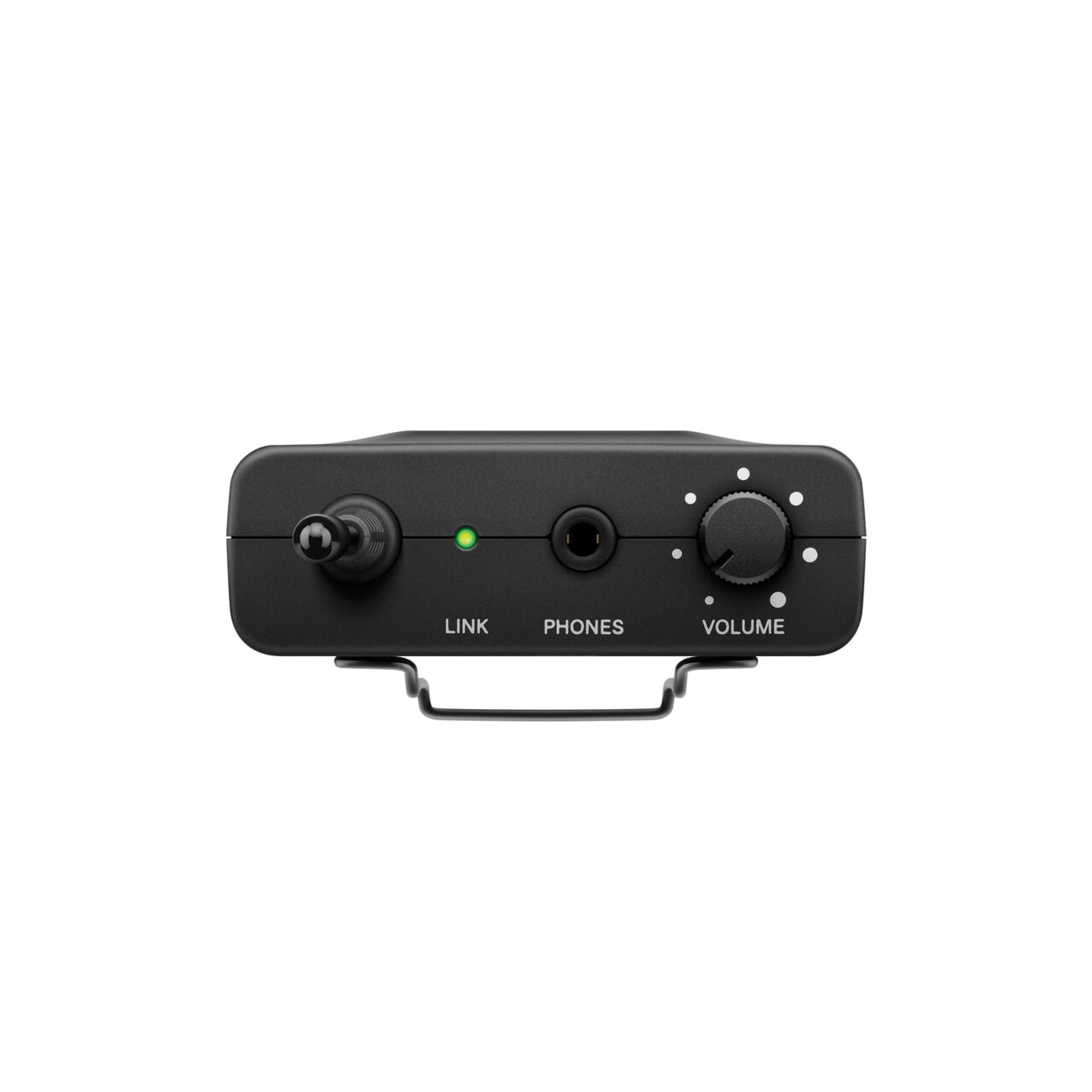

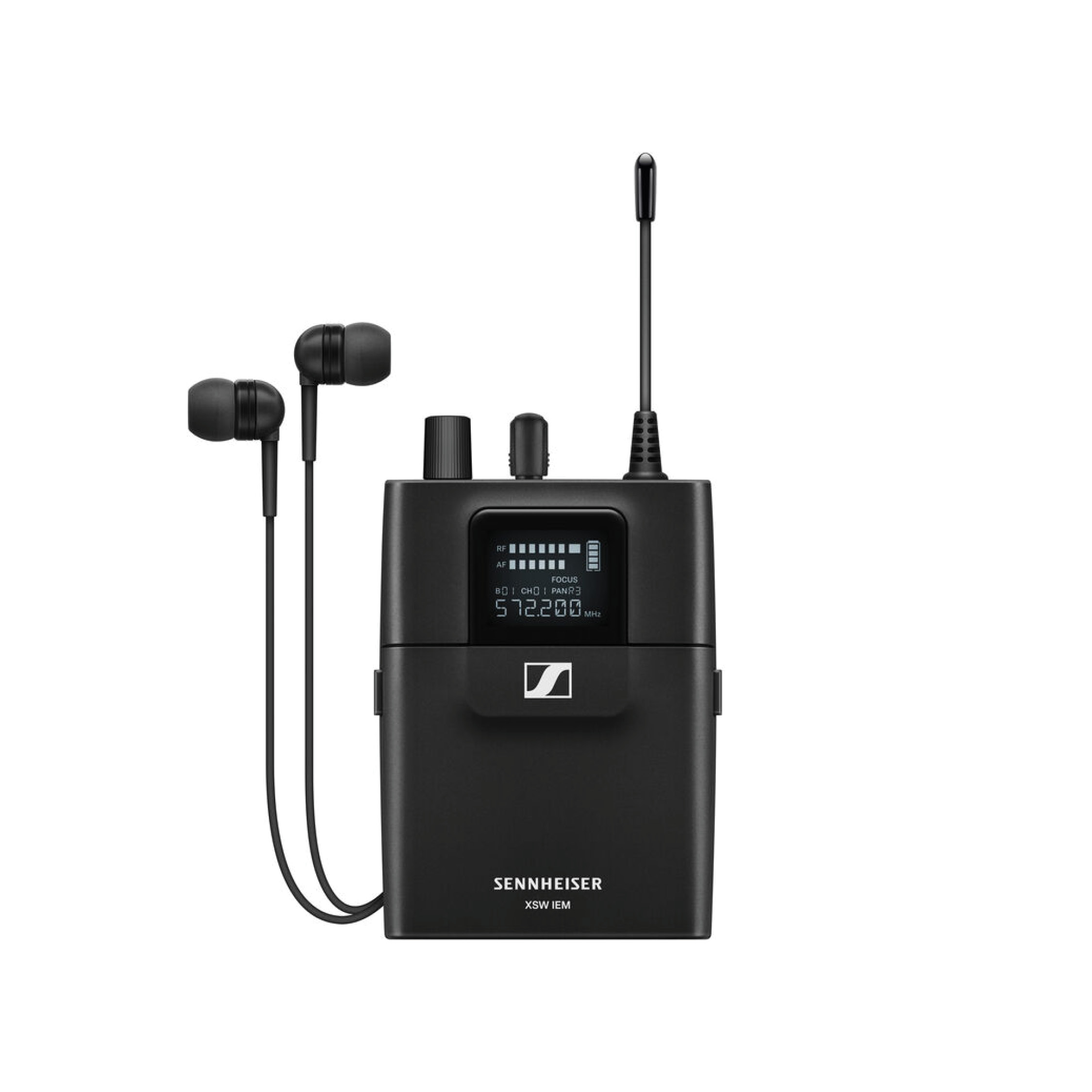

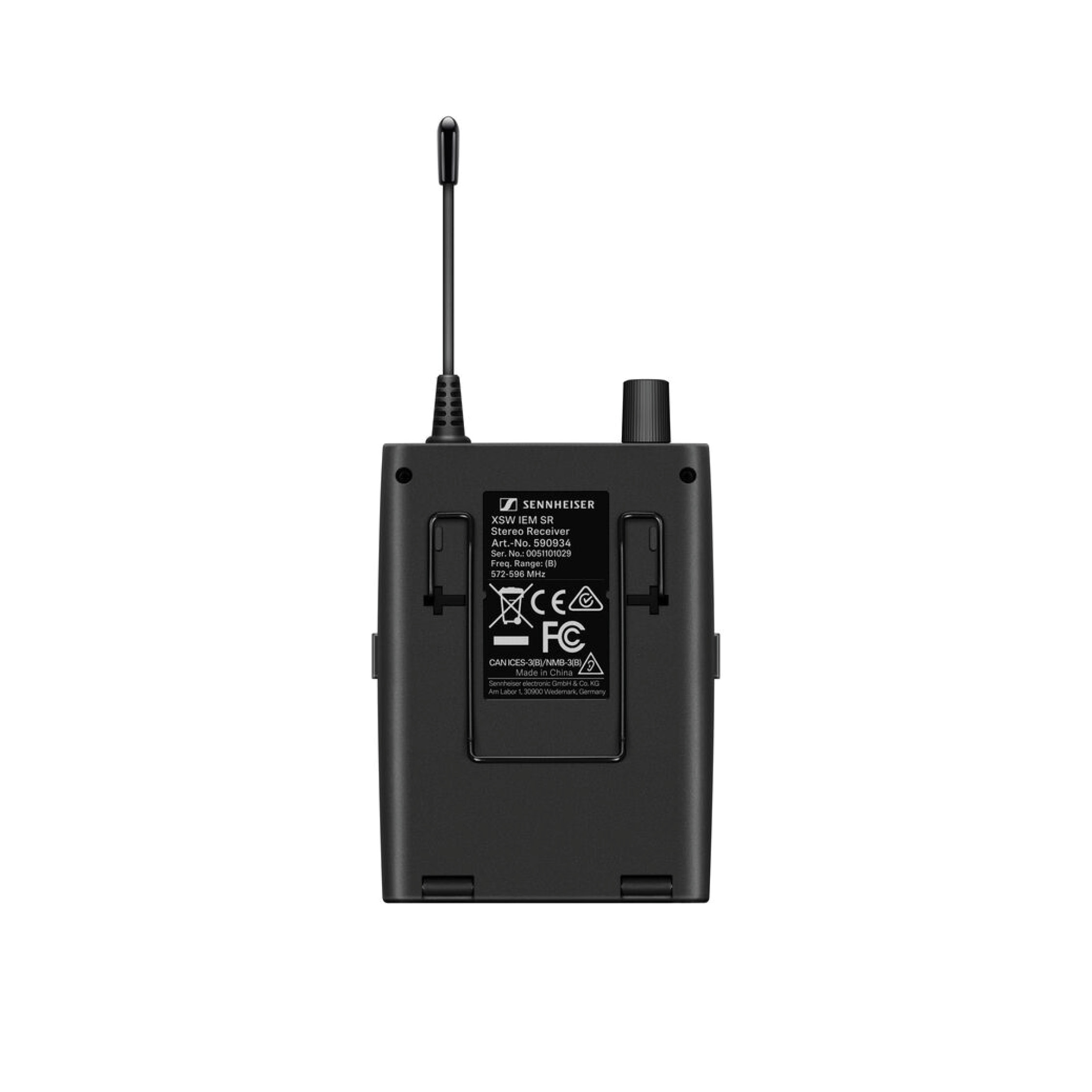

Receiver
Modulation: Wideband, Stereo FM
Frequency Band: A: 476 to 500 MHz
Switching Bandwidth: Up to 24 MHz
Sync Method: IR
Nominal/Peak Deviation: ±15 kHz / ±24 kHz
Squelch: 10 µV, Fixed
Signal-to-Noise Ratio: ≥88 dB, 1 mV, Peak Deviation
Total Harmonic Distortion (THD): ≤ 1%
Output Level: 2 x 1.25 Veff at 16 Ohms
Equalization: High Boost EQ: +10 dB at 13 kHz
Limiter: -10 dB
Frequency Response: 45 Hz to 15 kHz
Crosstalk: Typically 45 dB (50 Hz to 10 kHz)
Power Supply: 2 x AA Batteries, 1.5 V
Nominal Voltage: 3 V
Housing: Pla stic
Operating Time: Approximately 6 Hours, Depending on Volume Level
Temperature Range: 32 to 104°F / 0 to 40°C
Dimensions: 3.7 x 2.8 x 1" / 95 x 70 x 26 mm
Weight: 3.9 oz / 110 g, Including Batteries
Earphones
Transducer: Dynamic
Frequency Response: 40 Hz to 20 kHz
SPL: 106 dB, (1 kHz, 1 mW)
Nominal Impedance: 6 Ohms
Cable Length: 4.6' / 1.4 m
Connector: 1/8" / 3.5 mm TRS, Stereo, Gold-Plated
Temperature Range: 23 to 122°F / -5 to 50°C
Packaging Info
Package Weight: 4.575 lb
Box Dimensions (LxWxH): 15.3 x 12.4 x 2.4"
