Biamp Desono EX-S10

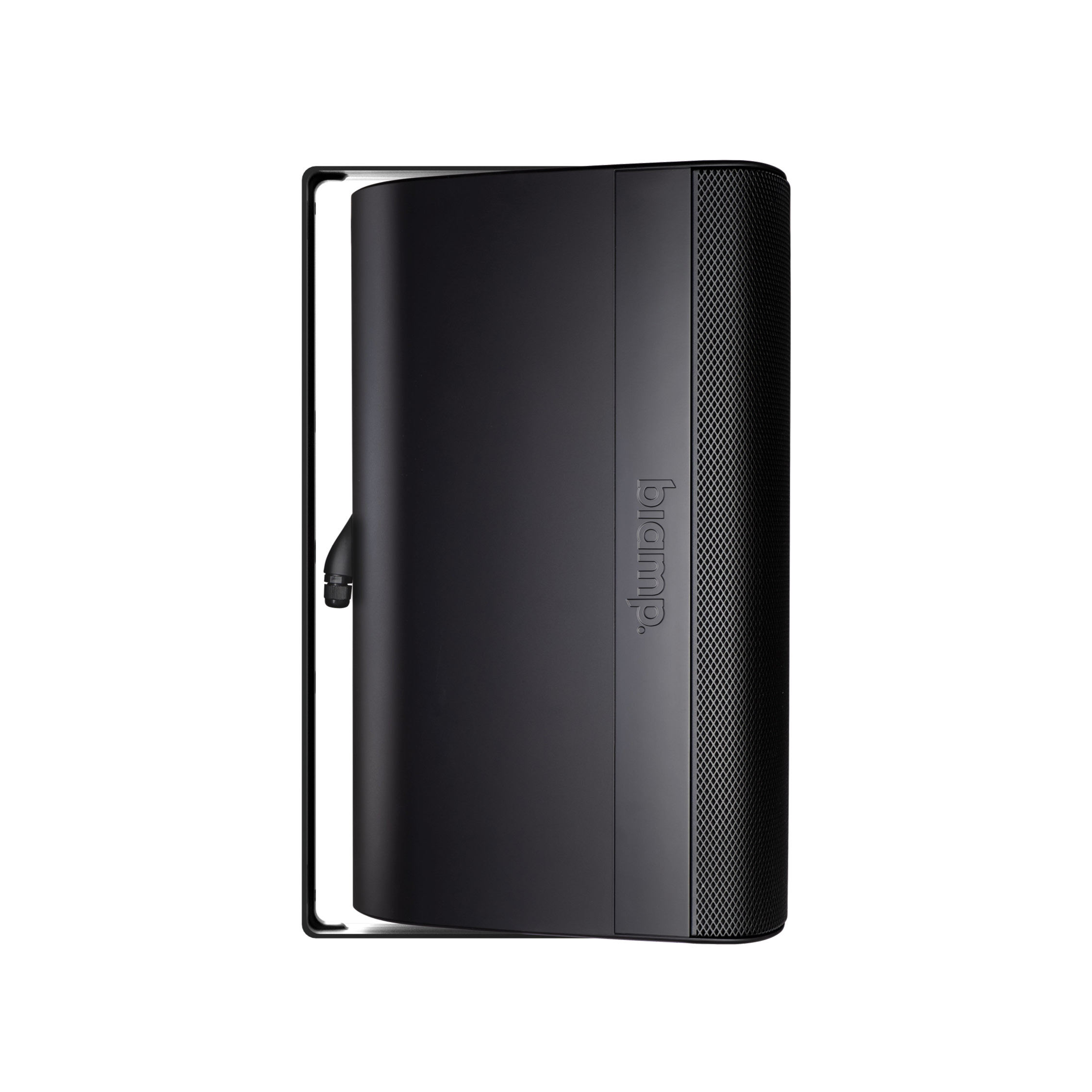

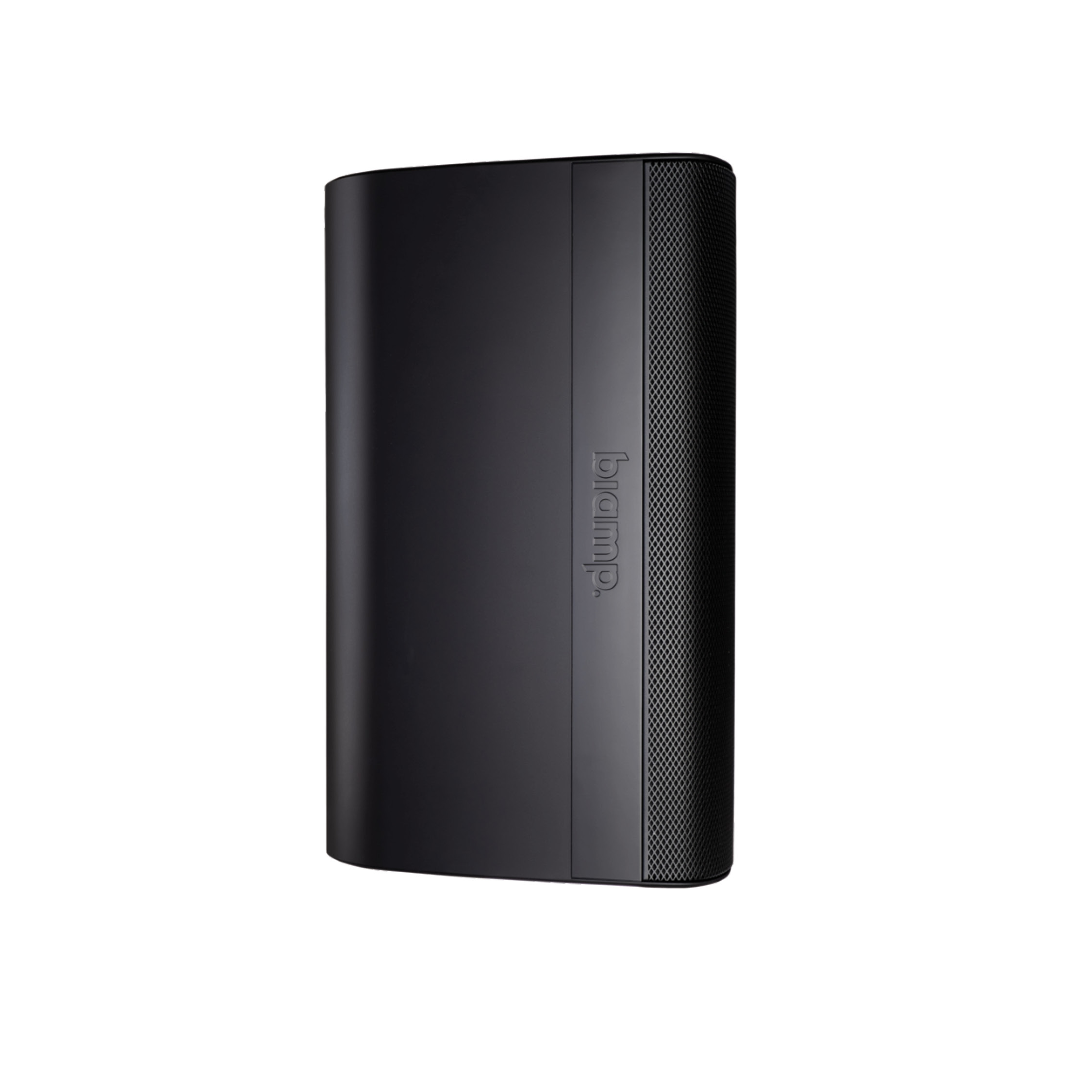

10-inch, 2-way, coaxial, surface mount, indoor/outdoor, black loudspeaker with HF compression driver; 8-ohm or 70V/100V operation; included indexing u-bracket and weather cover.
Designed for easy and fast installation, our innovative, patented ClickMount brackets provide installers with two distinct mounting options. The ClickMount pan/tilt bracket provides indexed aiming control and allows for mounting EX Series quickly in either vertical or horizontal orientation without moving the bracket position. The ClickMount U-Bracket is also available for low profile mounting or exterior use and includes the ClickPlug with and integrated gland nut for weather-resistant applications. Both brackets are theft and tamper resistant.
GENERAL
Height: 20.8 inches (529 mm)
Width: 12.2 inches (310 mm)
Depth: 12.3 inches (312 mm)
Weight: 33.43 lbs (15.2 kg)
Finish: RAL Color: Black RAL 9017
Material:
• Grille: Powder-coated perforated Marine Grade aluminum backed with hydrophobic cloth
• Enclosure: High-impact UL94 5VB rated polycarbonate/ABS blend, painted UV resistant matte finish
• Bracket: Heavily reinforced glass-filled nylon with UV-resistant painted matte finish cover
Mounting: ClickMount pan-tilt bracket or ClickMount U-Bracket
Included Accessories:
• CMX-LG [-B,-W] - Large ClickMount Pan-tilt Bracket Kit
• EXUB-S10 [-B,-W] - EX-S10 ClickMount U-Bracket kit
Required Accessories: 48 Hz, 18 dB / oct. Butterworth high pass filter; DSP preset
Recommended Amplifiers: 300 W - 600 W, 8 Ω (49 V - 69 V)
ENVIRONMENTAL
Operating Environment: Indoor/Outdoor
POWER
Power:
• 300W Cont.
• 1200W Peak
LOUDSPEAKER
Loudspeaker Type: 2-way, 10-inch, coaxial, full-range, surface mount loudspeaker
Operating Mode: Passive with selectable low-impedance or 70 V/100 V operation
Operating Range: 48 Hz - 20 kHz
Beamwidth: 100° x 100°
Transducers:
• LF 1 x 10 inches (250 mm) treated paper cone
• HF 1 x 1.4 inches (35 mm) voice coil compression driver
Transformer:
• 70V: 120W, 60W, 30W, 15W
• 100V: 120W, 60W, 30W
Sensitivity: (1W/1m) 91 dB
Dispersion: 100° x 100°
Drivers:
• LF 1 x 10 inches
• HF 1 x 1.4 inches
AUDIO
Impedance: 8Ω
Maximum Output:
• 118 dB
• 124 dB Peak
SPL:
• Nominal Maximum SPL (Processed) @1m:
Continuous: 118 dB
Peak: 124 dB
• Rated Maximum SPL(Processed) @1m:
Continuous: 114 dB
Peak: 126 dB
CERTIFIED SOLUTIONS
Zoom: Zoom Certified
COMPLIANCE
Certifications:
• ETL listed to comply with UL 1480A
• CSA STD C22.2# 62368-1
• EN54-24
• ISO 7240-24
• IEC 62368-1
Environmental Ratings:
• IP54 per IEC 60529
• IEC 60068-2-5 (Solar Radiation)
• IEC 60068-2-11 (Salt Mist)
• IEC 60068-2-42 (SO2)
• IEC 60068-2-60 (Chlorine)
