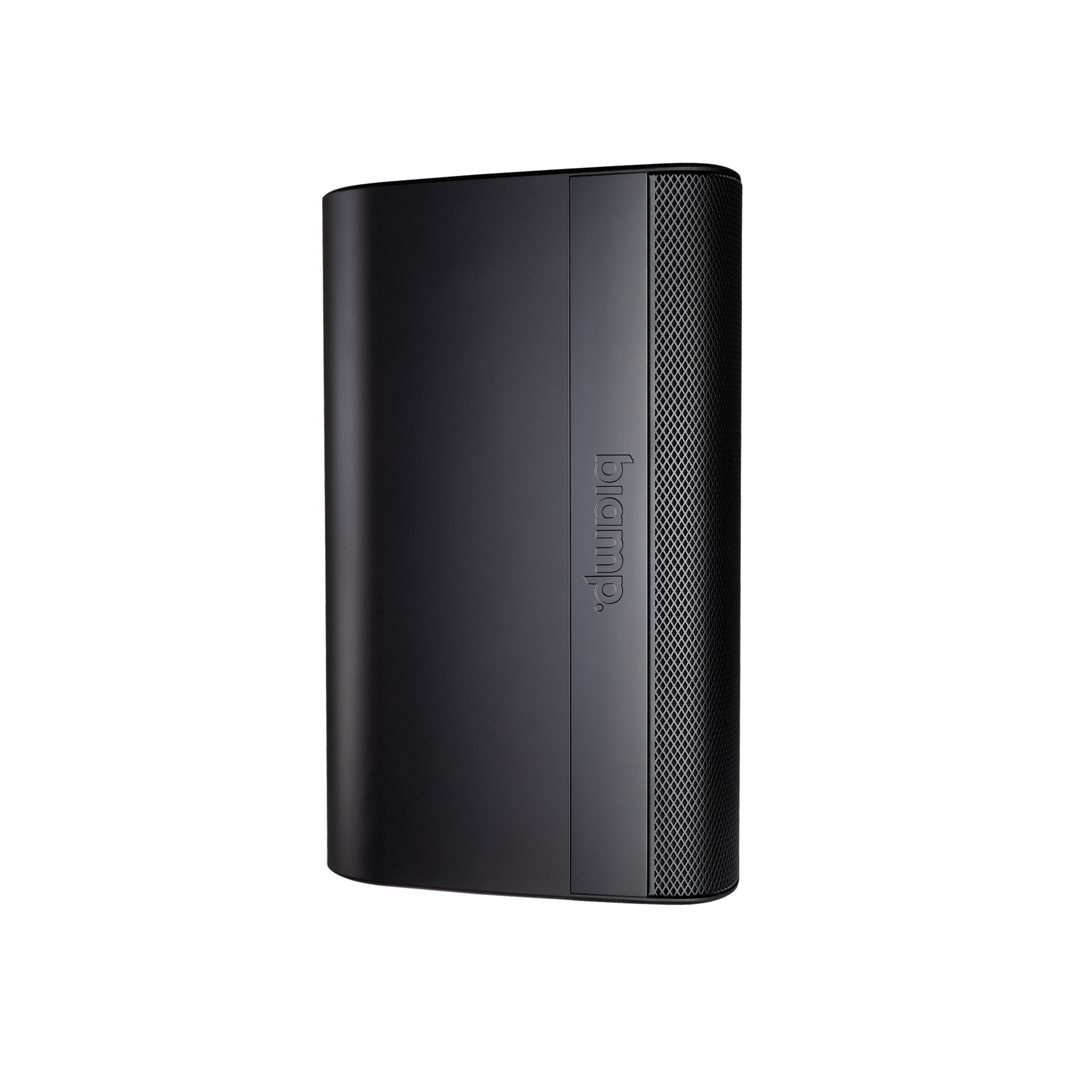

Biamp Desono EX-S8-CM-B
Deliver powerful, full-range sound with the Desono EX-S8-CM-B, a compact, stylish loudspeaker that combines exceptional clarity, versatile mounting, and reliable performance indoors or outdoors.
The Desono EX-S8-CM-B is a high-output surface-mount loudspeaker engineered for superior audio clarity and flexible installation. Designed to deliver powerful, natural sound in a sleek, compact form factor, it provides exceptional performance for both music and voice applications.
Featuring coaxially mounted high- and low-frequency drivers, the EX-S8-CM-B ensures uniform coverage and consistent tonal quality throughout the listening area. Its detailed voicing and projection make it ideal for medium to large spaces requiring precise, full-range audio — including restaurants, retail environments, educational facilities, and hospitality venues.
GENERAL
Height: 18 inches (458 mm)
Width: 10.2 inches (260 mm)
Depth: 10.4 inches (263 mm)
Weight: 24.73 lbs (11.2 kg)
Finish: RAL Color: Black RAL 9017
Material:
• Grille: Powder-coated perforated Marine Grade aluminum backed withhydrophobic cloth
• Enclosure: High-impact UL94 5VB rated polycarbonate/ABS blend, painted UV resistant matte finish
• Bracket: Heavily reinforced glass-filled nylon with UV-resistant painted matte finish cover Color: Black (RAL 9017)

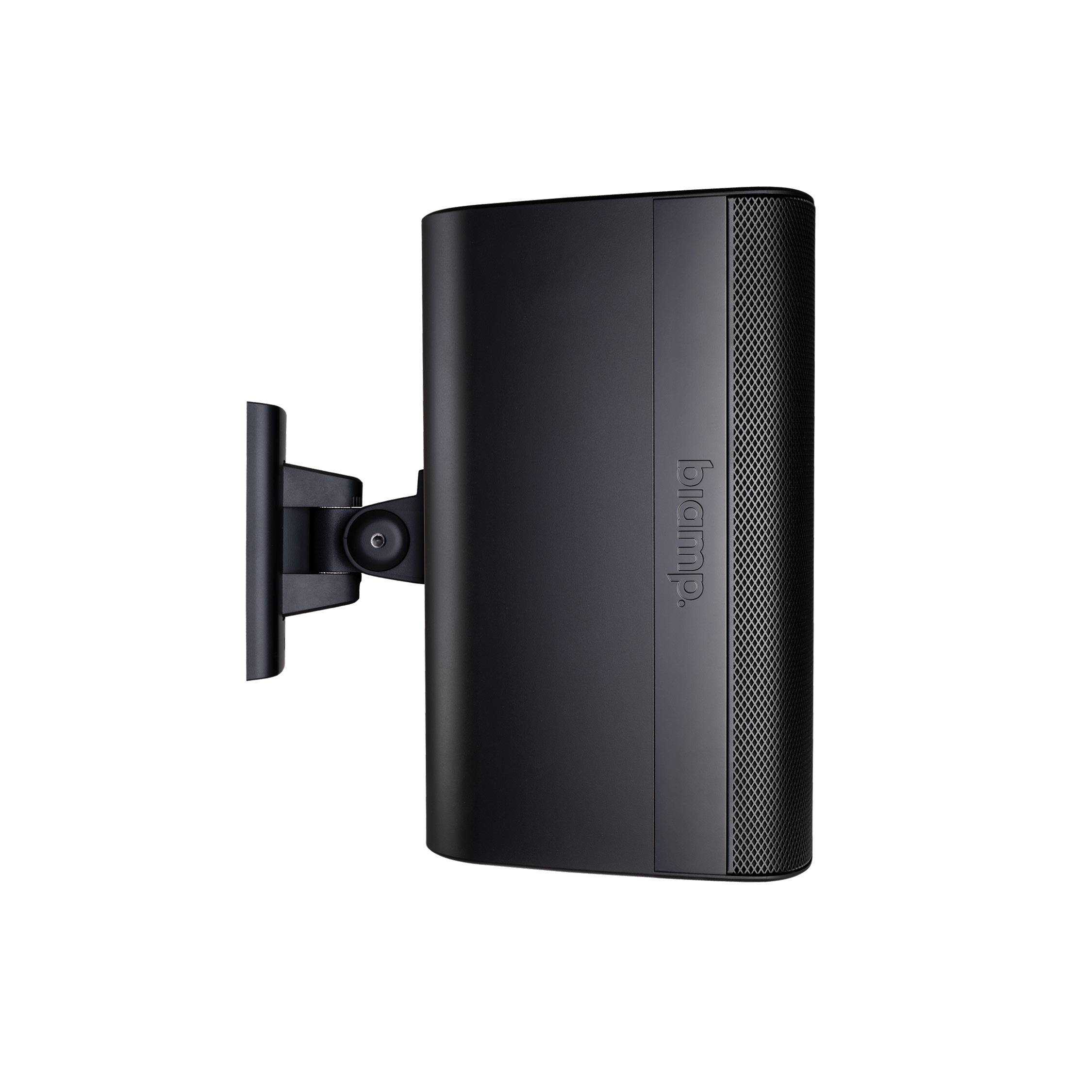

Mounting Click: Mount pan-tilt bracket
Included Accessories:
• CMX-LG [-B,-W] - Large ClickMount Pan-tilt Bracket Kit
• EXUB-S8 [-B,-W] - EX-S8 ClickMount U-Bracket kit
Required Accessories: 50 Hz, 12 dB / oct. Butterworth high pass filter; DSP preset
Recommended Amplifiers: 250 W - 500 W, 8 Ω (45 V - 63 V)
ENVIRONMENTAL
Operating Environment: Indoor/Outdoor
POWER
Power:
• 250W Cont.
• 1000W Peak
LOUDSPEAKER
Loudspeaker Type: way, 8-inch, surface mount loudspeaker
Operating Mode: Passive with selectable low-impedance or 70V/100V operation
Operating Range: 55 Hz - 20 kHz
Transducers:
• LF 1 x 8 inches (200 mm) treated paper cone
• HF 1 x 1.4 inches (35 mm) voice coil compression driver
Crossover: 1.55 kHz crossover, driver protection circuitry
Transformer:
• 70V: 80W, 40W, 20W, 10W
• 100V: 80W, 40W, 20W
Sensitivity: (1W/1m) 90 dB
Dispersion: 105° x 105°
Drivers:
• LF 1 x 8 inches
• HF 1 x 1.4 inches
AUDIO
Impedance: 8Ω
Maximum Output:
• 115 dB
• 121 dB Peak
SPL:
• Nominal Maximum SPL:
Continuous: 115 dB
Peak: 121 dB
• Rated Maximum SPL:
Continuous: 112 dB
Peak: 124 dB
CERTIFIED SOLUTIONS
Zoom: Zoom Certified
COMPLIANCE
Certifications:
• ETL listed to comply with UL 1480A
• CSA STD C22.2# 62368-1
• EN54-24
• ISO 7240-24
• IEC 62368-1
Environmental Ratings:
• IP54 per IEC 60529
• IEC 60068-2-5 (Solar Radiation)
• IEC 60068-2-11 (Salt Mist)
• IEC 60068-2-42 (SO2)
• IEC 60068-2-60 (Chlorine)
