BIAMP Apprimo TEC-X 1000 White
The Apprimo TEC-X 1000 delivers professional-grade room control through an intuitive, touch-enabled interface that seamlessly integrates with Tesira systems. Designed for flexibility and ease of use, it combines tactile precision with intelligent feedback, making it ideal for conference rooms, classrooms, and collaboration spaces.

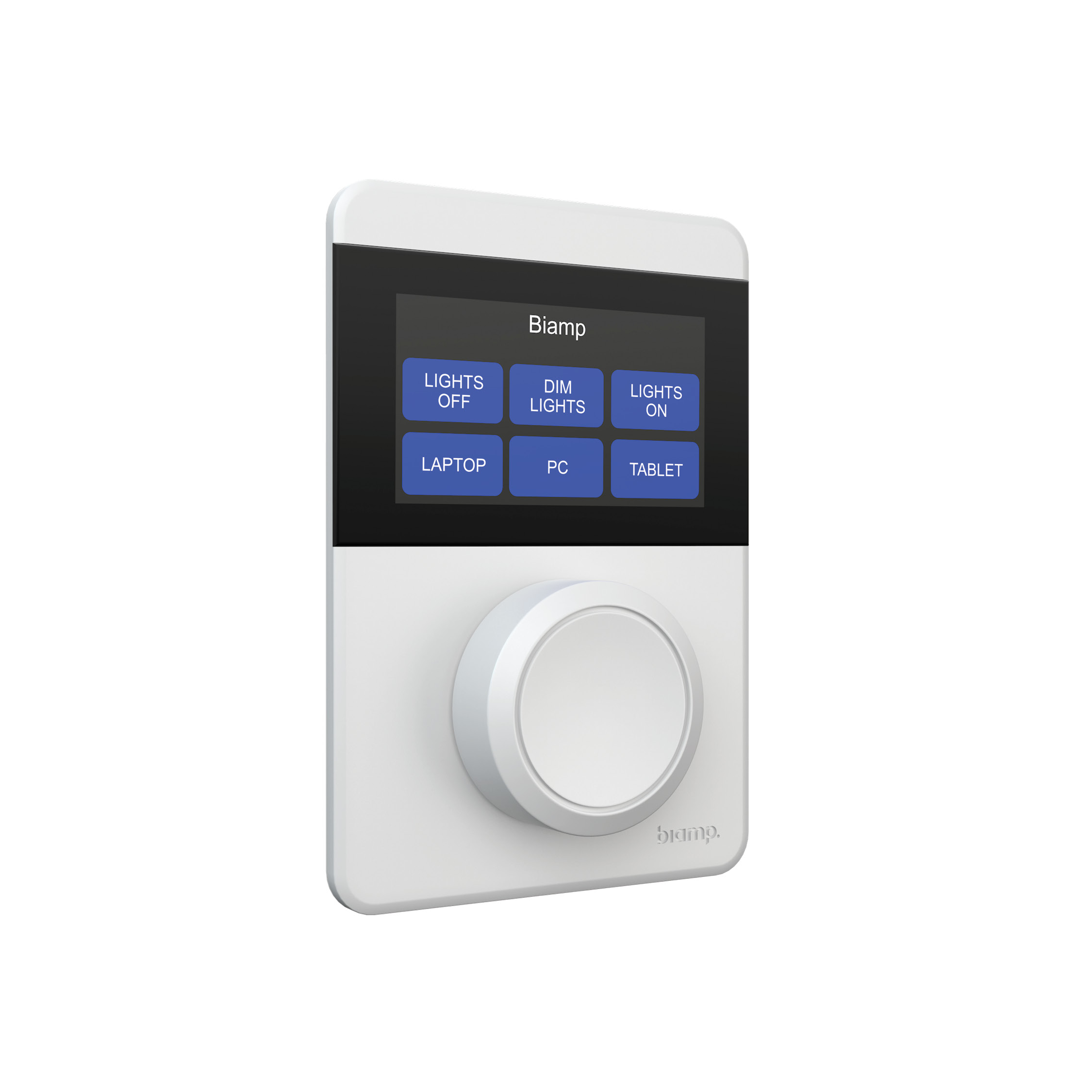

The capacitive touch LCD supports up to six customizable on-screen buttons, while a dedicated rotary encoder provides smooth, tactile control for volume or other adjustable parameters. All functions can be easily configured within Tesira design software, enabling complete customization of button layout and functionality.
GENERAL
Height: 5.1 inches (130 mm)
Width: 3.5 inches (90 mm)
Depth: 0.5 inches (13 mm)
Weight: 0.35 lbs (159 g)
Display:
• User Interface: Rotary Knob;
• Capacitive Touch Screen
• Display Type: High-Contrast Capacitive
• Touch LCD
• Display Size: 2.9” (74 mm) diagonal
• Status Indicator: RGB LED bar with adjustable brightness
ENVIRONMENTAL
Ambient Operating Temperature Range: 32 - 104° F (0 - 40° C)
Humidity: 0-95% relative humidity (non-condensing)
Altitude: 0-10,000 ft (0-3000m) MSL
POWER
Power: PoE (IEEE 802.3at Class 3, 15W)
Power Consumption: < 2W Max
NETWORK
Network Connection(s):
• RJ-45 with Ethernet cable
(Cat 5e and above)
• Daisy Chain Length: 4 devices max
CERTIFIED SOLUTIONS
TAA Compliant: TAA Compliant
COMPLIANCE
Certifications:
• FCC Part 15B (USA)
• CE marked (Europe)
• UL and C-UL listed (USA and Canada)
• RoHS Directive (Europe)
