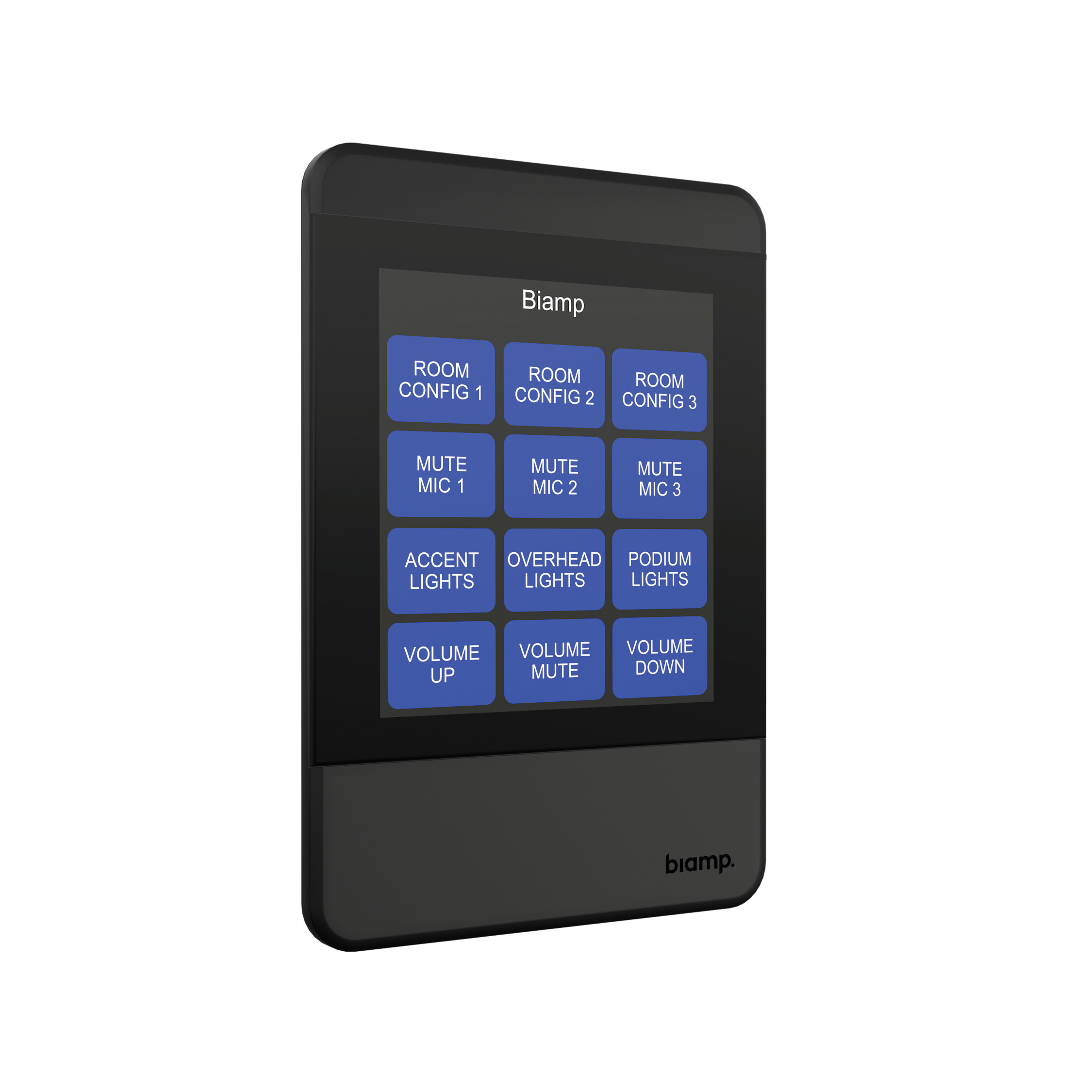

Biamp Apprimo TEC-X 2000
Networked, touch-enabled AV control pad for Tesira systems.
Distinguished by its modern design aesthetic, the Apprimo TEC-X family of audiovisual control pads provide simple, intuitive interfaces for presentation spaces and conference rooms via highly intuitive capacitive touch capabilities, delivered at the price of a keypad controller.
Equipped with an LCD, the TEC-X 2000 is PoE powered (IEEE 802.3at Class 3, 15 watts), wall mountable, and daisy chainable, which greatly reduces cabling requirements and installation time. In addition, the TEC-X 2000 supports all TTP commands and can be quickly programmed and customized within Tesira software as the needs of the room change over time, making the TEC-X a very flexible and cost-effective control solution.
GENERAL
Height: 5.1 inches (130mm)
Width: 3.5 inches (90mm)
Depth: 0.5 inches (13mm)
Weight: 0.3 lbs (136 g)
Display:
• High-Contrast Capacitive Touch LCD
• Display Size: 3.8” (96 mm) diagonal
ENVIRONMENTAL
Ambient Operating Temperature Range: 32 - 104° F (0 - 40° C)
Humidity: 0-95% relative humidity (non-condensing)
Altitude: 0-10,000 ft (0-3000m) MSL
POWER
Power: PoE (IEEE 802.3at Class 3, 15W)
Power Indicator(s): RGB LED bar with adjustable brightness
Power Consumption: < 2W Max
NETWORK
Network Connection(s): RJ-45 with Ethernet cable (Cat 5e and above)
CERTIFIED SOLUTIONS
TAA Compliant: TAA Compliant
COMPLIANCE
Certifications:
• FCC Part 15B (USA)
• CE marked (Europe)
• UL and C-UL listed (USA and Canada)
• RoHS Directive (Europe)
NOTES
Specification Notes: Daisy Chain Length: 4 devices max
