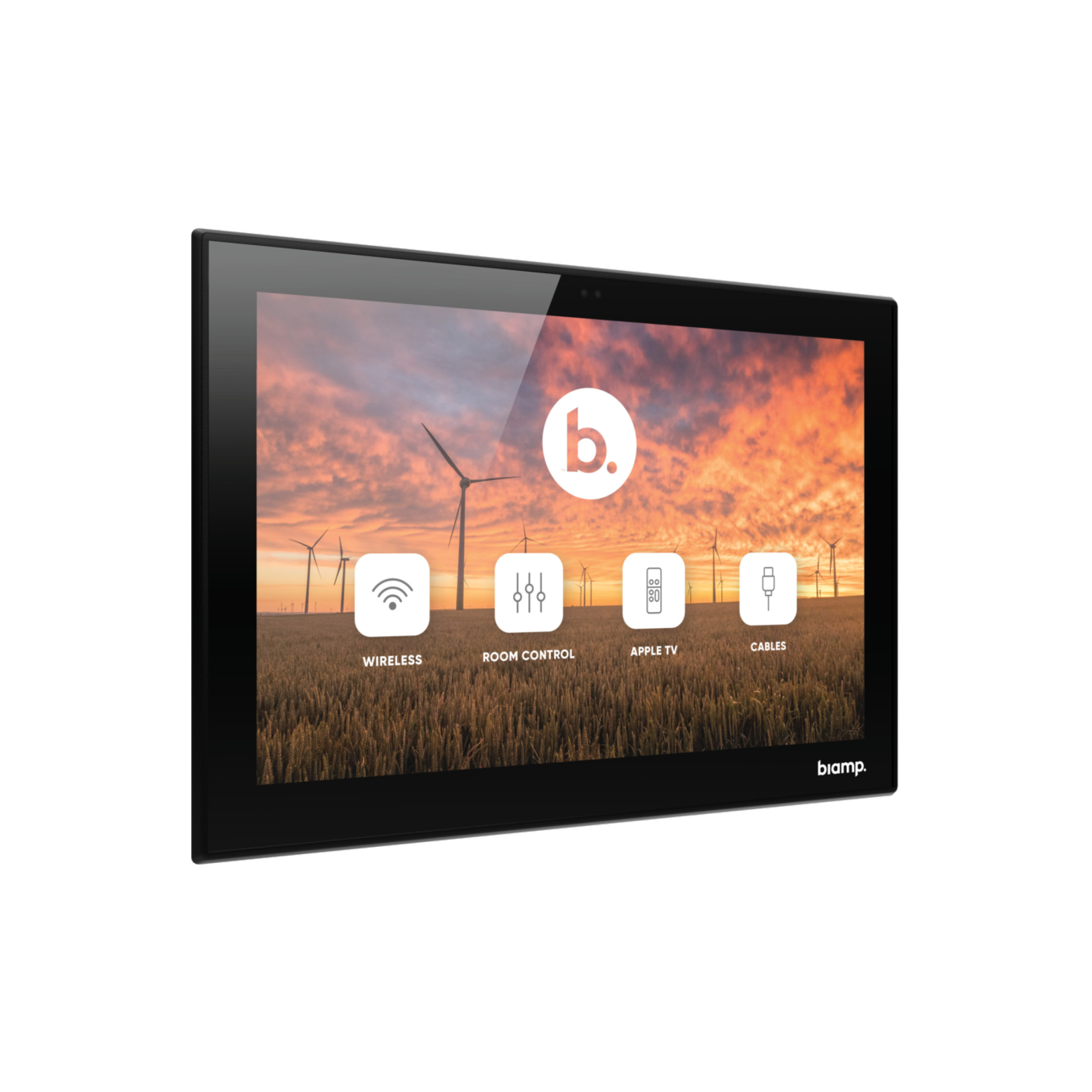

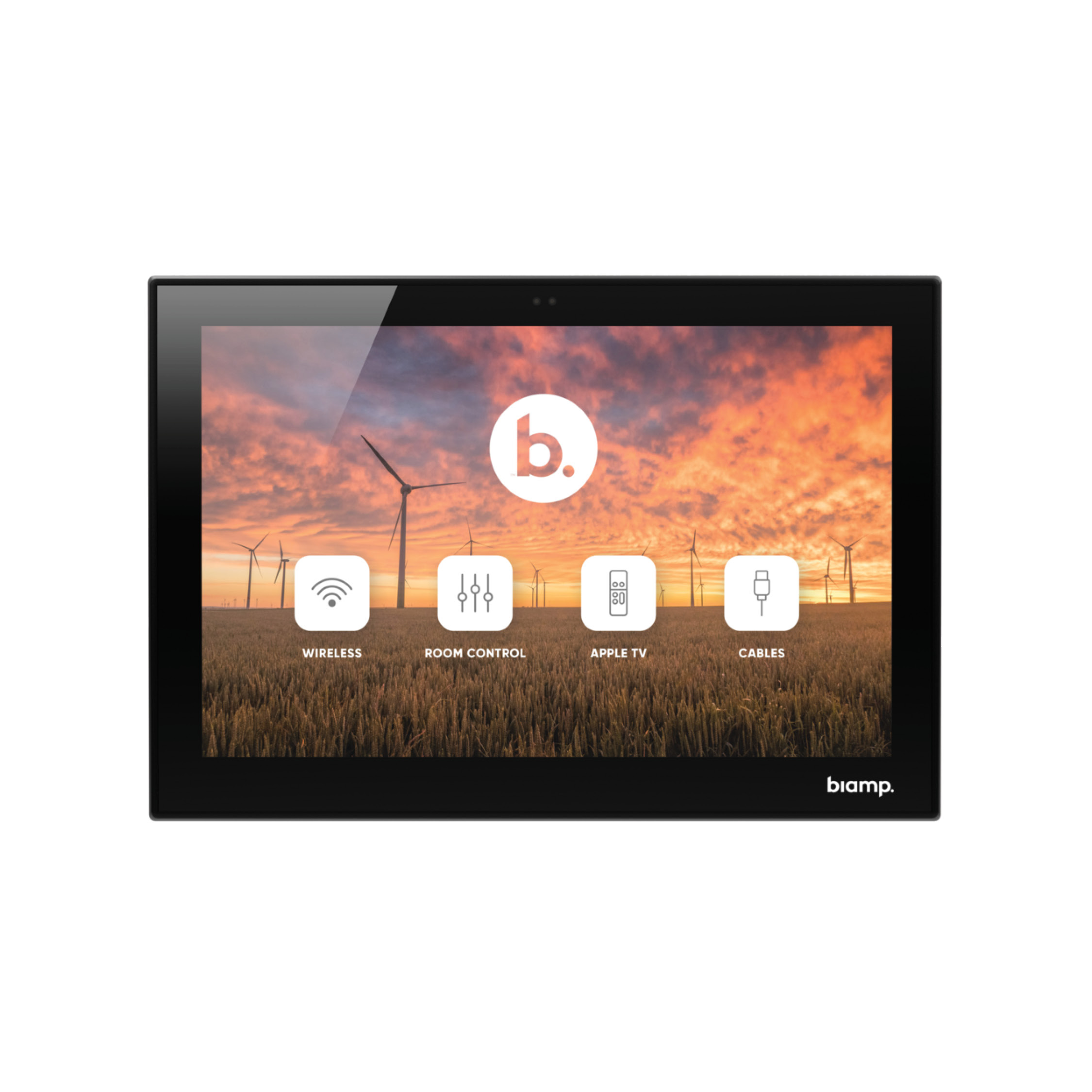

Biamp Apprimo Touch 10
The Apprimo Touch 10 is a premium touch control panel designed to deliver an intuitive and customizable user experience for professional AV systems. Its 10-inch capacitive touch display and scratch-resistant glass ensure long-lasting durability and smooth operation in any meeting space, classroom, or control environment. It can be wall-mounted in landscape (horizontal) orientation or on a tabletop with the available table stand accessory.
With Project Designer software, users can choose from a variety of pre-built interface templates and themes or create their own layouts to match unique control requirements and corporate branding. The customizable interface allows system designers to provide a consistent, professional look across installations.
GENERAL
Height: 6.67 inches (169 mm)
Width: 9.7 inches (246 mm)
Depth: 1.6 inches (41 mm)
Weight: 1.2 lbs (560 g)
Display:
• High-Contrast Capacitive Touch LCD
• Display Size: 10” (254 mm) diagonal
• Display Resolution: 1280x800
• Maximum Display Brightness: 350 nits
Included Accessories:
• Mounting bracket and screws
• Ejector Pin
• USB-OTG adapter
• Polishing cloth
ENVIRONMENTAL
Ambient Operating Temperature Range: 32 - 104° F (0 - 40° C)
Humidity: 10-90% relative humidity (non-condensing)
Altitude: 0-6,600 ft (0-2000m) MSL
POWER
Power: PoE (IEEE 802.3at Class 3, 15W)
CONFERENCING
USB: Mini USB port: USB 2.0
NETWORK
Network Connection(s): RJ-45 with Ethernet cable (Cat 5e and above)
CONTROLS & INDICATORS
Control:
• Impera Alfa II
• Impera Lima
• Impera Tango
• Impera Sierra II
Proximity Sensor: Proximity Ambient Light
Connectivity: RJ-45 with Ethernet cable (Cat 5e and above)
NOTES
Specification Notes:
Controller Compatibility:
• Impera Alfa II
• Impera Lima
• Impera Tango
• Impera Sierra II
